Acceleration/Deceleration Sensor
>>
Longitudinal Accelerometer Sensor (W/O JL4)
Longitudinal Accelerometer Sensor (W/O JL4)
Longitudinal Accelerometer Sensor (w/o JL4)

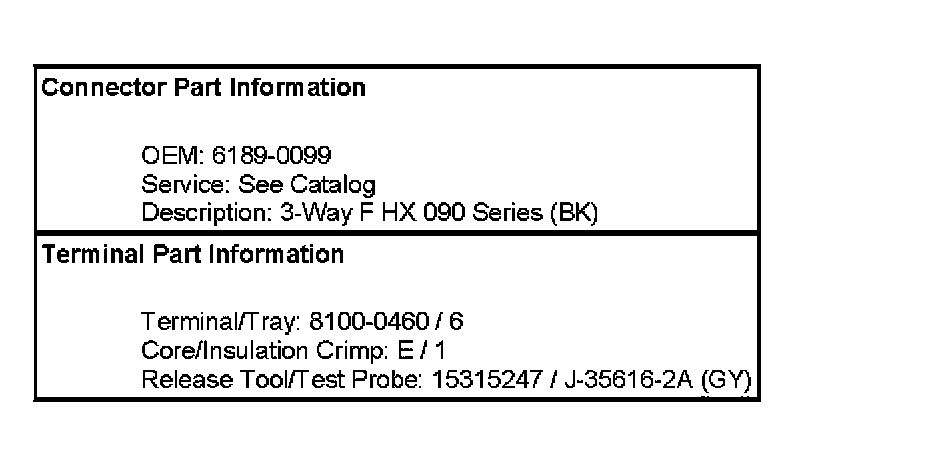

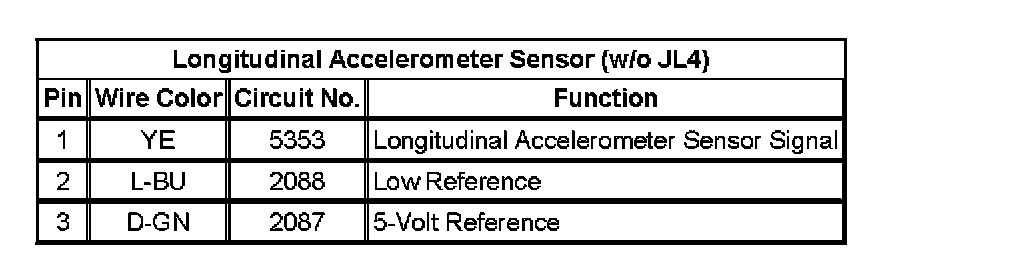

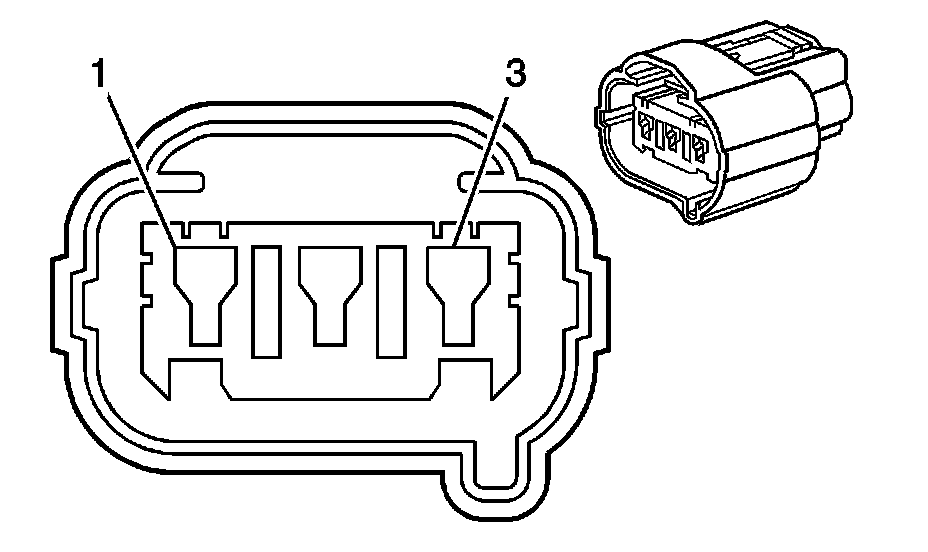

Longitudinal Accelerometer Sensor (w/o JL4):
