Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor

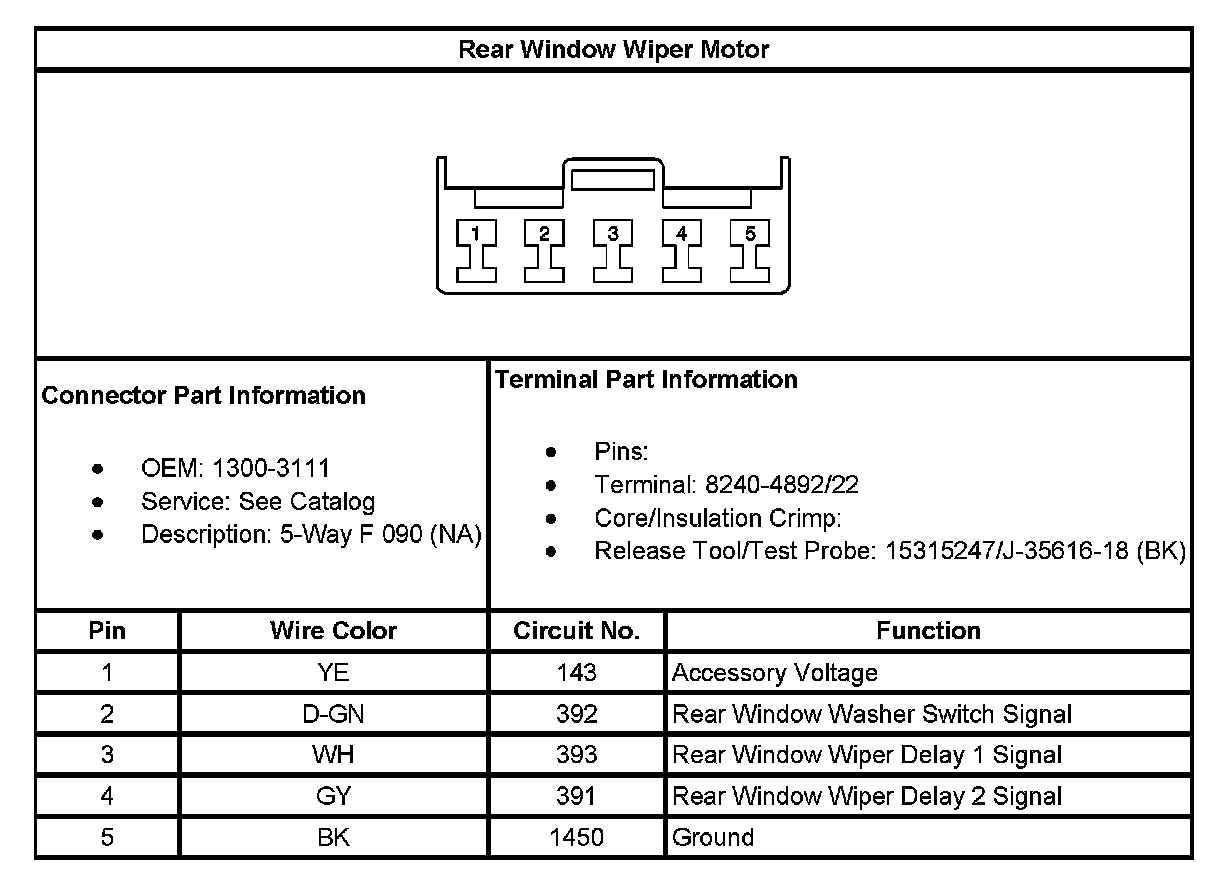

Rear Window Wiper Motor:

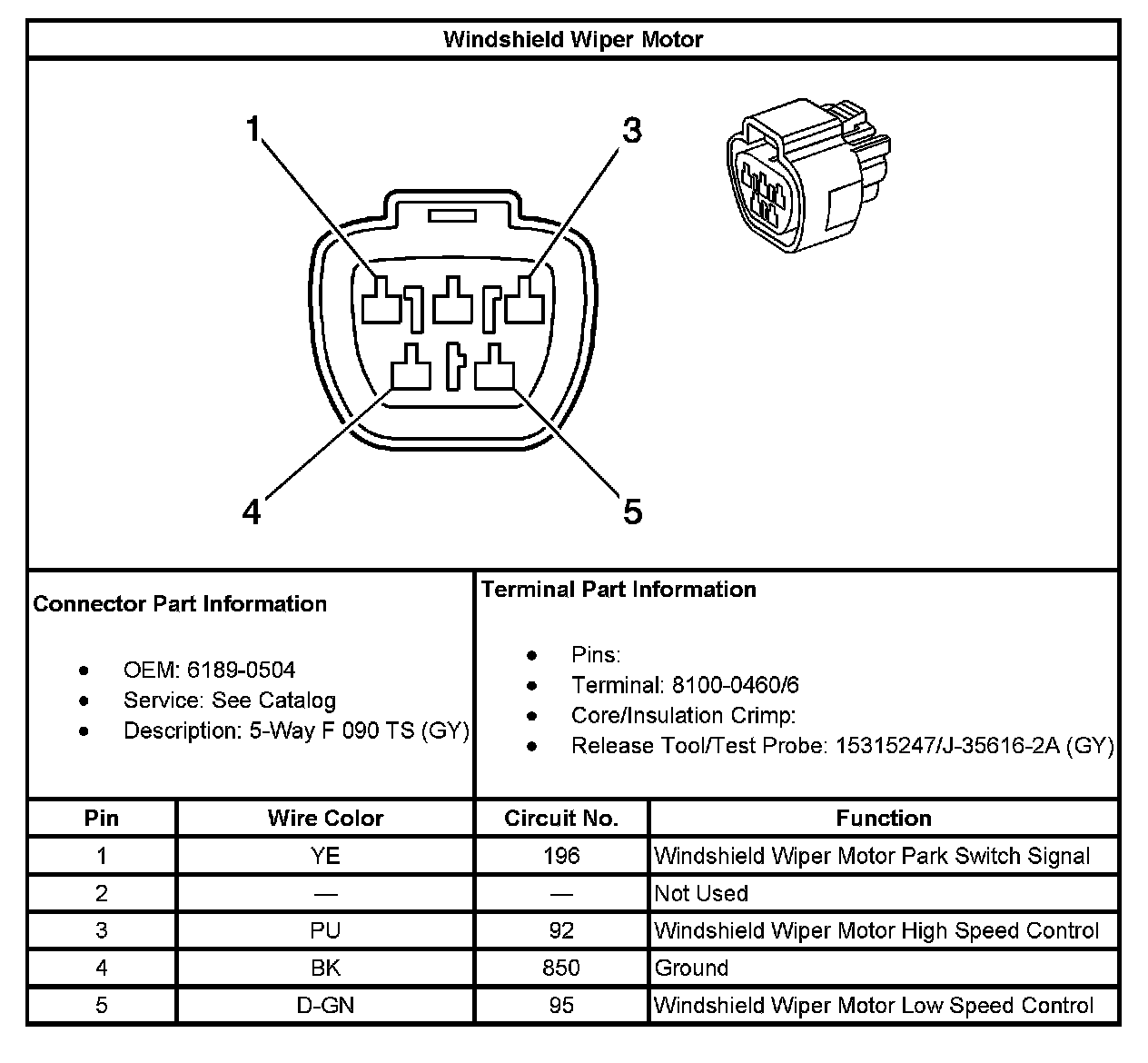

Windshield Wiper Motor:
