lemon-mirror
:
Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Solenoid
Variable Induction Control Solenoid

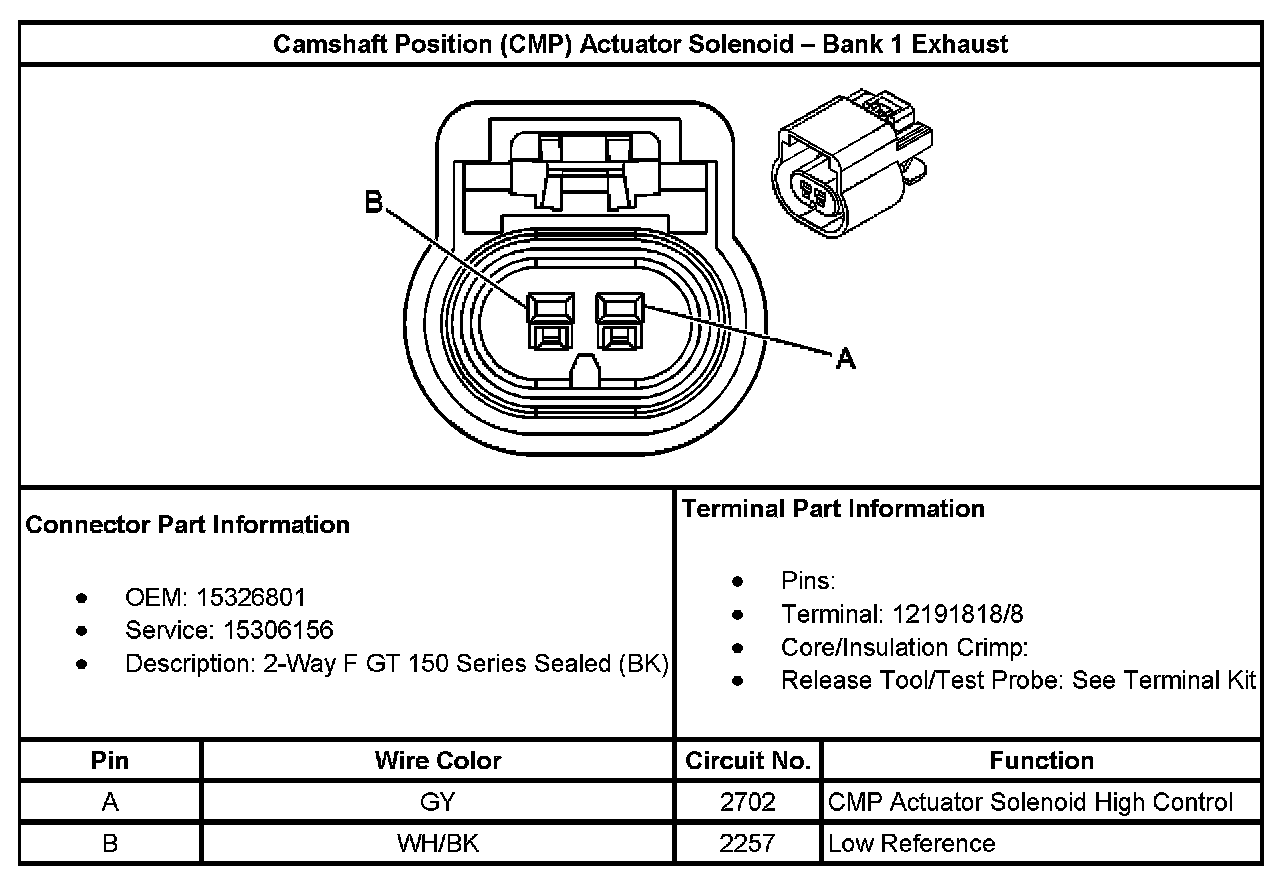

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust:
