Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
System Diagram
System Diagram
Transfer Case

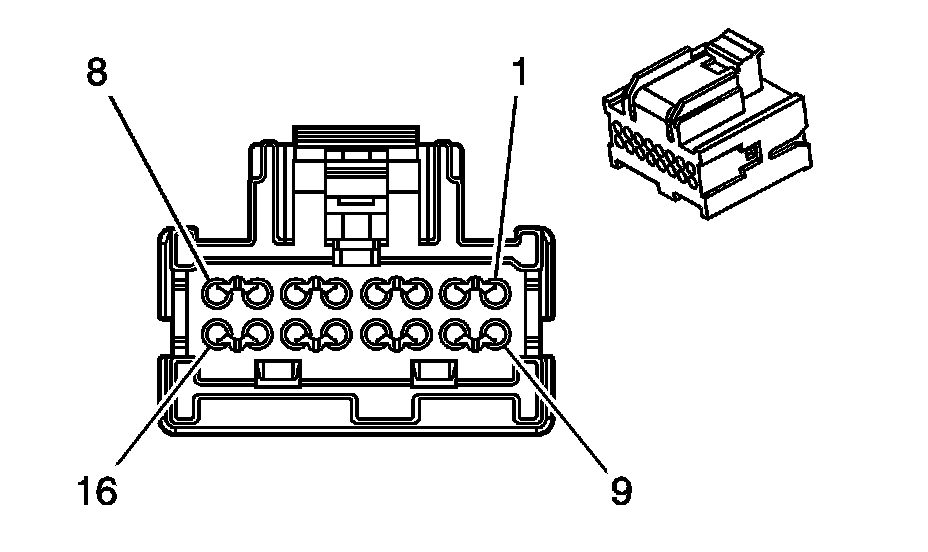

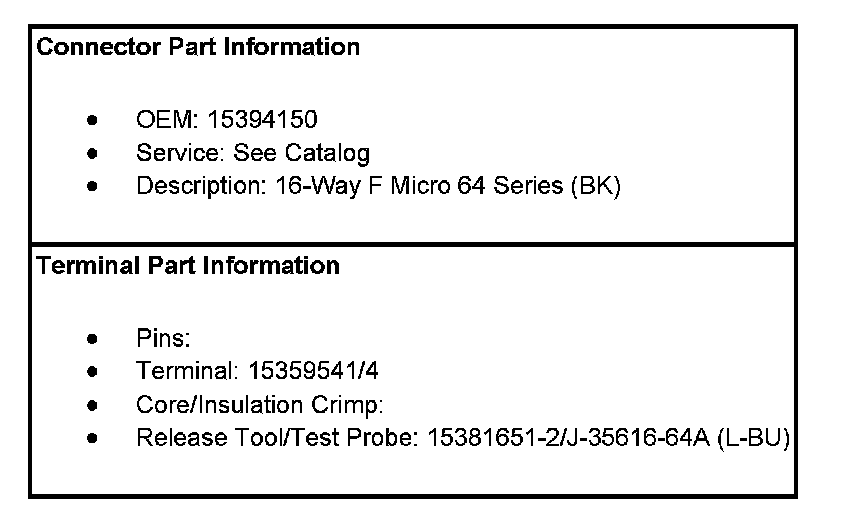

Control Connector End Views

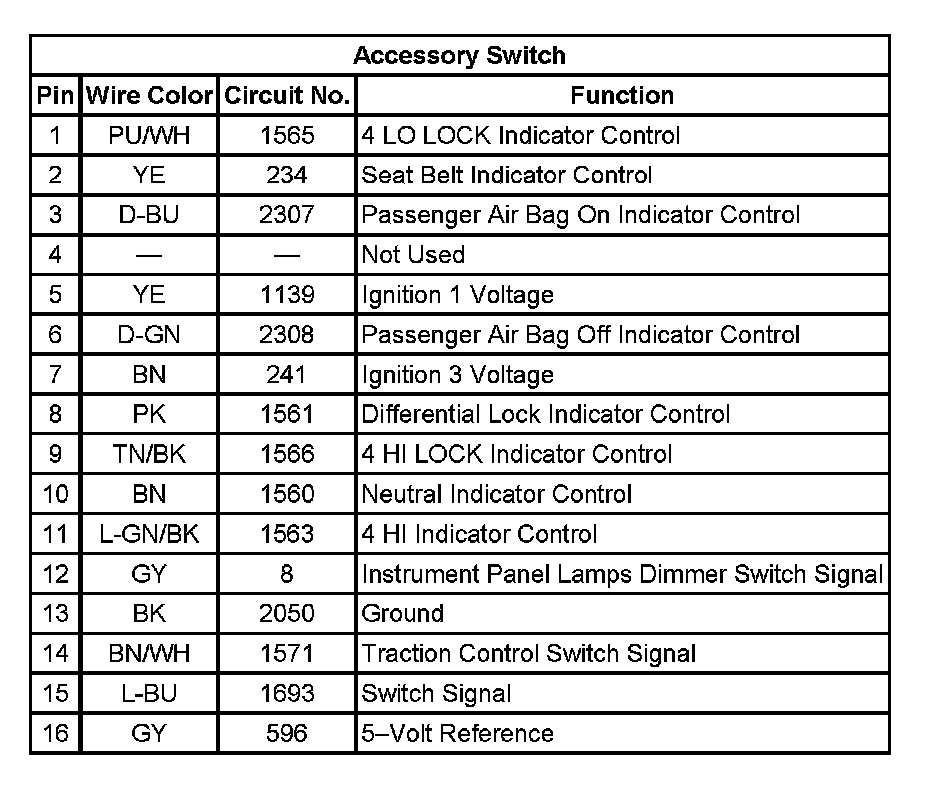

Accessory Switch:
