Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock, A/T

Shift Interlock, A/T

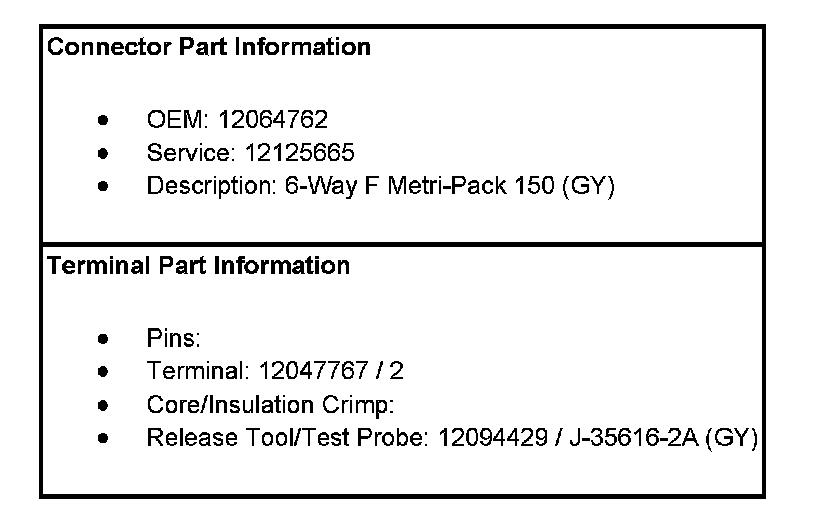

Automatic Transmission Shift Lock Control Connector End Views

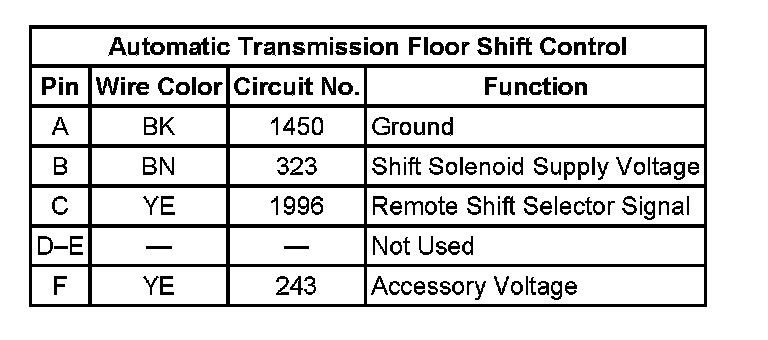

Automatic Transmission Floor Shift Control:
