Impact Sensor
>>
Inflatable Restraint Front End Sensor
Inflatable Restraint Front End Sensor

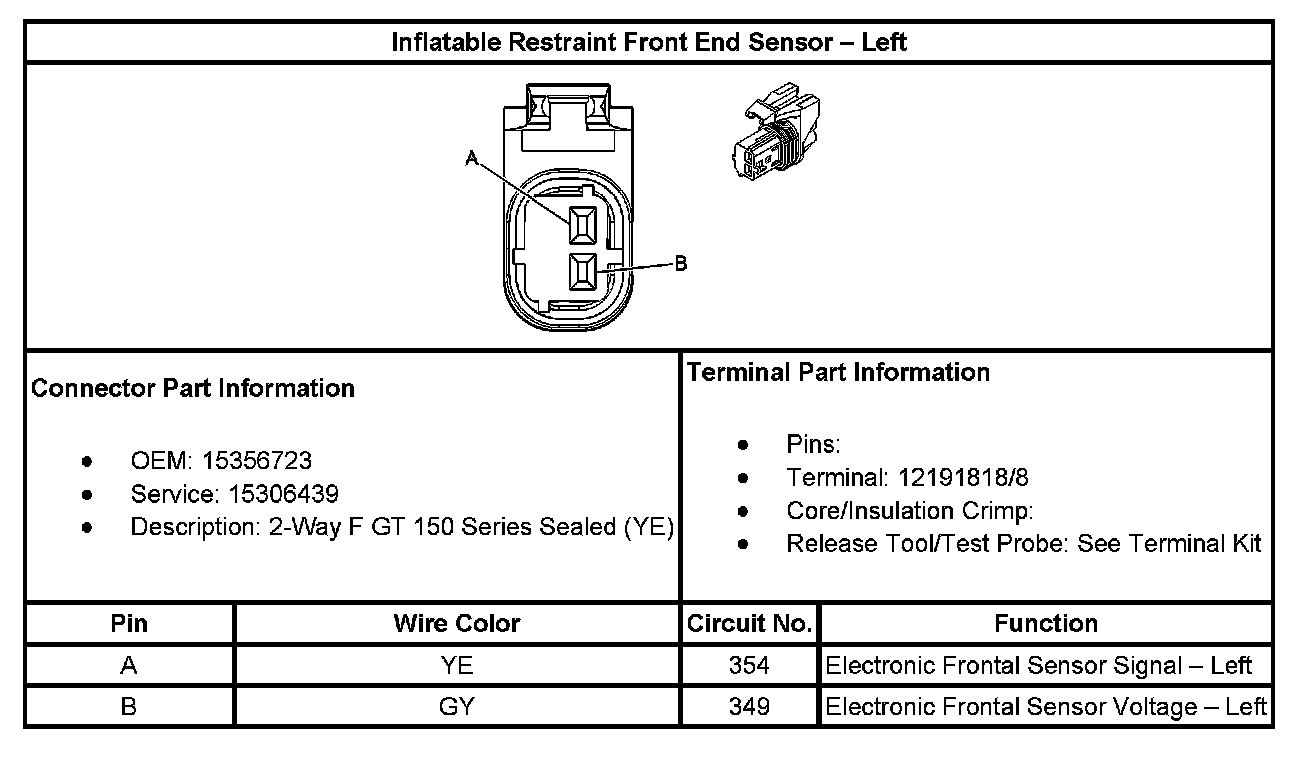

Inflatable Restraint Front End Sensor - Left:

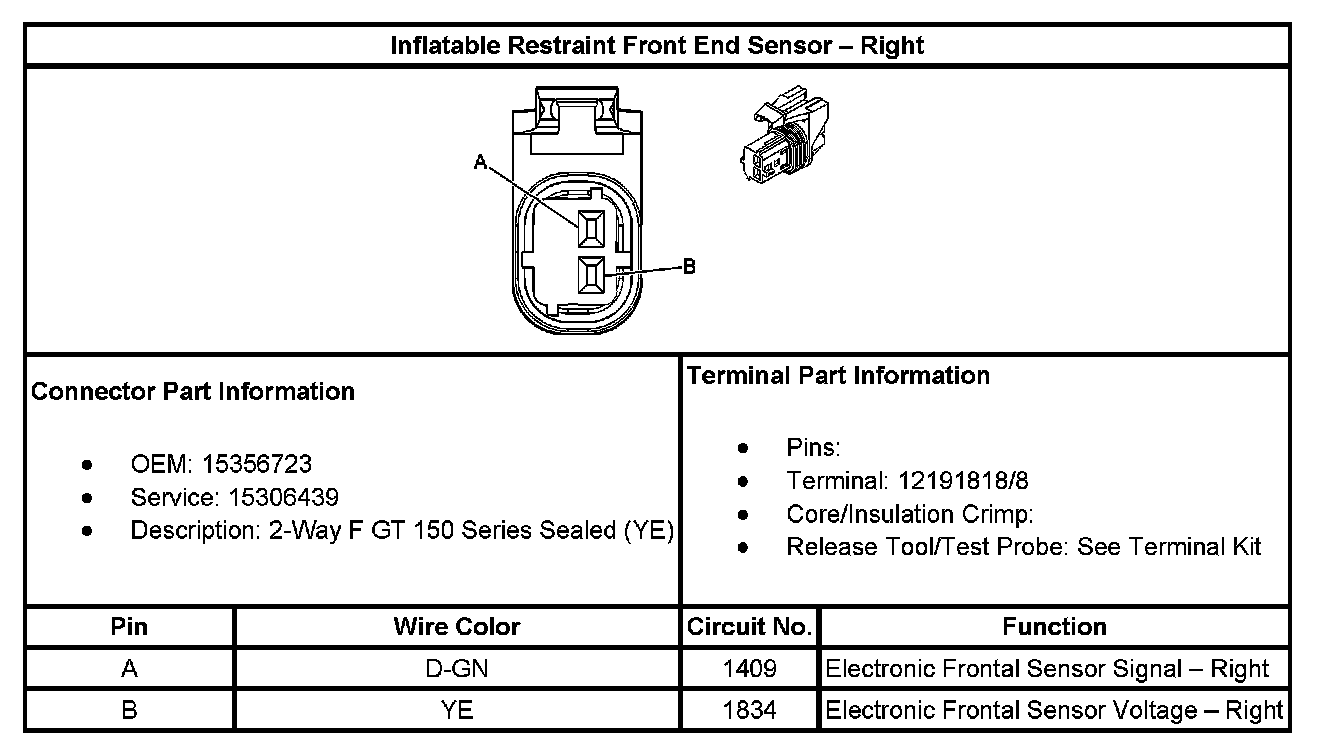

Inflatable Restraint Front End Sensor - Right:
