Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector

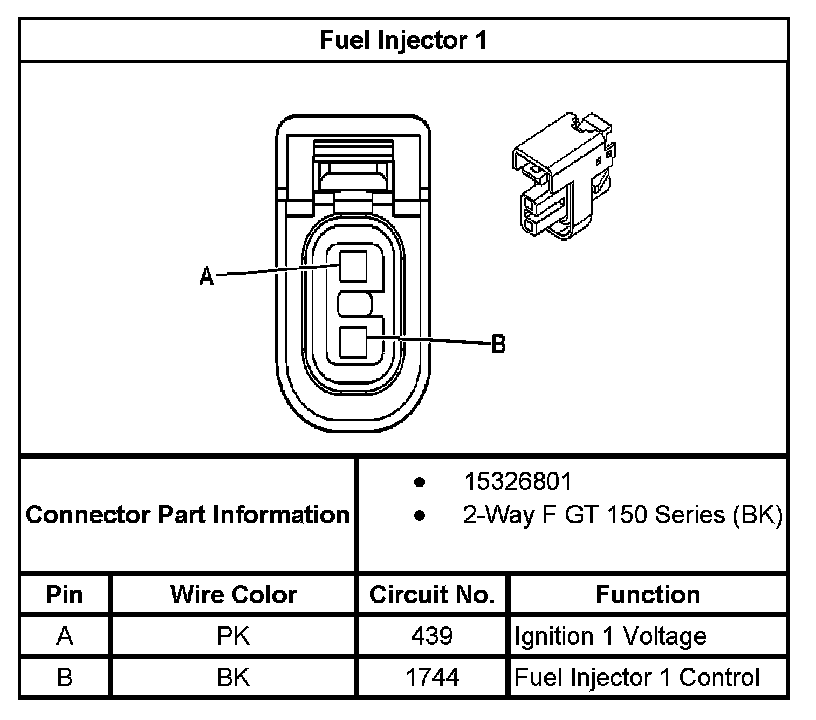

Fuel Injector 1:

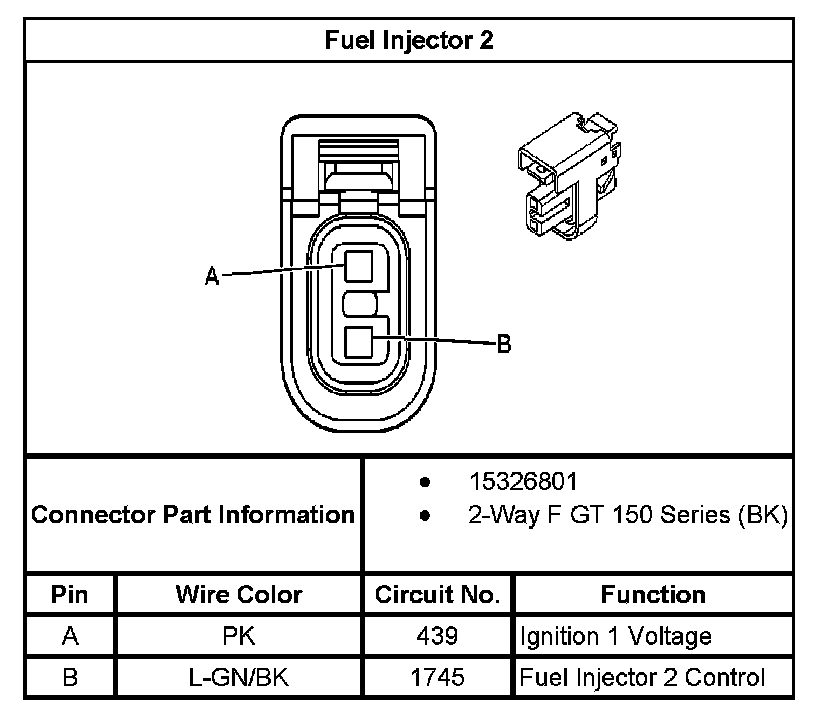

Fuel Injector 2:



Fuel Injector 3:

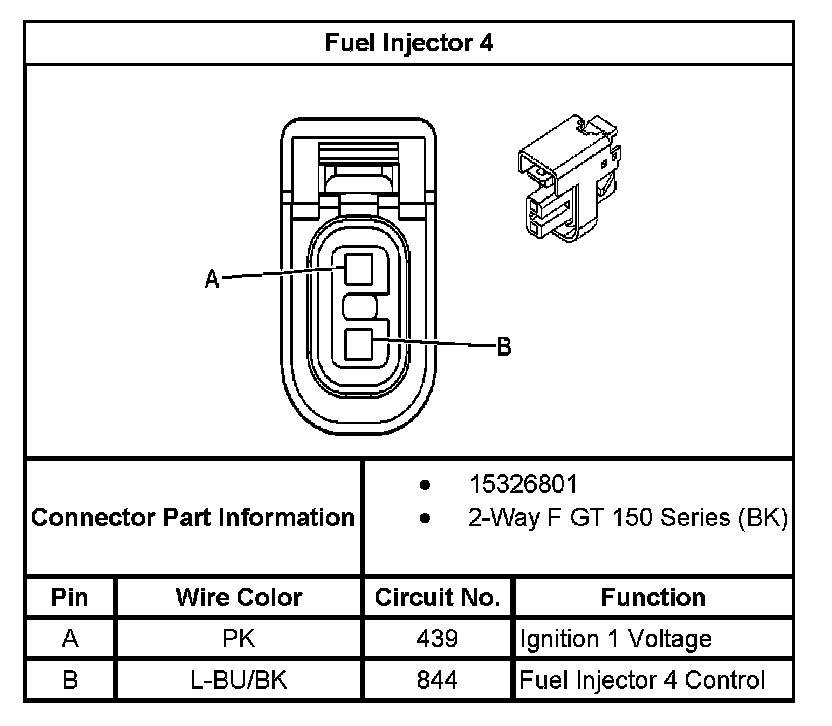

Fuel Injector 4:



Fuel Injector 5:
