Powertrain Control Module (PCM) C3 With RPO Code MA5
Powertrain Control Module (PCM) C3 With RPO Code MA5

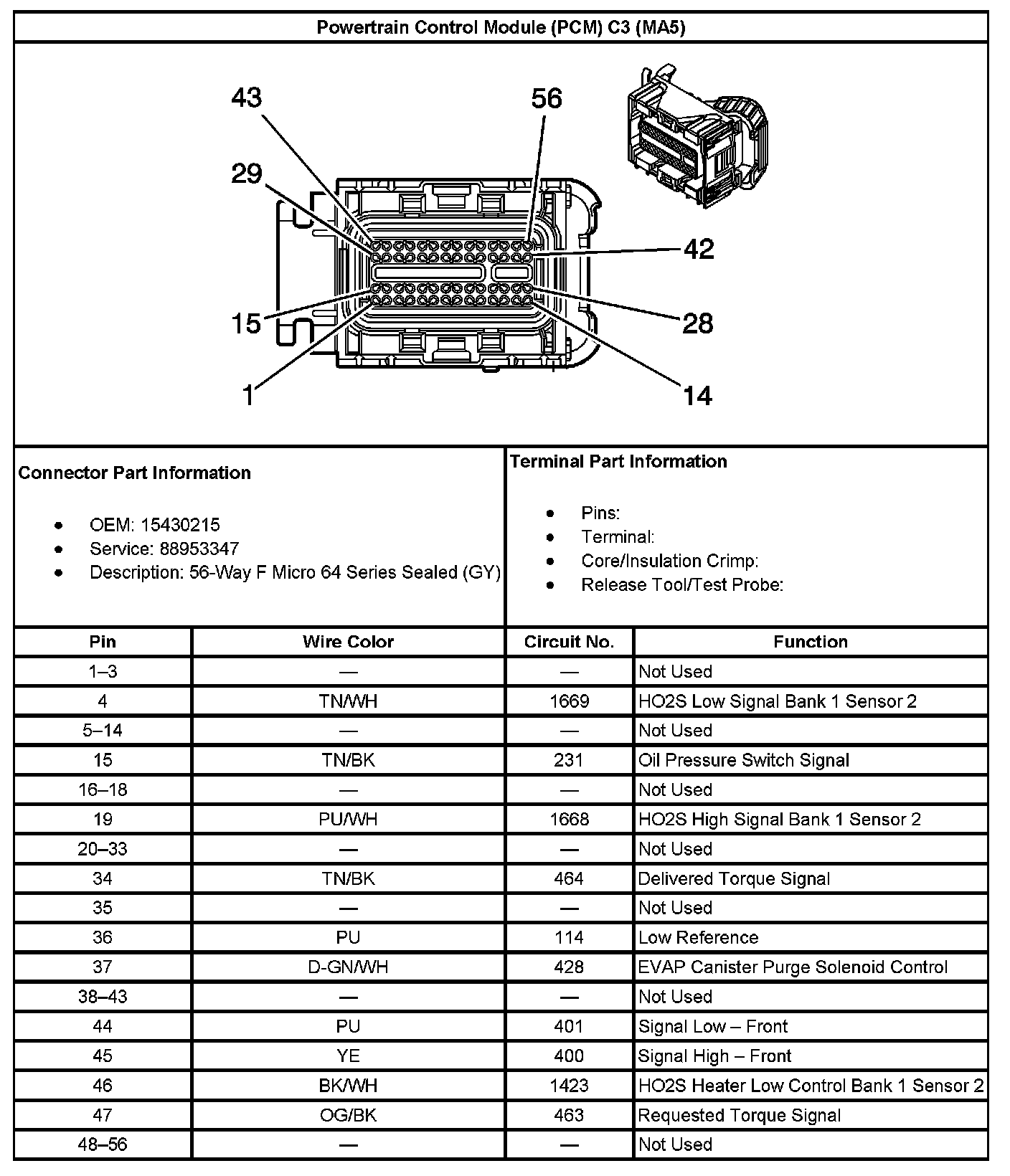

Powertrain Control Module (PCM) C3 (With RPO Code MA5):
