Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Powertrain Control Module (PCM) C3 With RPO Code M30
Powertrain Control Module (PCM) C3 With RPO Code M30

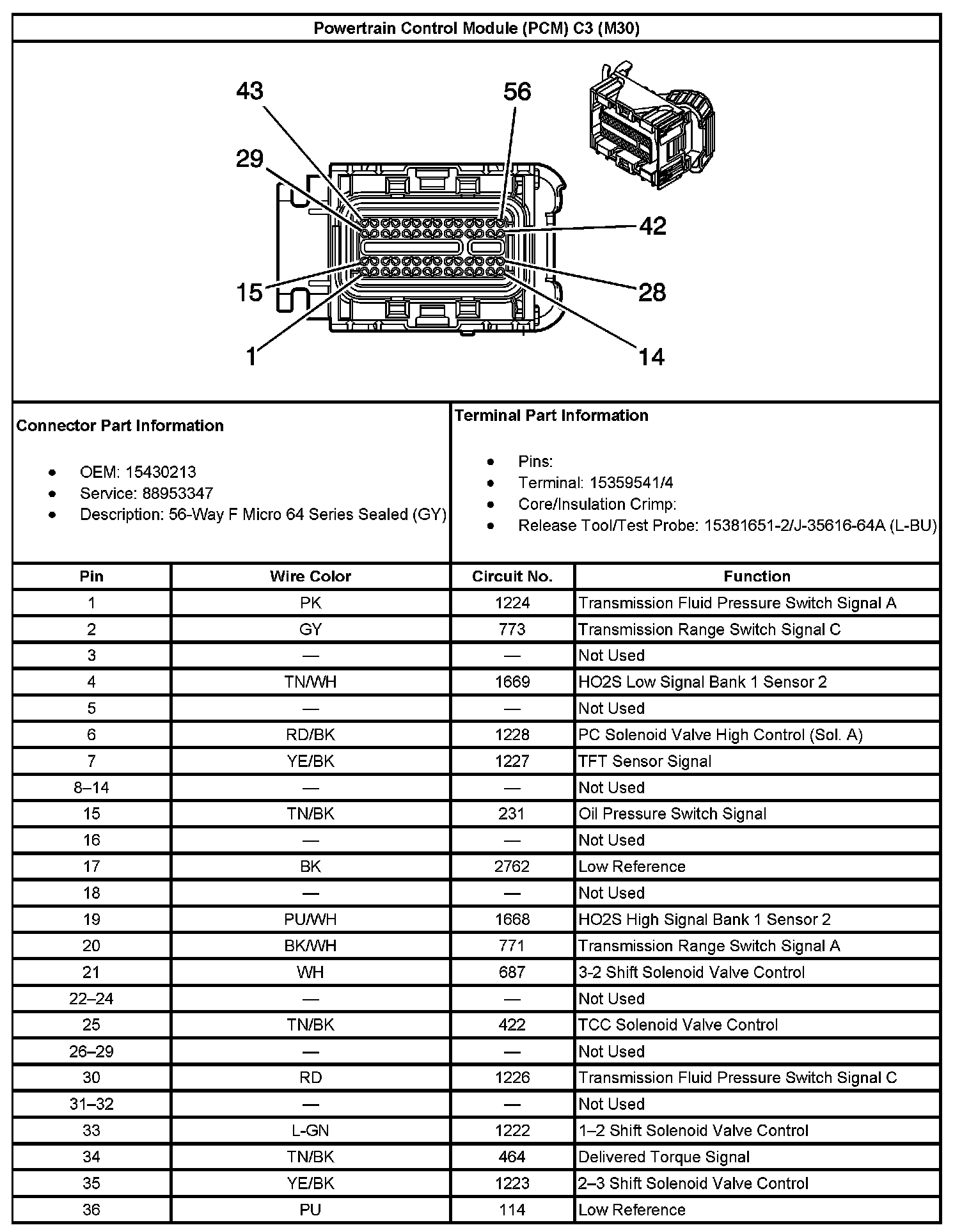

Powertrain Control Module (PCM) C3 (With RPO Code M30) (Part 1):

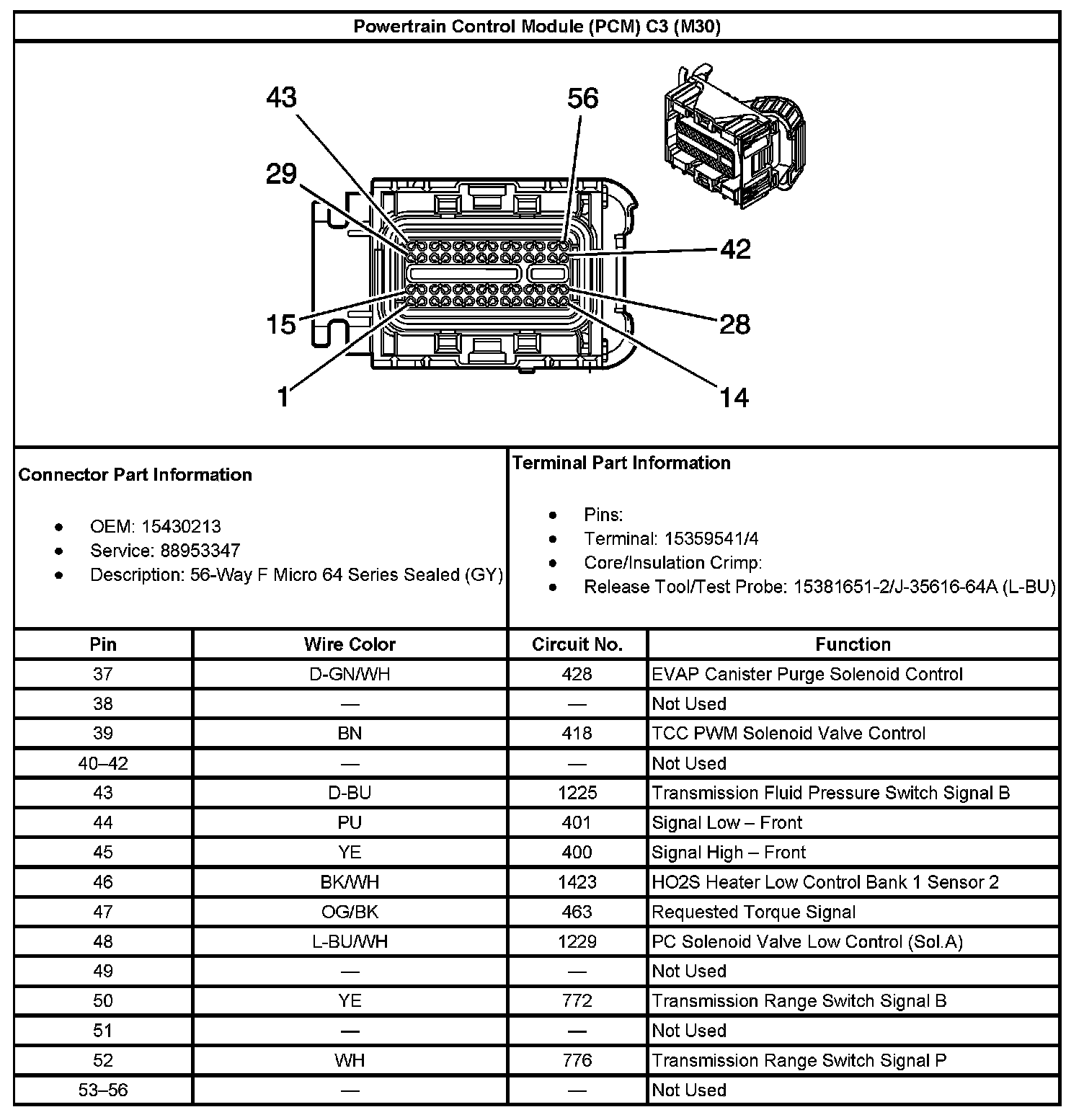

Powertrain Control Module (PCM) C3 (With RPO Code M30) (Part 2):
