Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Differential Assembly
Differential Assembly
Rear Axle Connector End Views

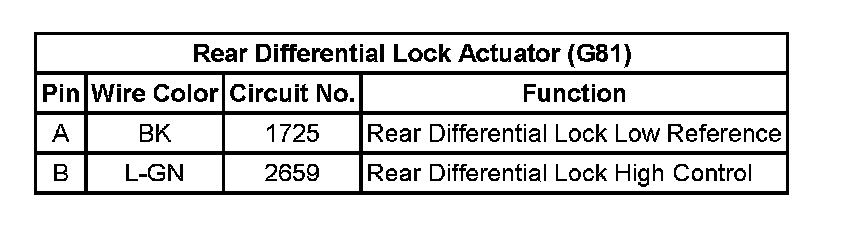

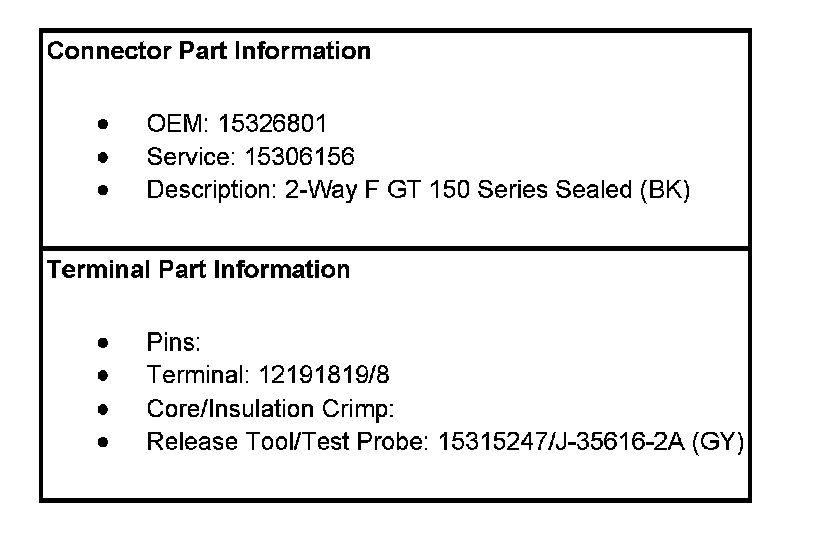

Rear Differential Lock Actuator (G81):
