Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp

Courtesy Lamp

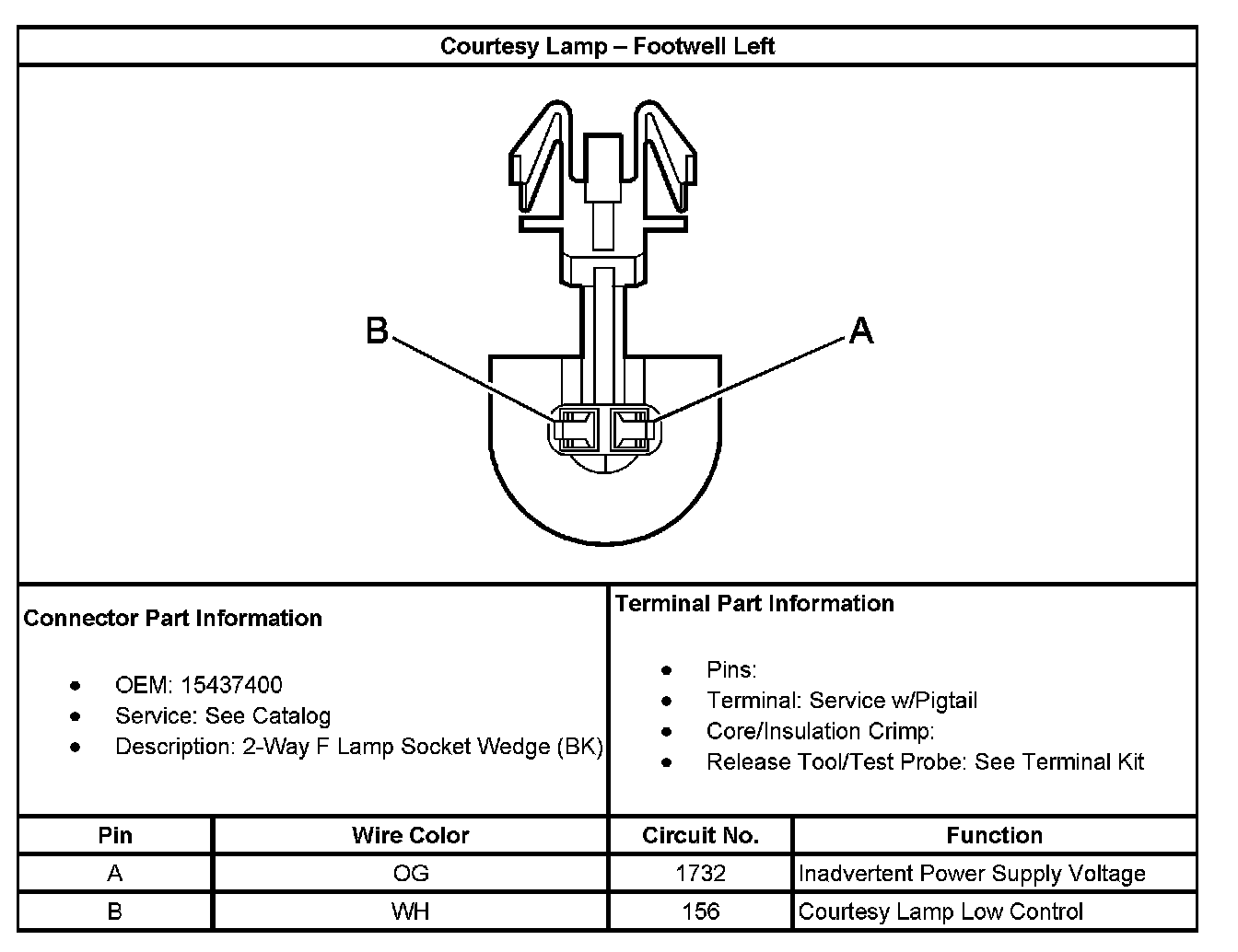

Courtesy Lamp - Footwell Left:

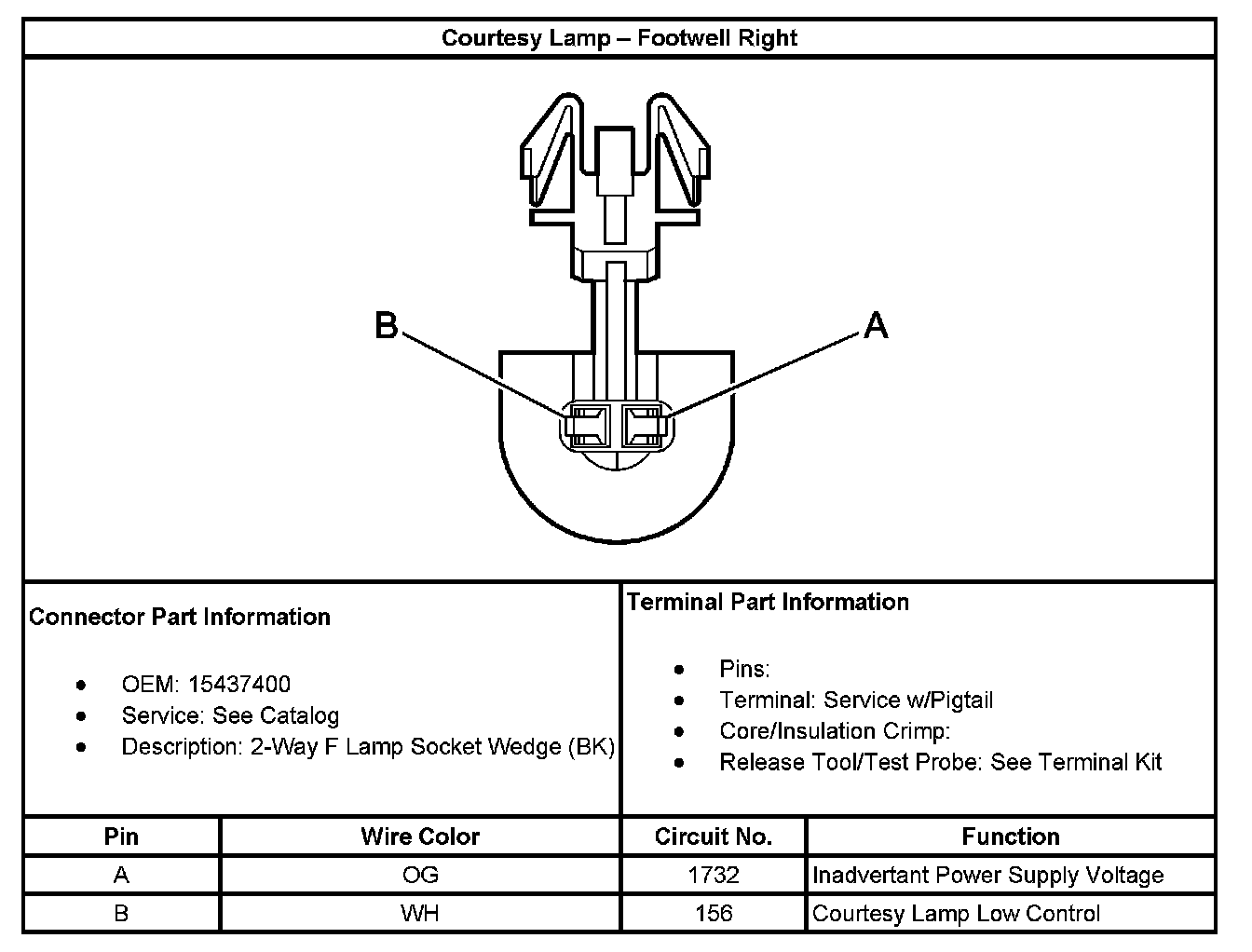

Courtesy Lamp - Footwell Right:
