Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

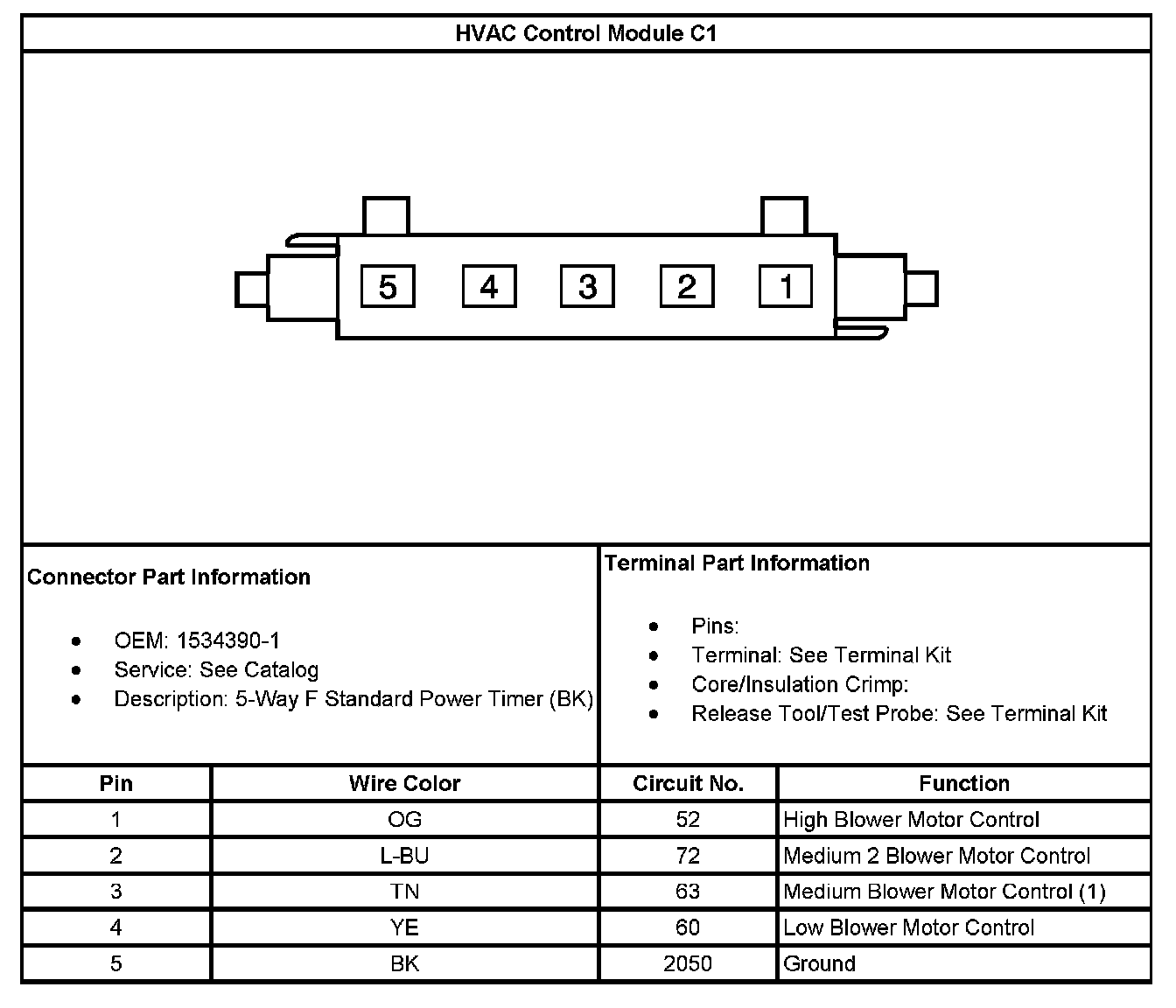

HVAC Control Module C1:

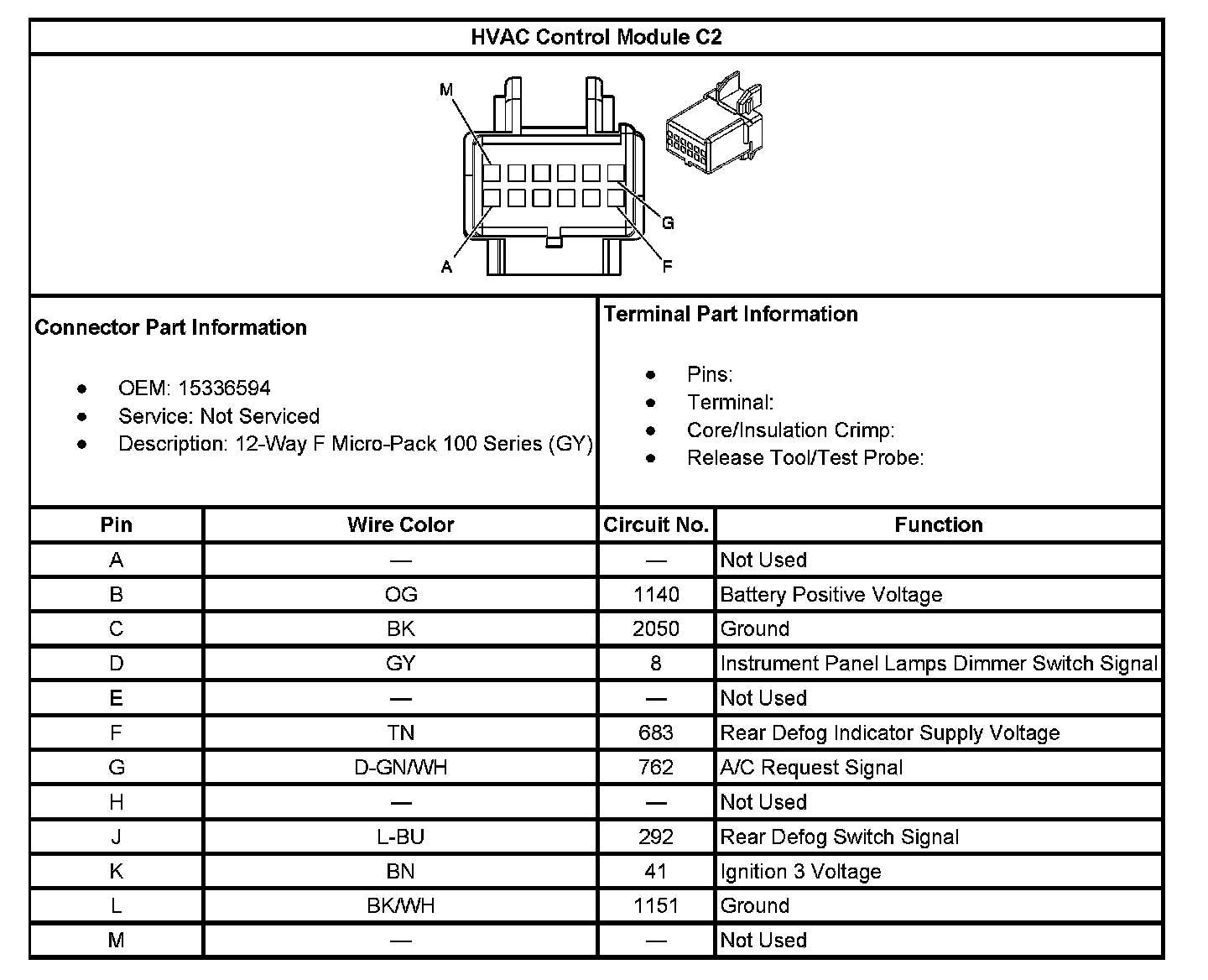

HVAC Control Module C2:

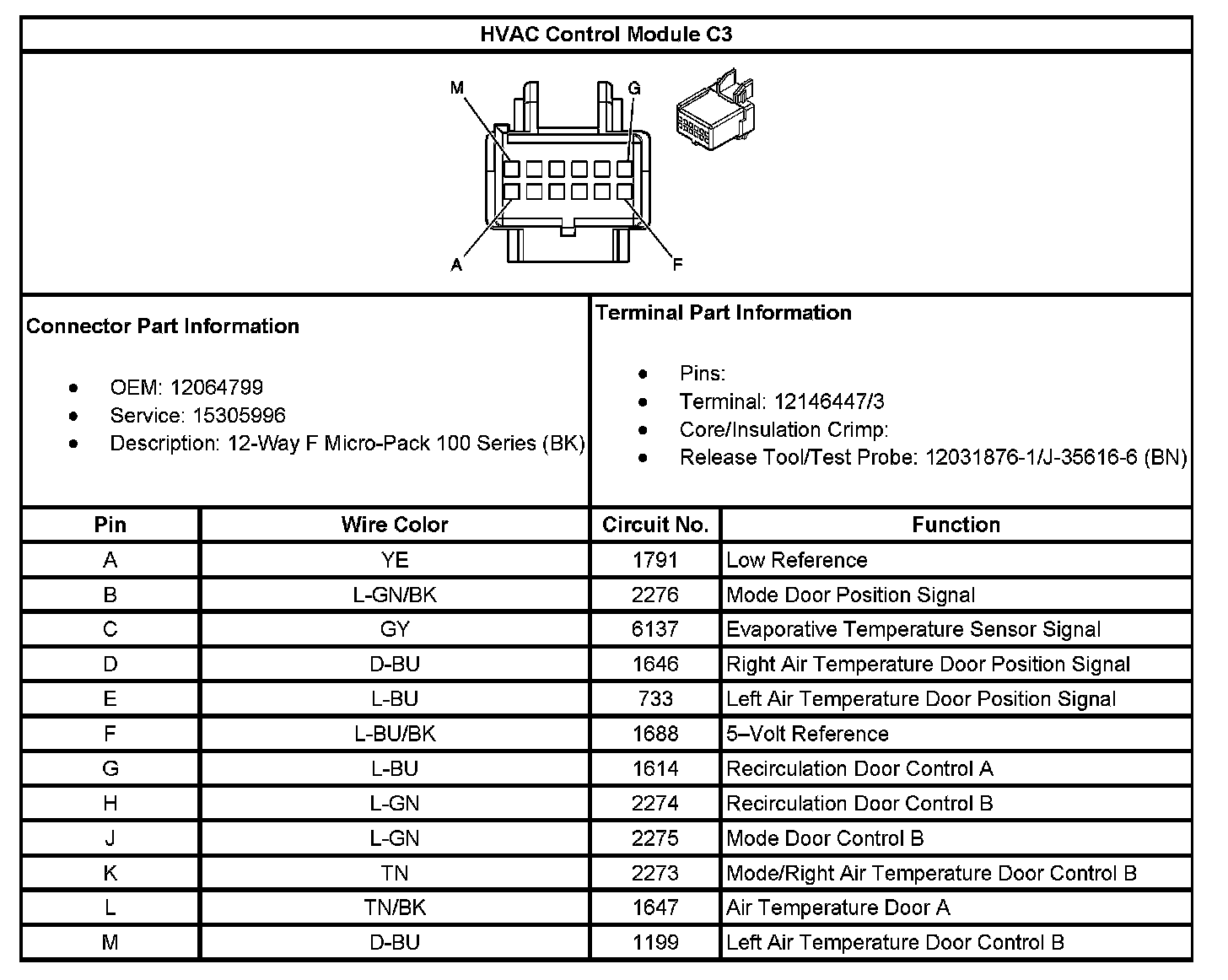

HVAC Control Module C3:
