Camshaft Position Sensor
Camshaft Position Sensor

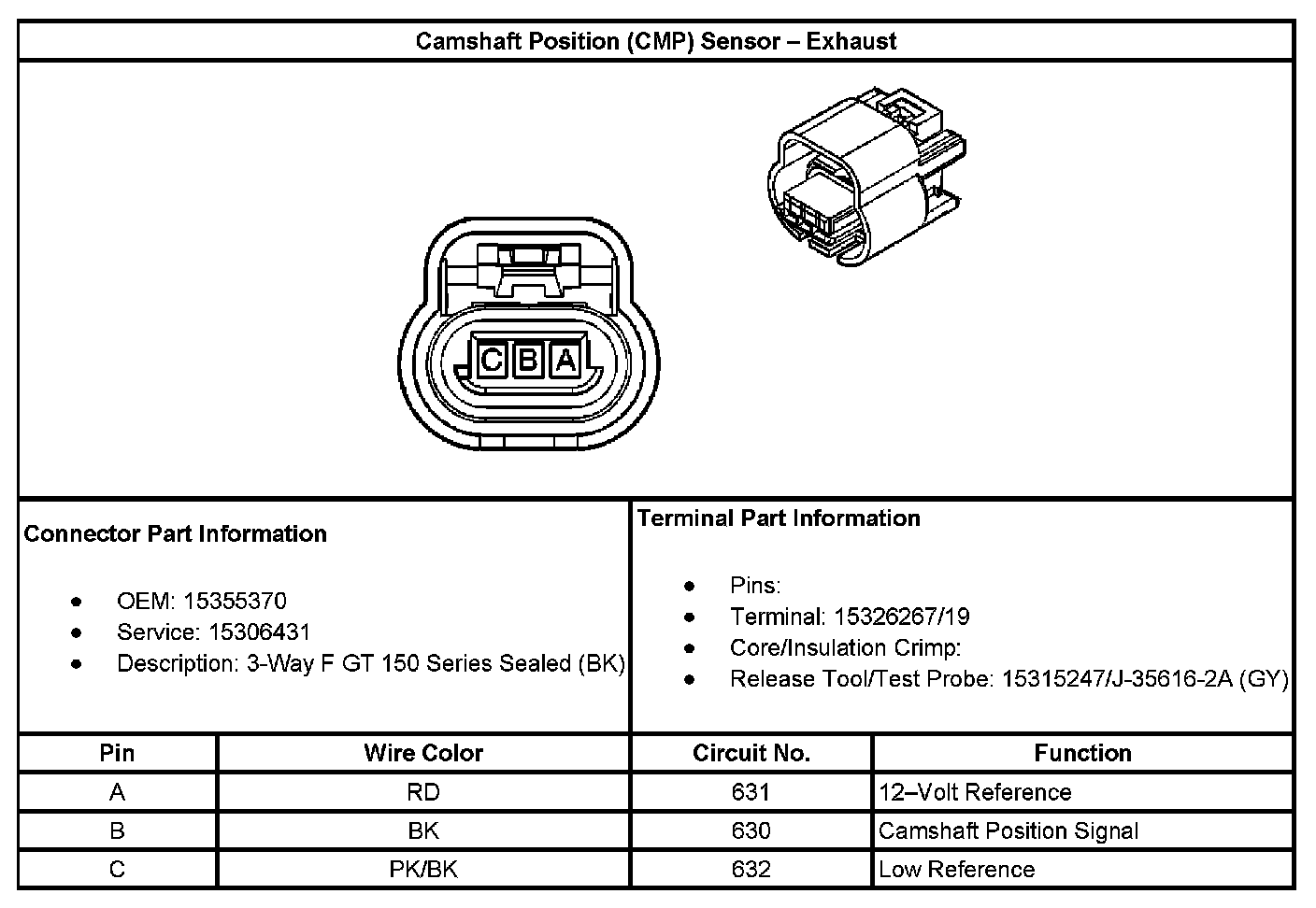

Camshaft Position (CMP) Sensor - Exhaust:

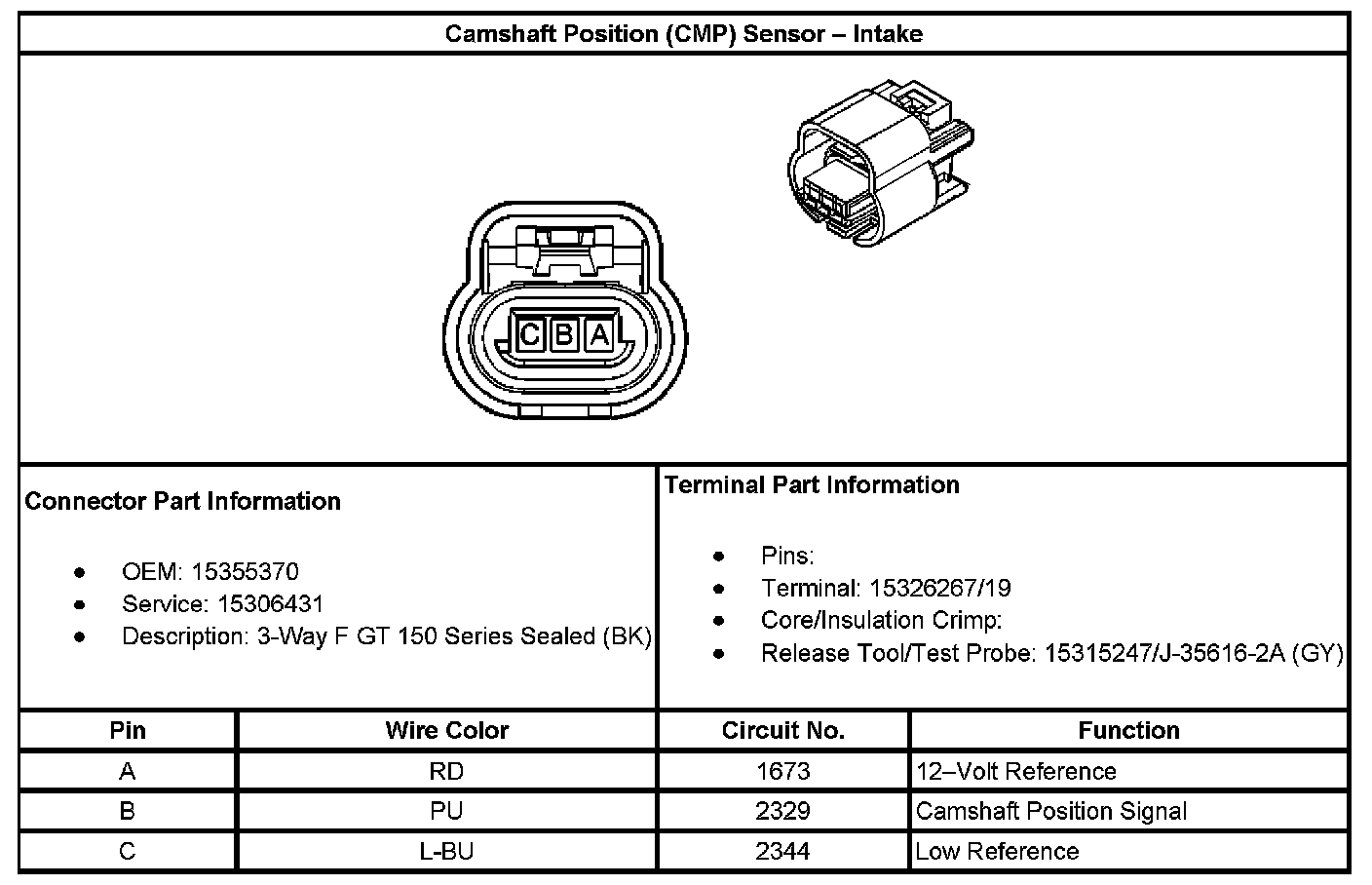

Camshaft Position (CMP) Sensor - Intake:
