Diagrams
>>
Connector Views
>>
Brake Lamp
Brake Lamp

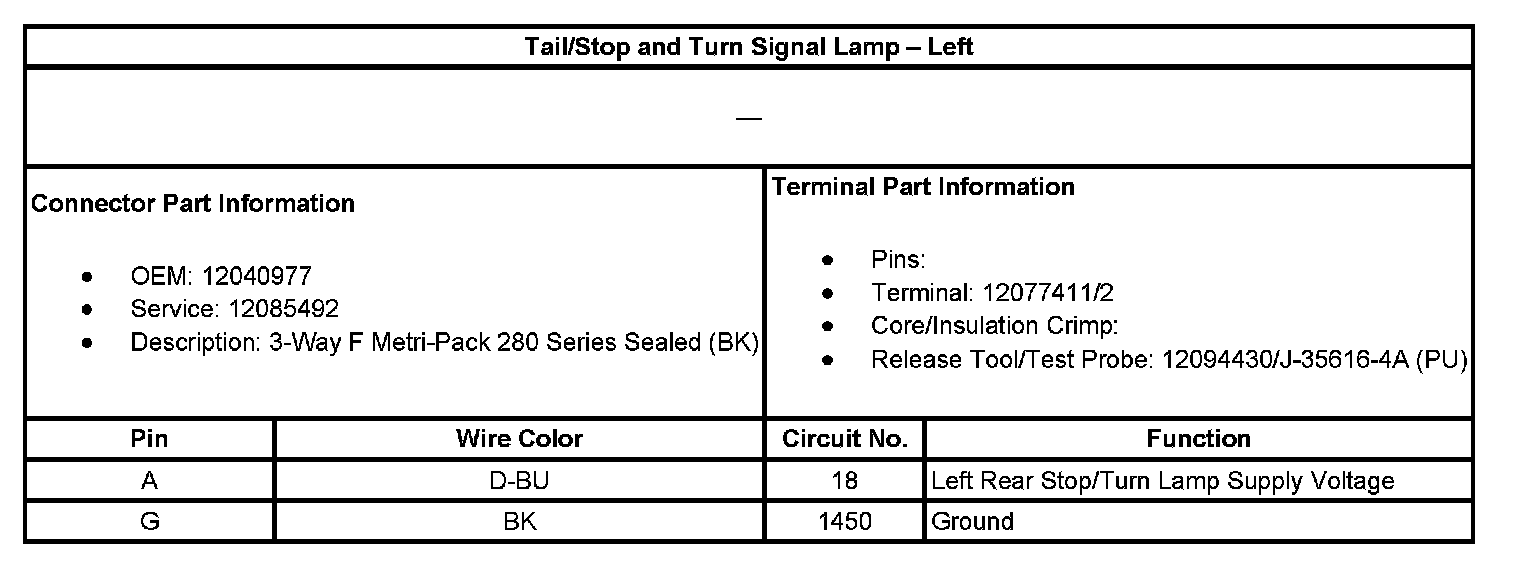

Tail/Stop And Turn Signal Lamp - Left:

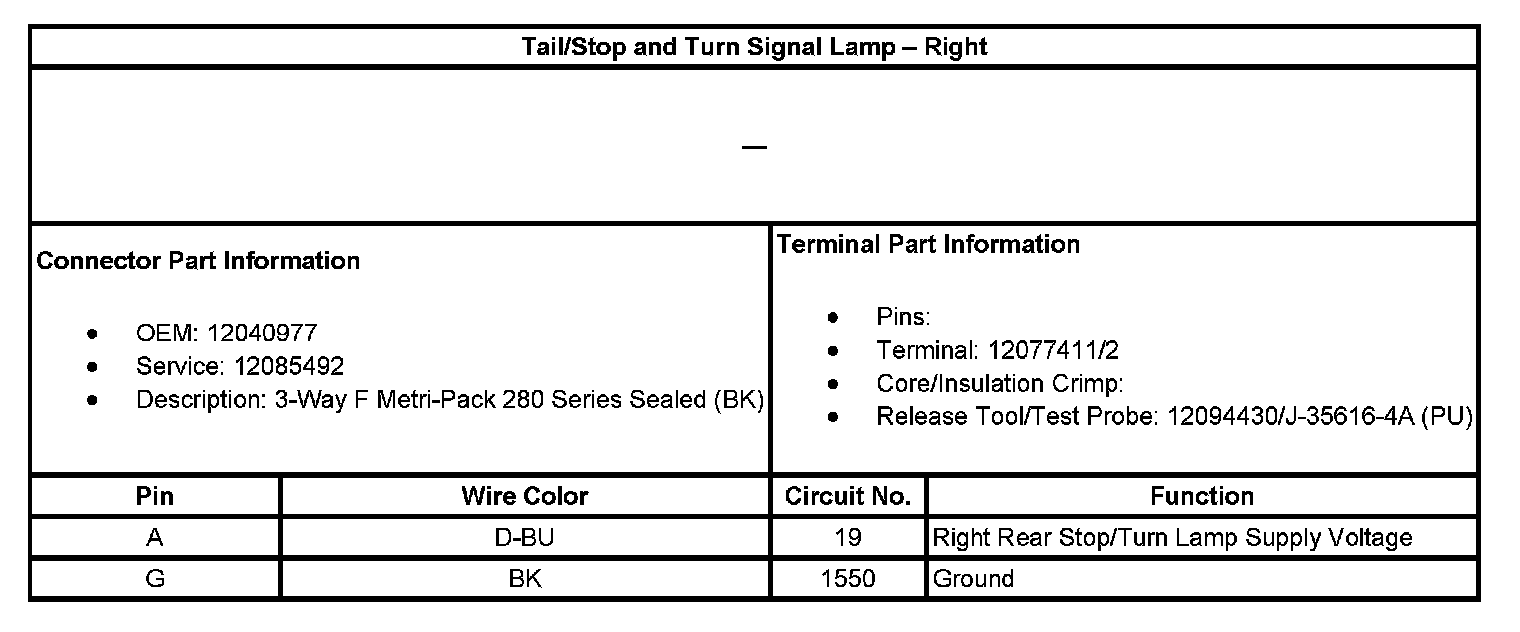

Tail/Stop And Turn Signal Lamp - Right:
