Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Data Link Connector (DLC)

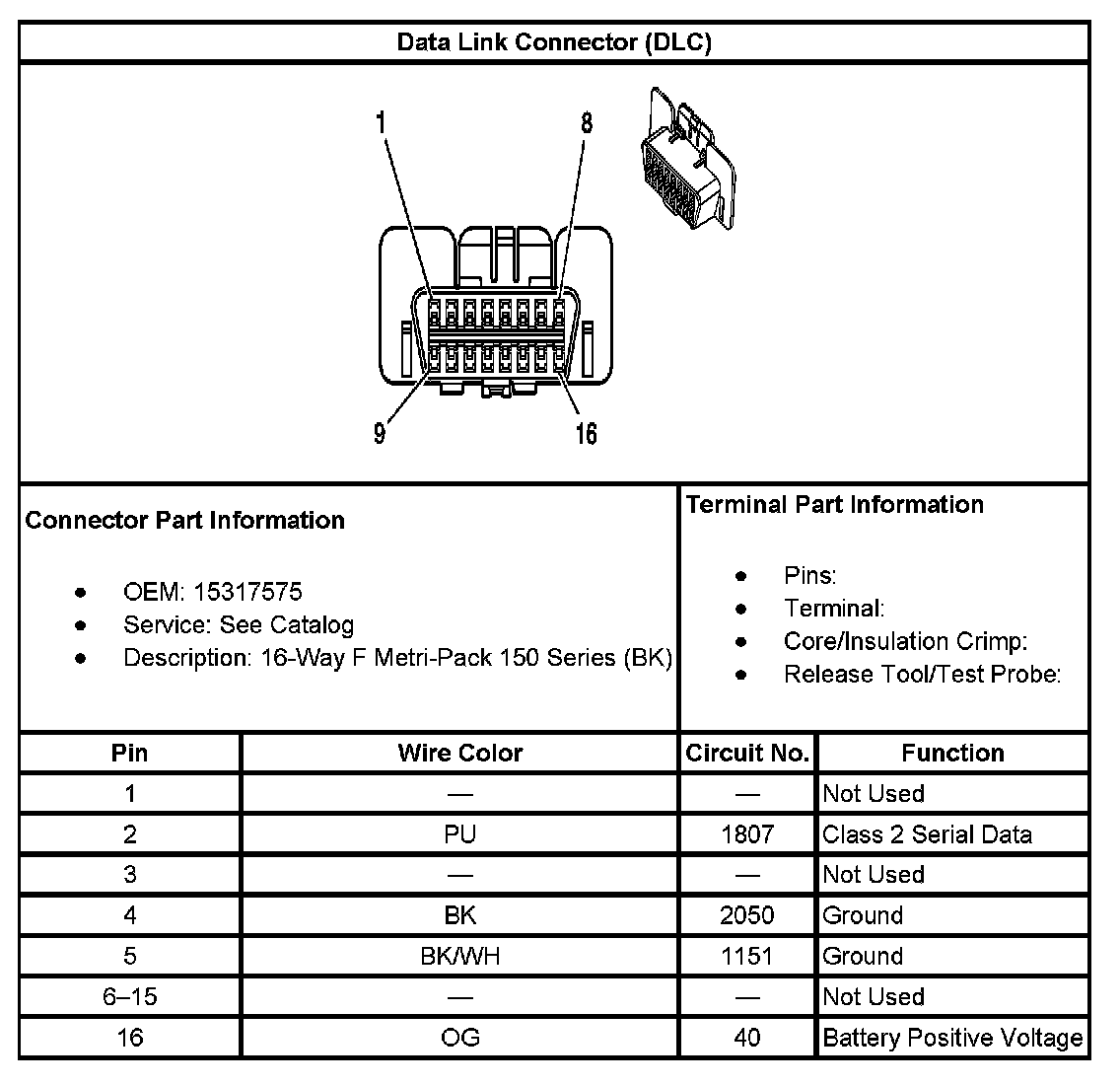

Data Link Connector (DLC)

Data Link Connector (DLC):
