Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

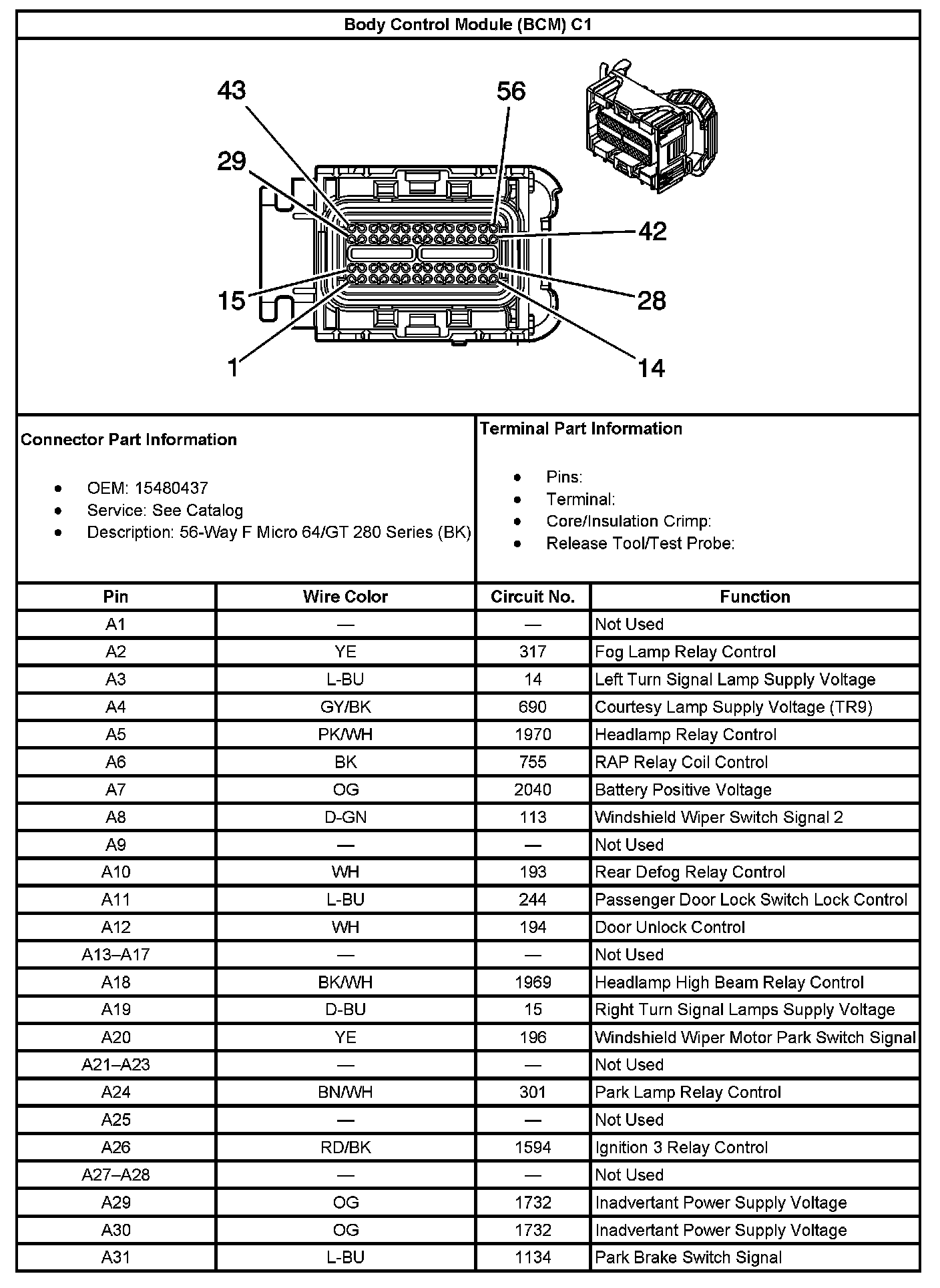

Body Control Module (BCM) C1 (Part 1):

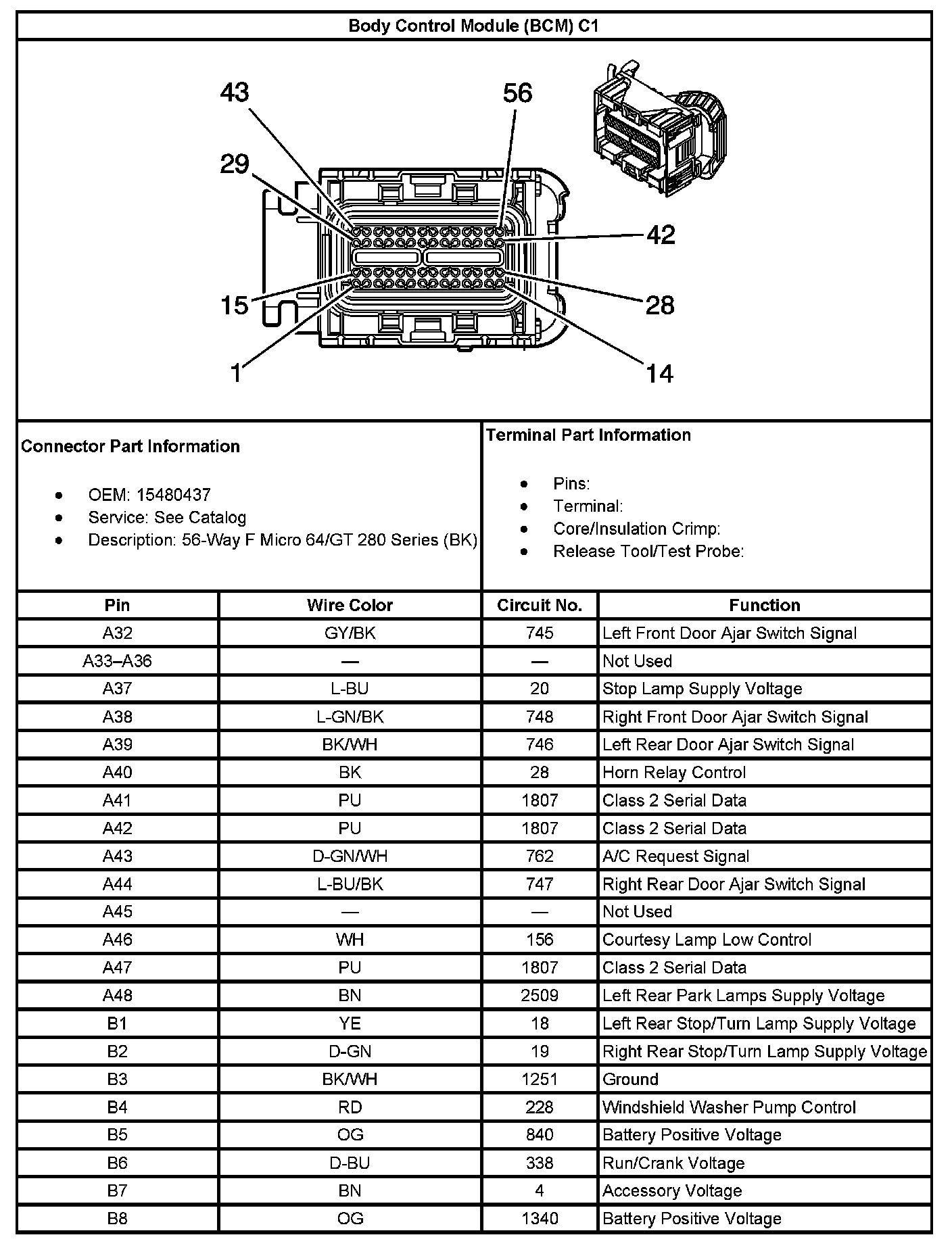

Body Control Module (BCM) C1 (Part 2):
