Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

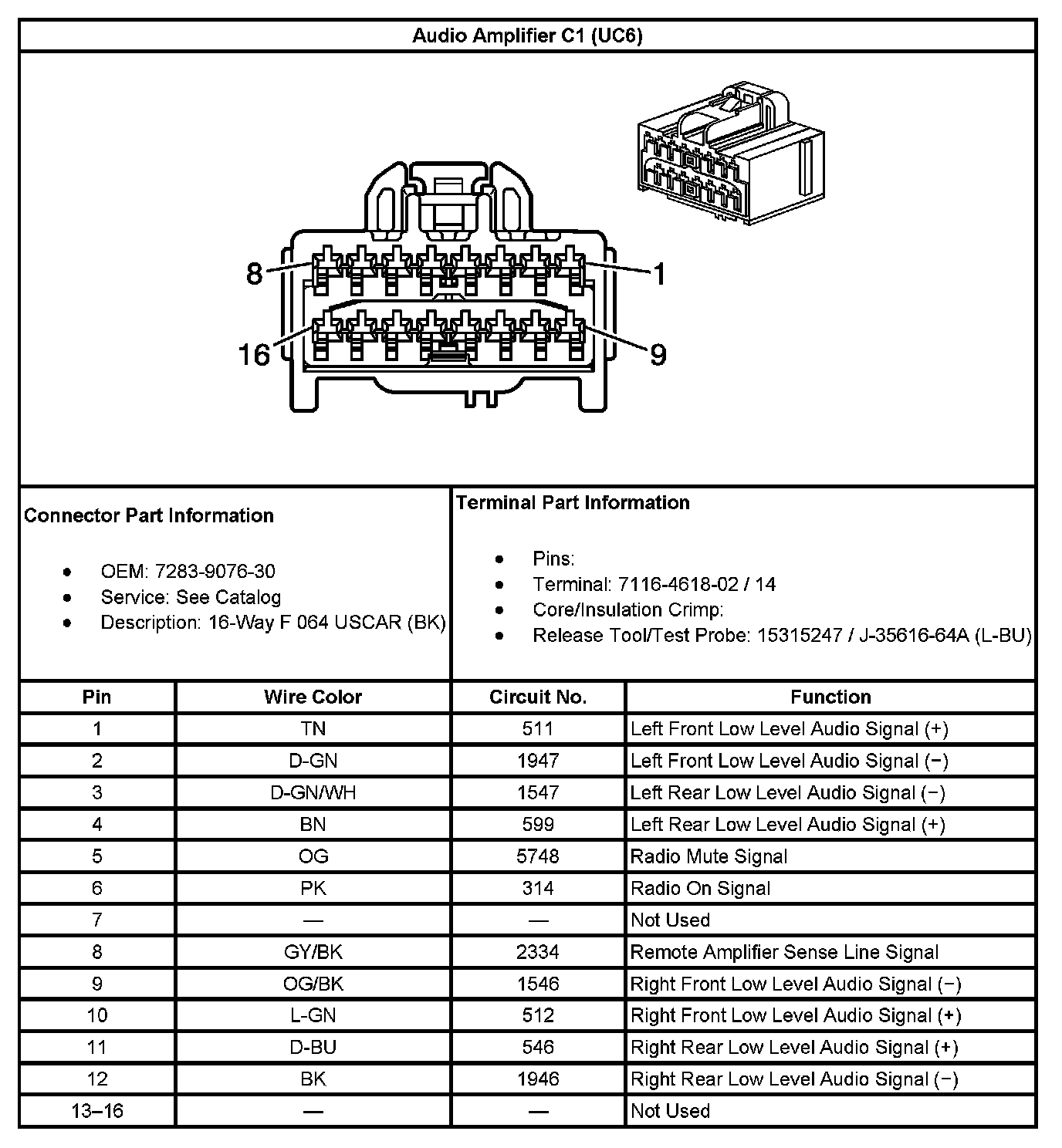

Audio Amplifier C1 (With RPO Code UC6):

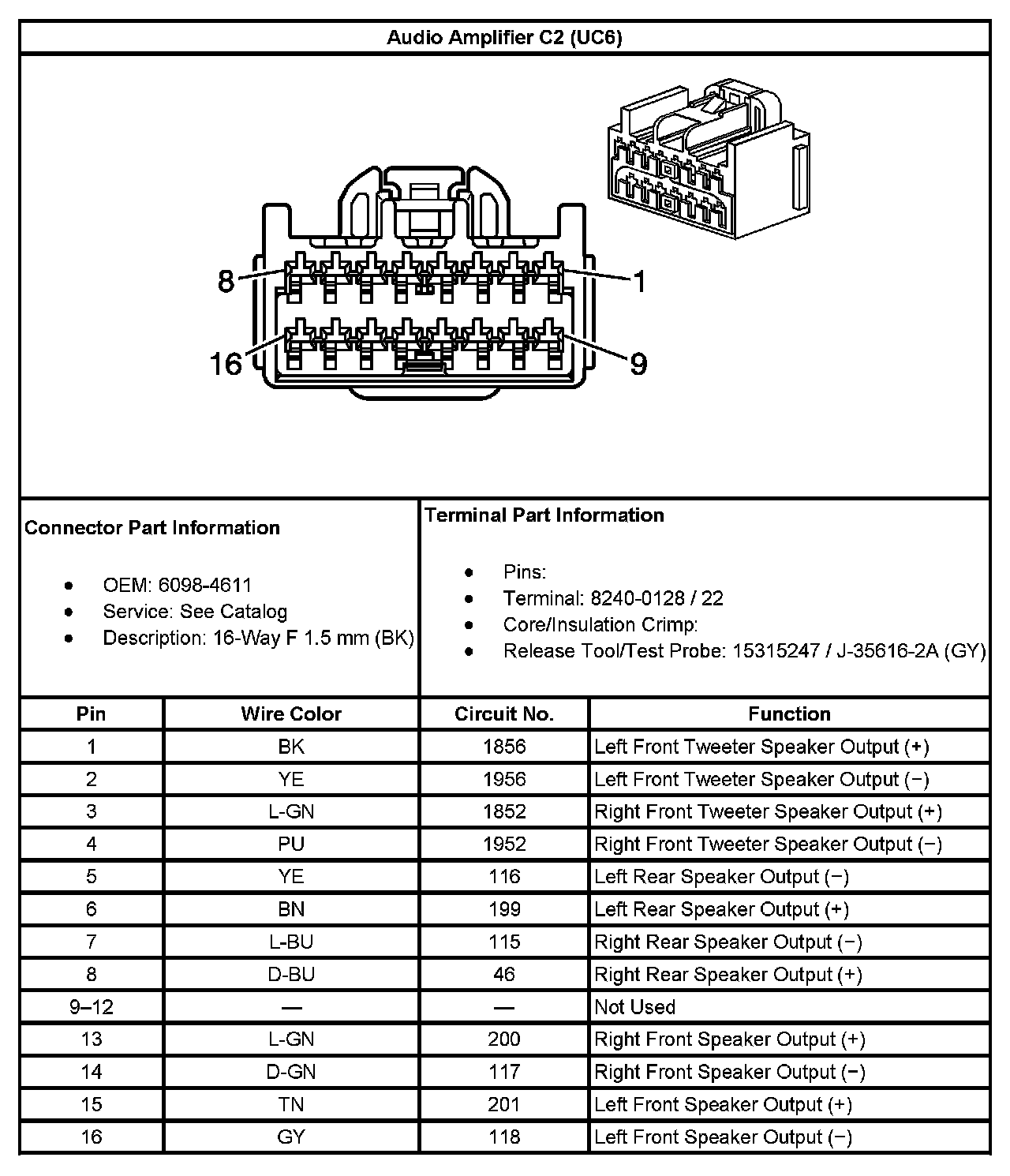

Audio Amplifier C2 (With RPO Code UC6):

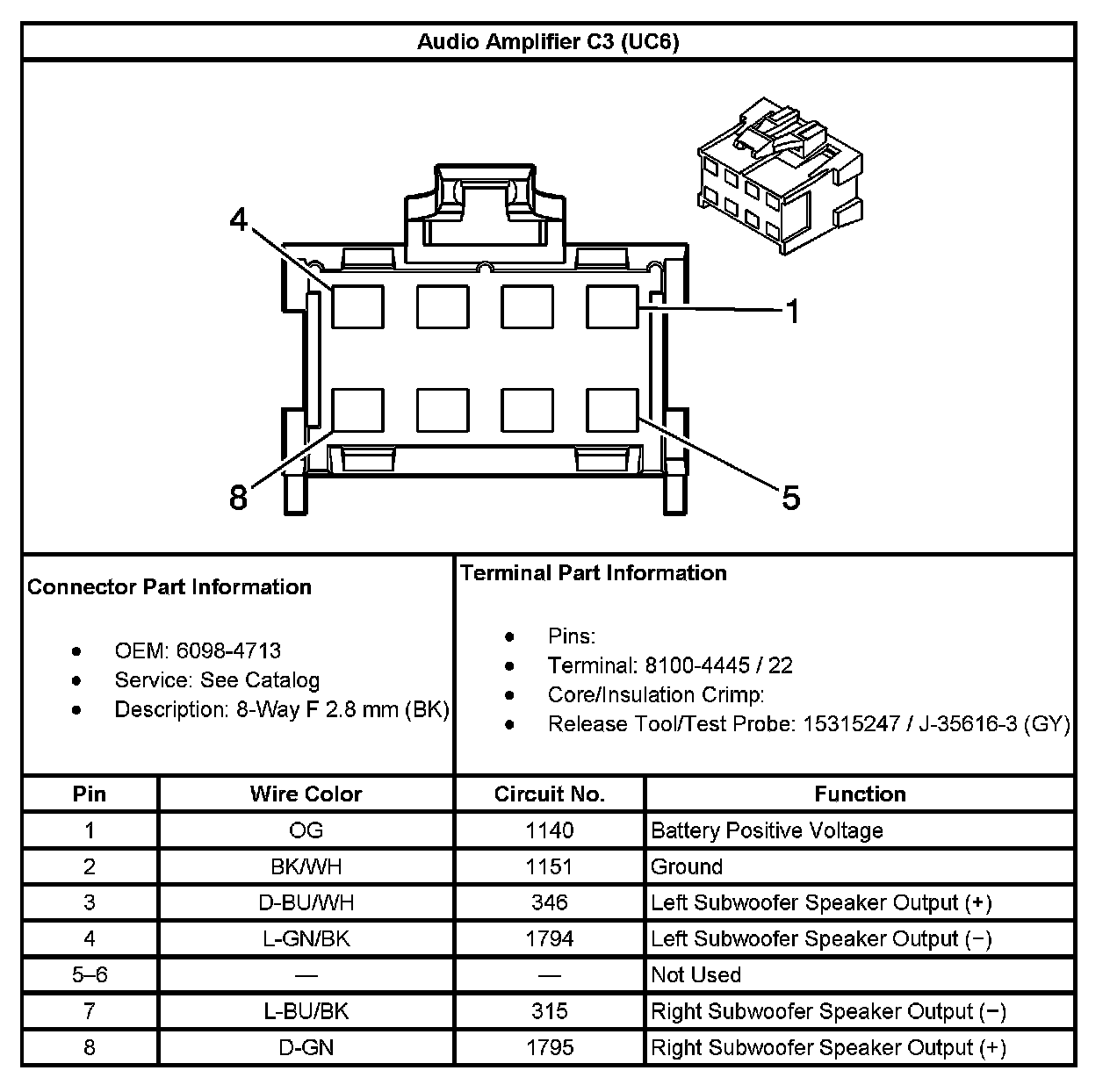

Audio Amplifier C3 (With RPO Code UC6):
