Air Flow Meter/Sensor
Air Flow Meter/Sensor

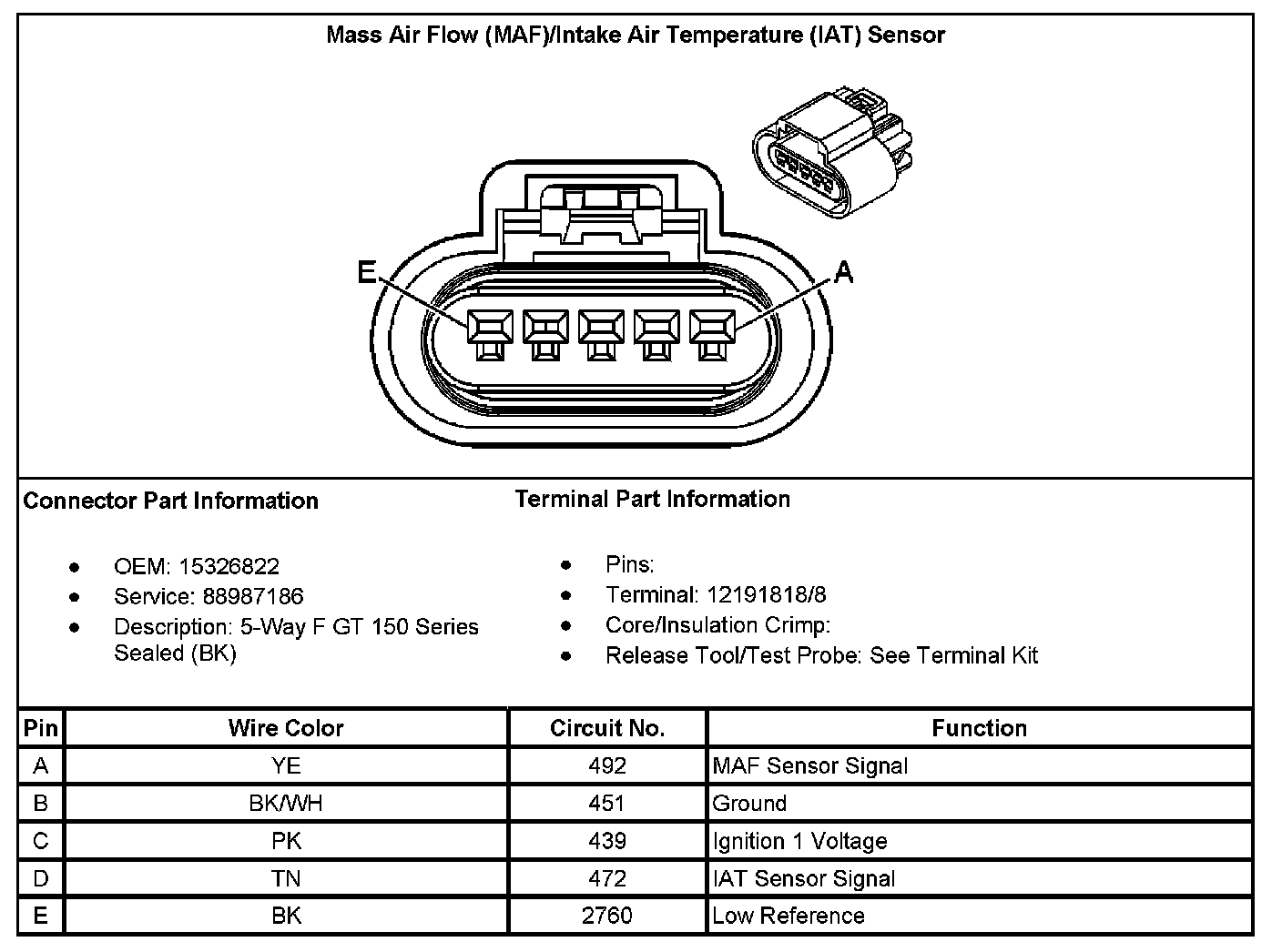

Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor:
