Air Bag
>>
Inflatable Restraint Steering Wheel Module
Inflatable Restraint Steering Wheel Module

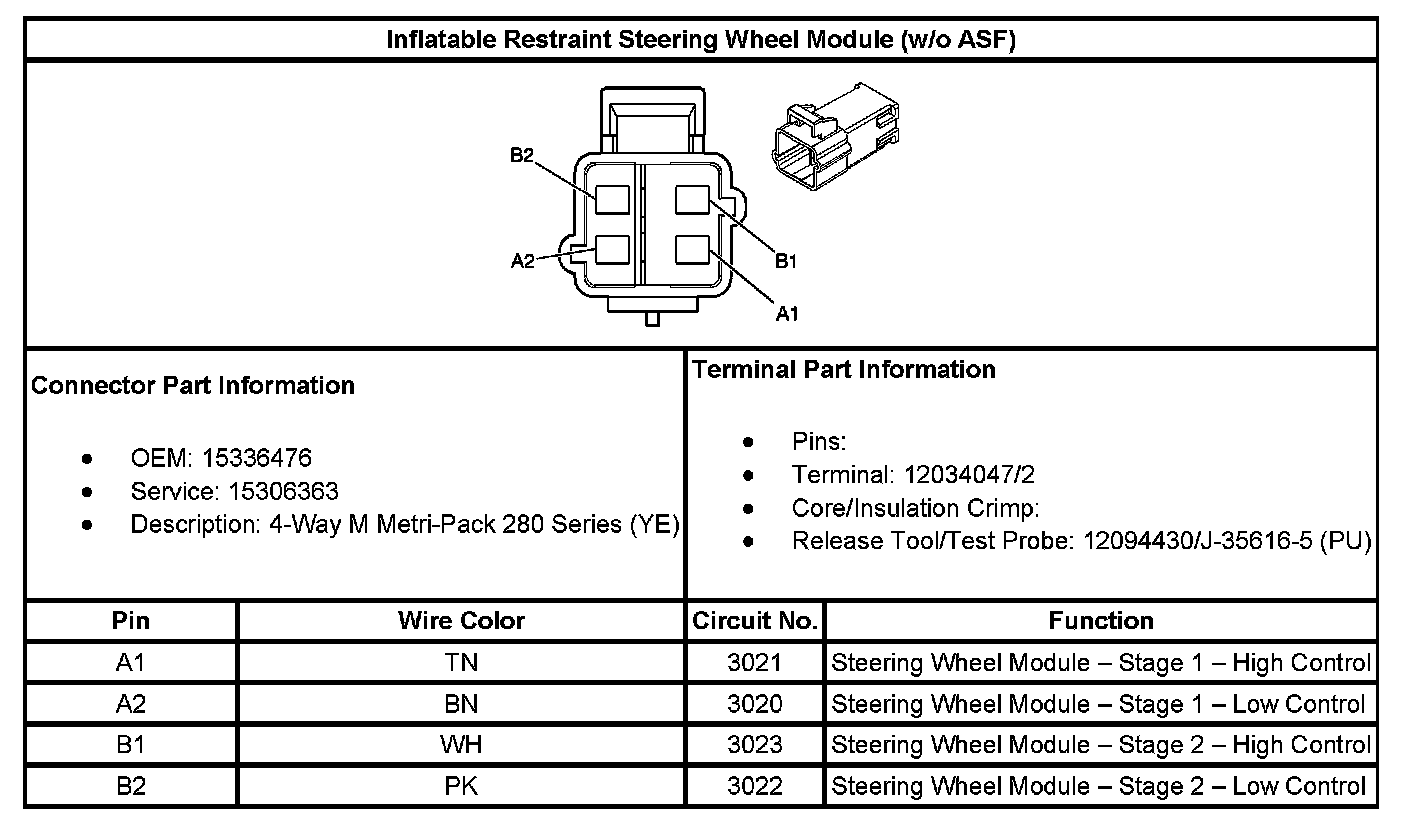

Inflatable Restraint Steering Wheel Module (Without RPO Code ASF):

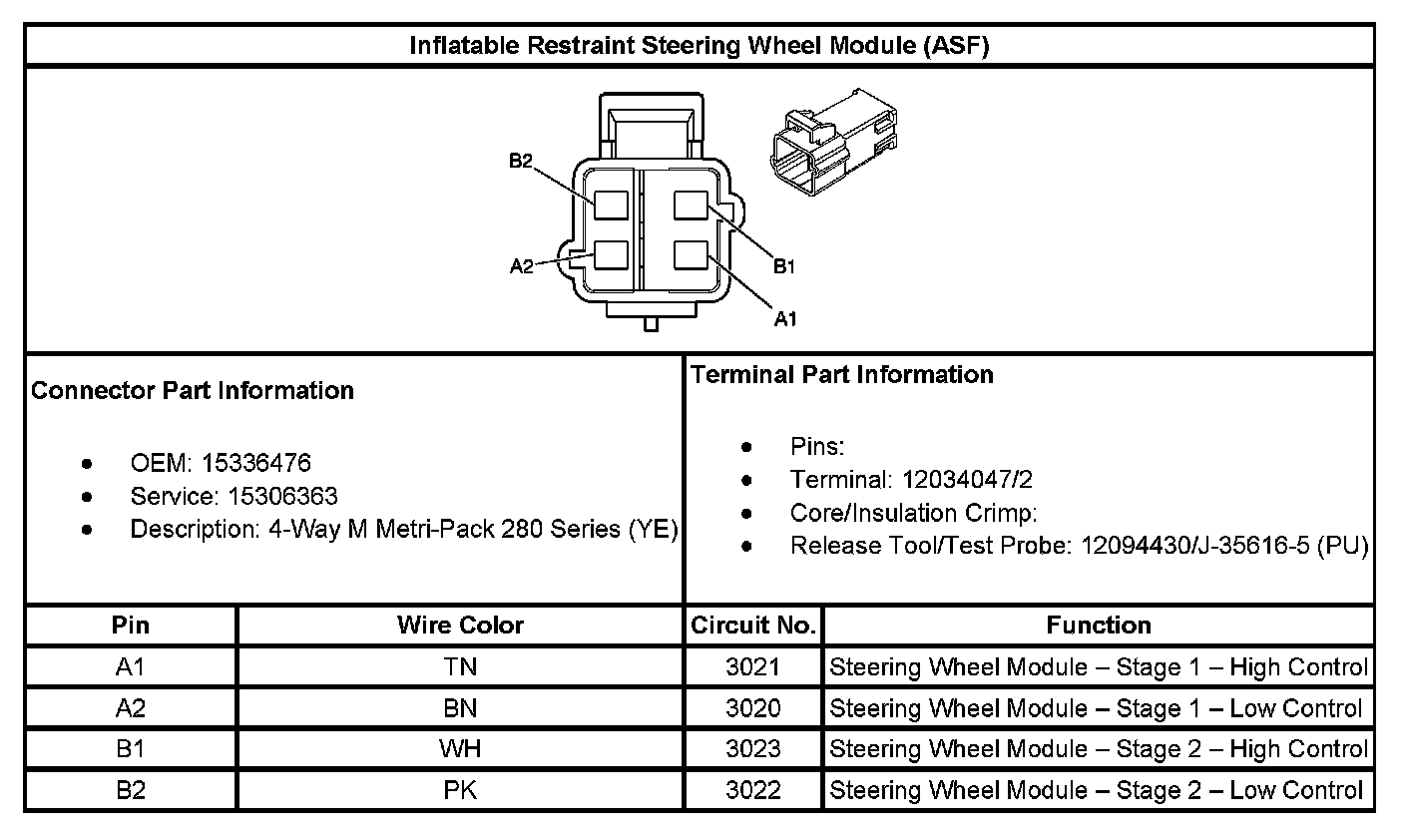

Inflatable Restraint Steering Wheel Module (With RPO Code ASF):
