Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

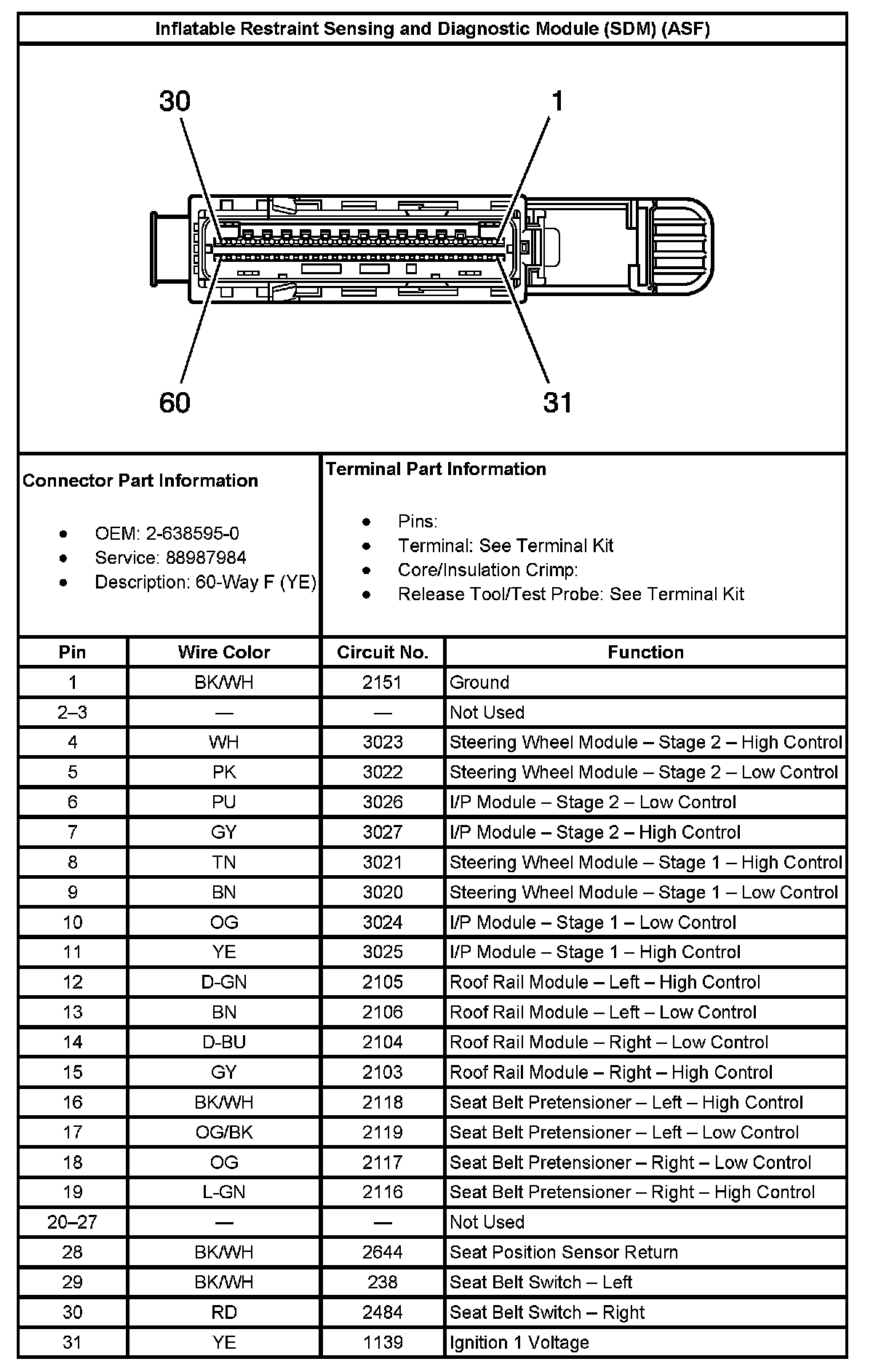

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) (Part 1):

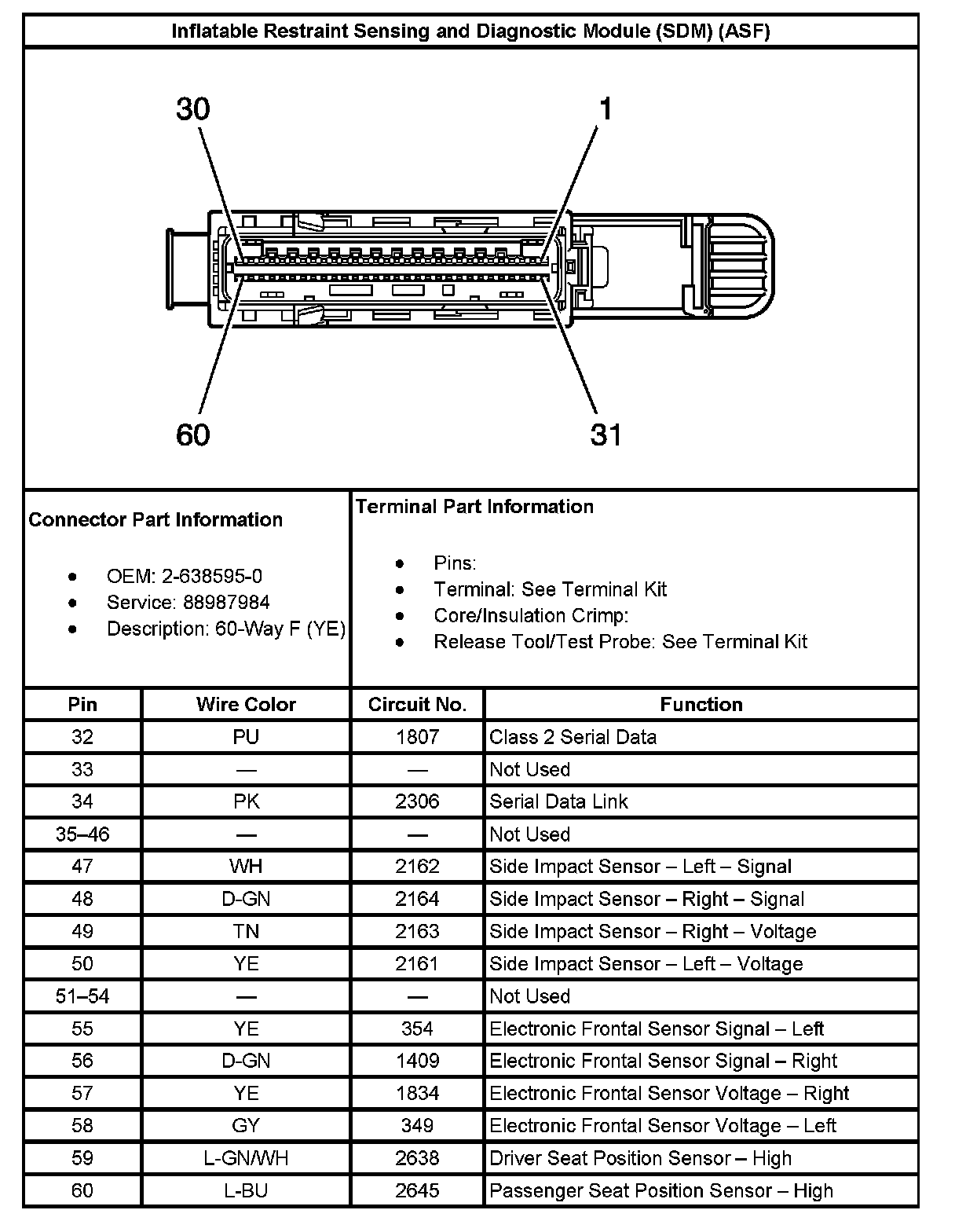

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) (Part 2):

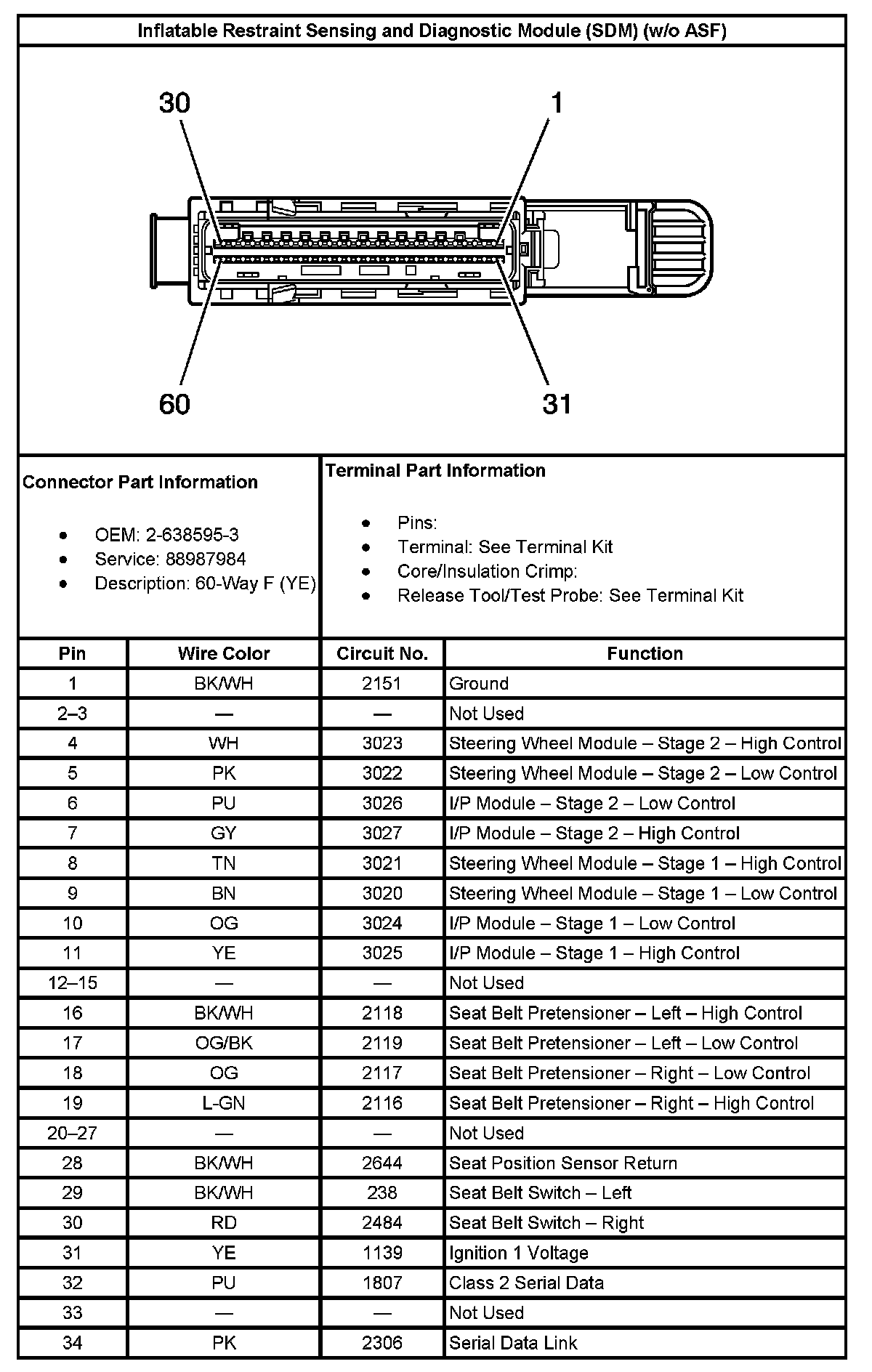

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) (Part 1):

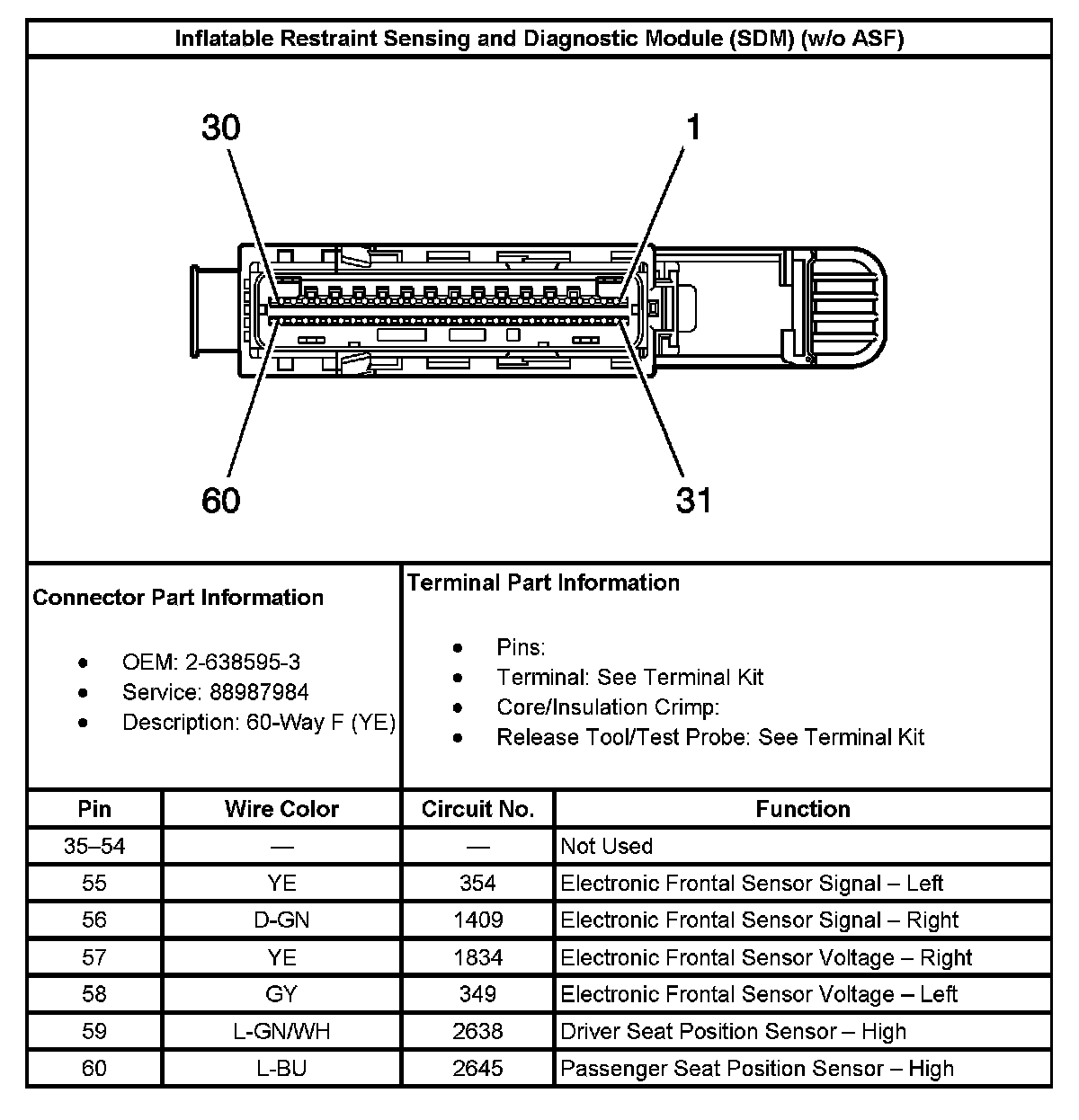

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) (Part 2):
