Thread Repair Specifications - Engine Block
>>

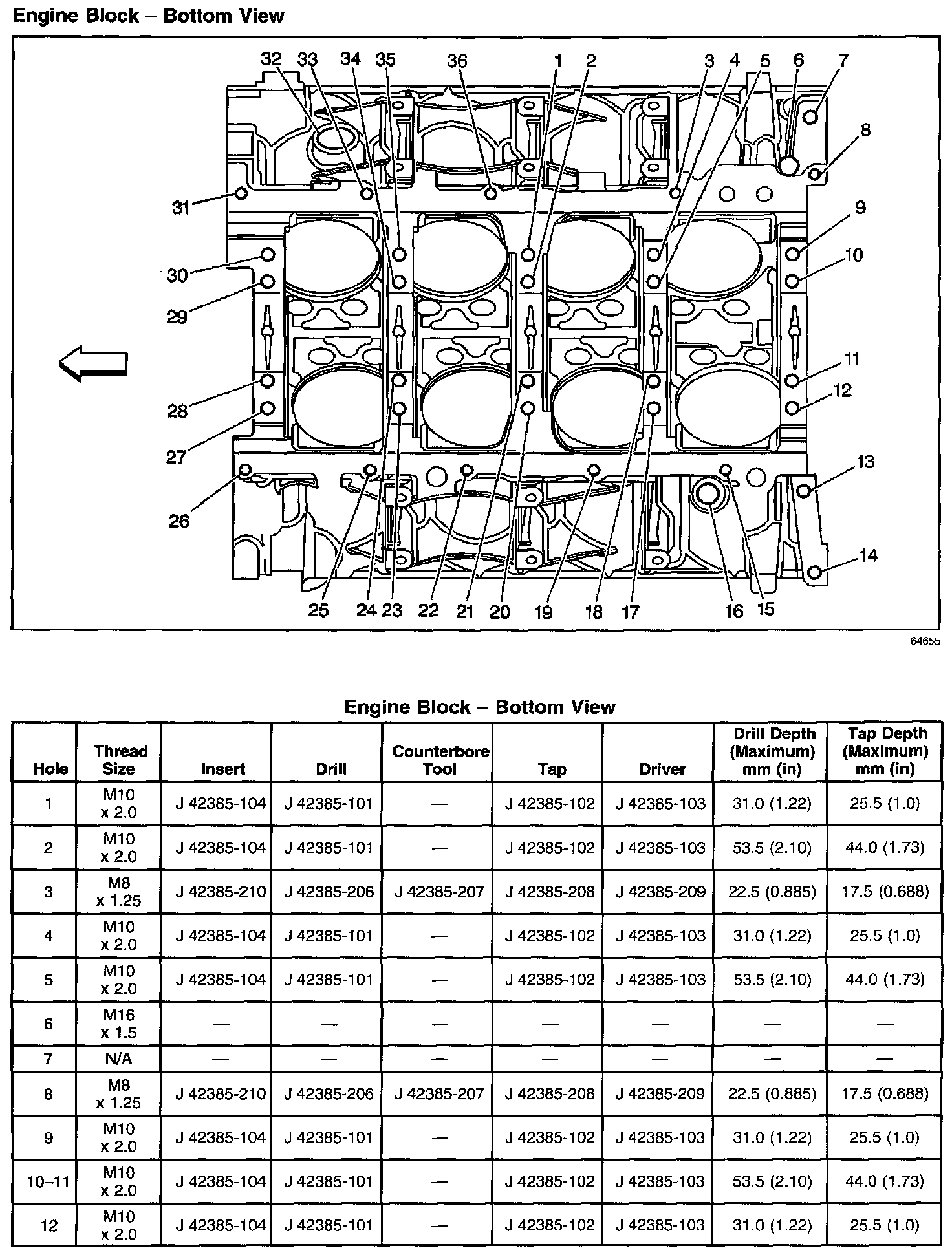

Engine Block - Bottom View
Engine Block - Bottom View

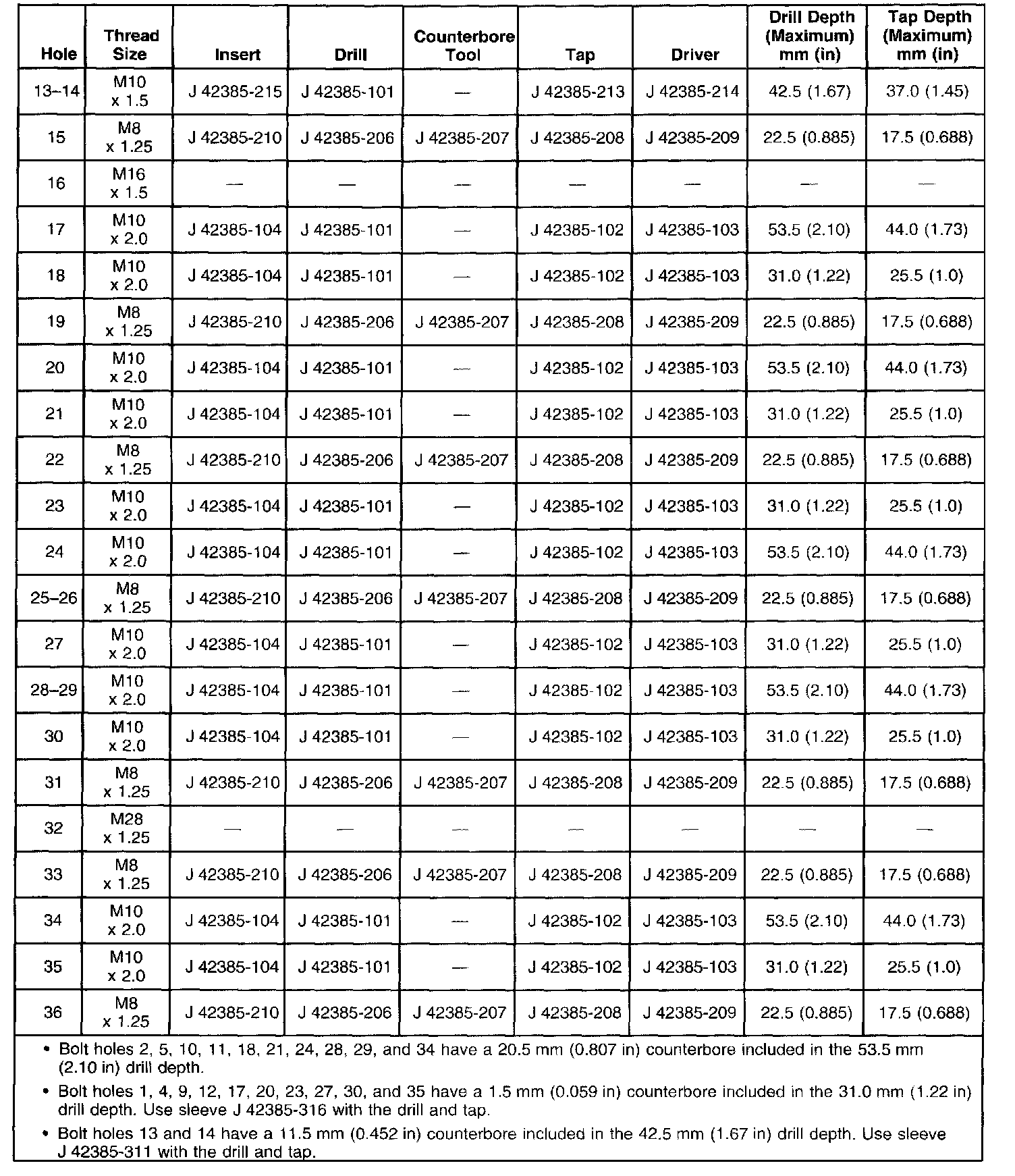

Engine Block - Bottom View Part 1:
Engine Block - Bottom View - Part 2:
