Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Locations >> Splice Locations >> Master Splice List

Master Splice List

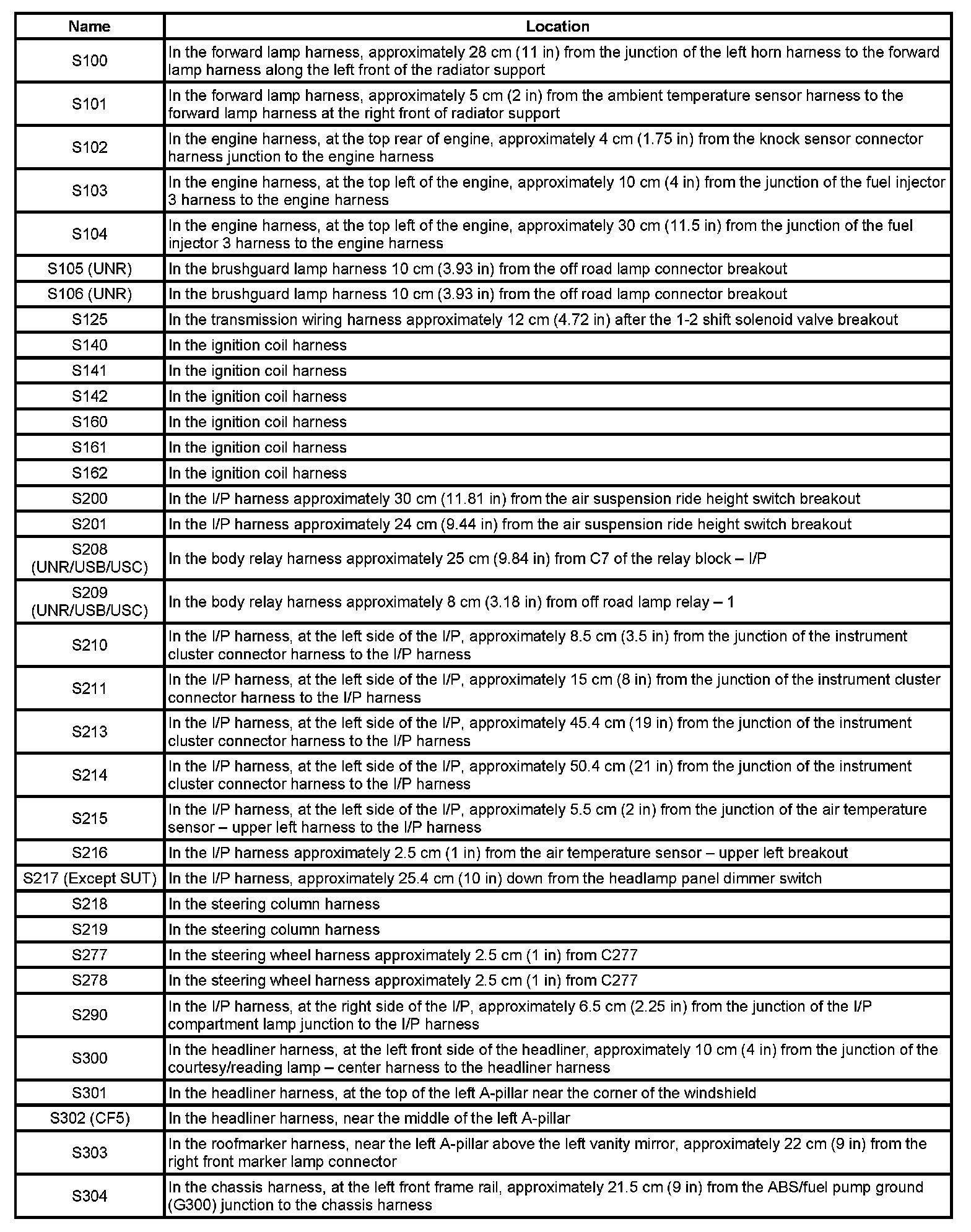

S100 - S304:

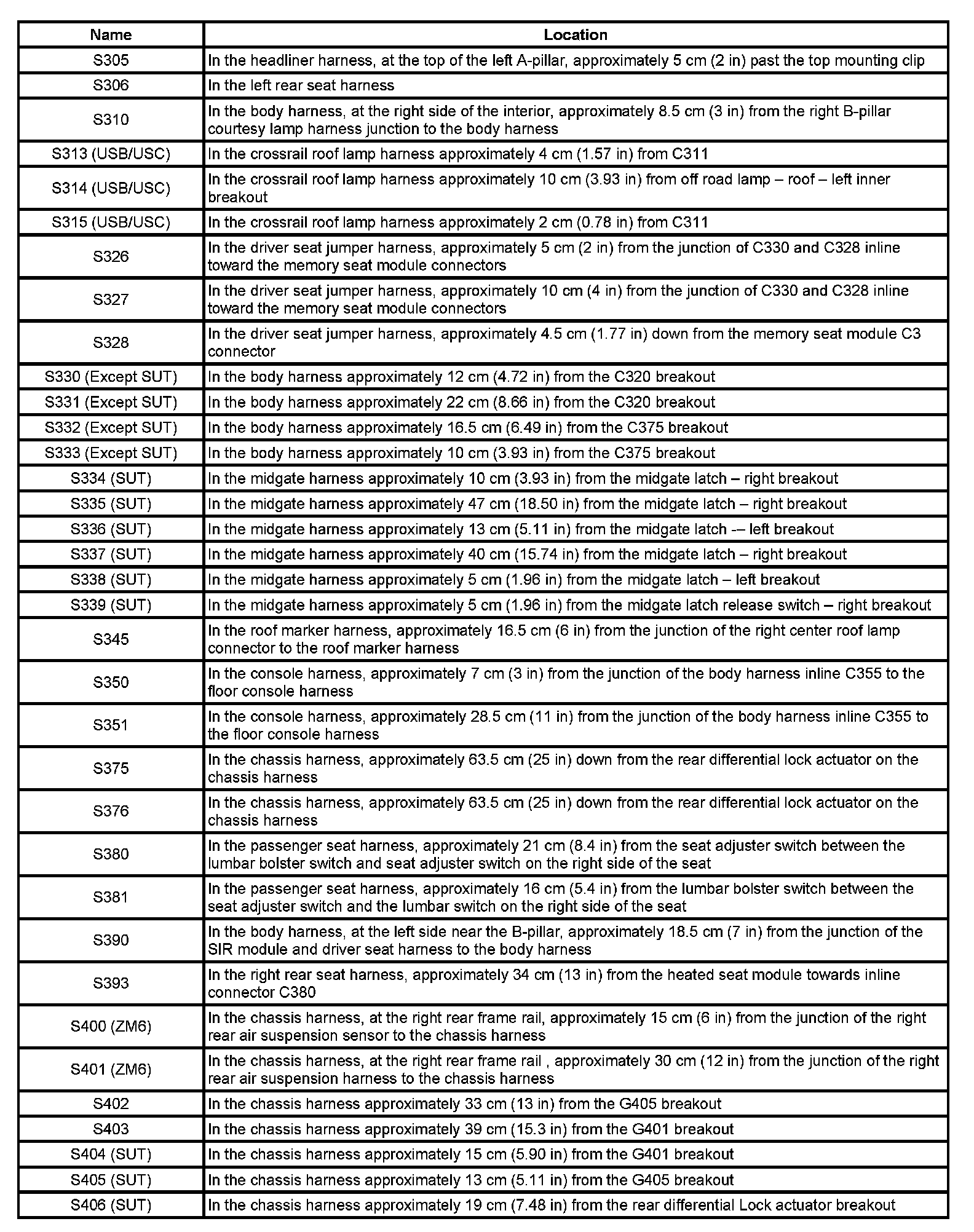

S305 - S406:

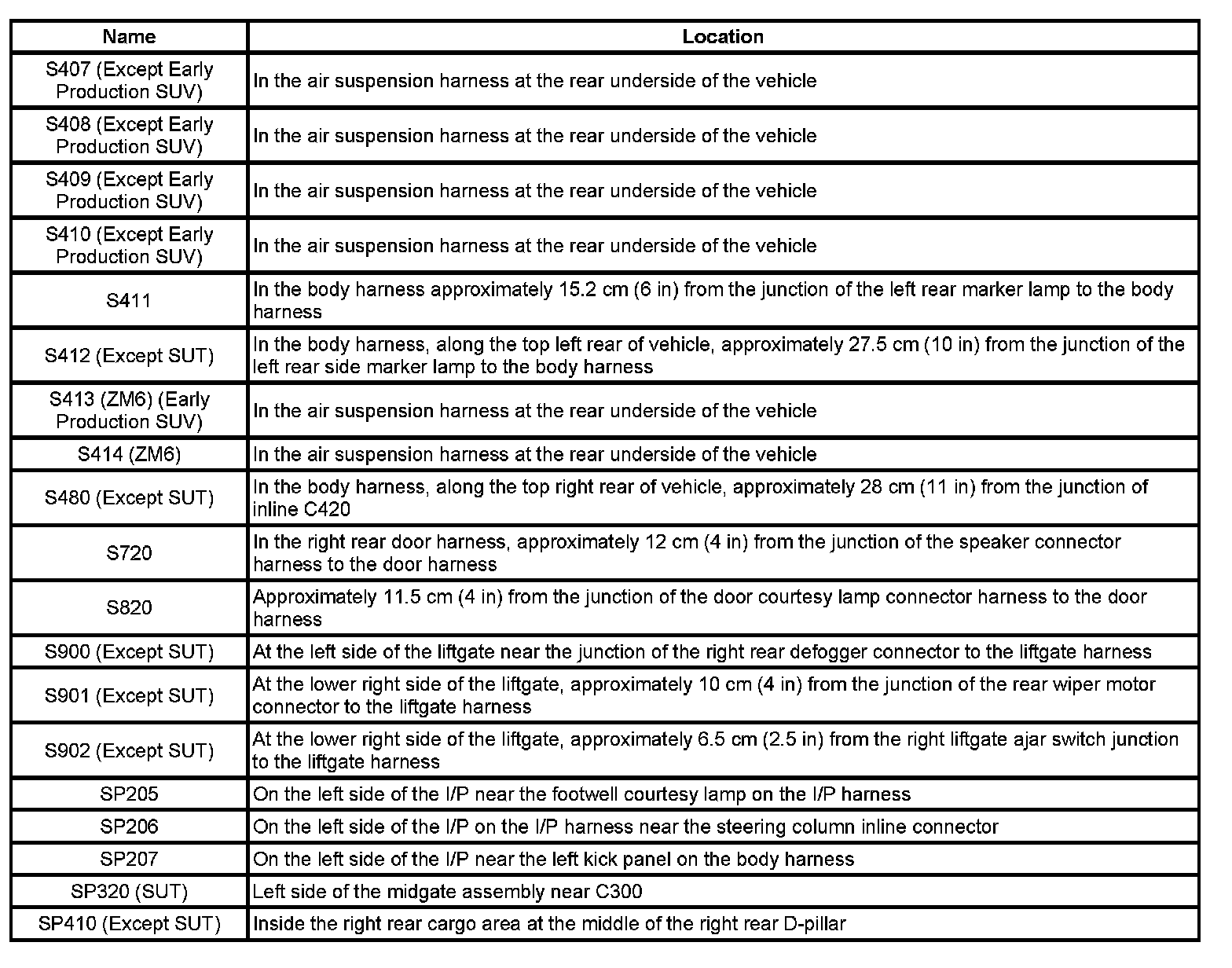

S407 - SP410:
