Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor

Wheel Speed Sensor

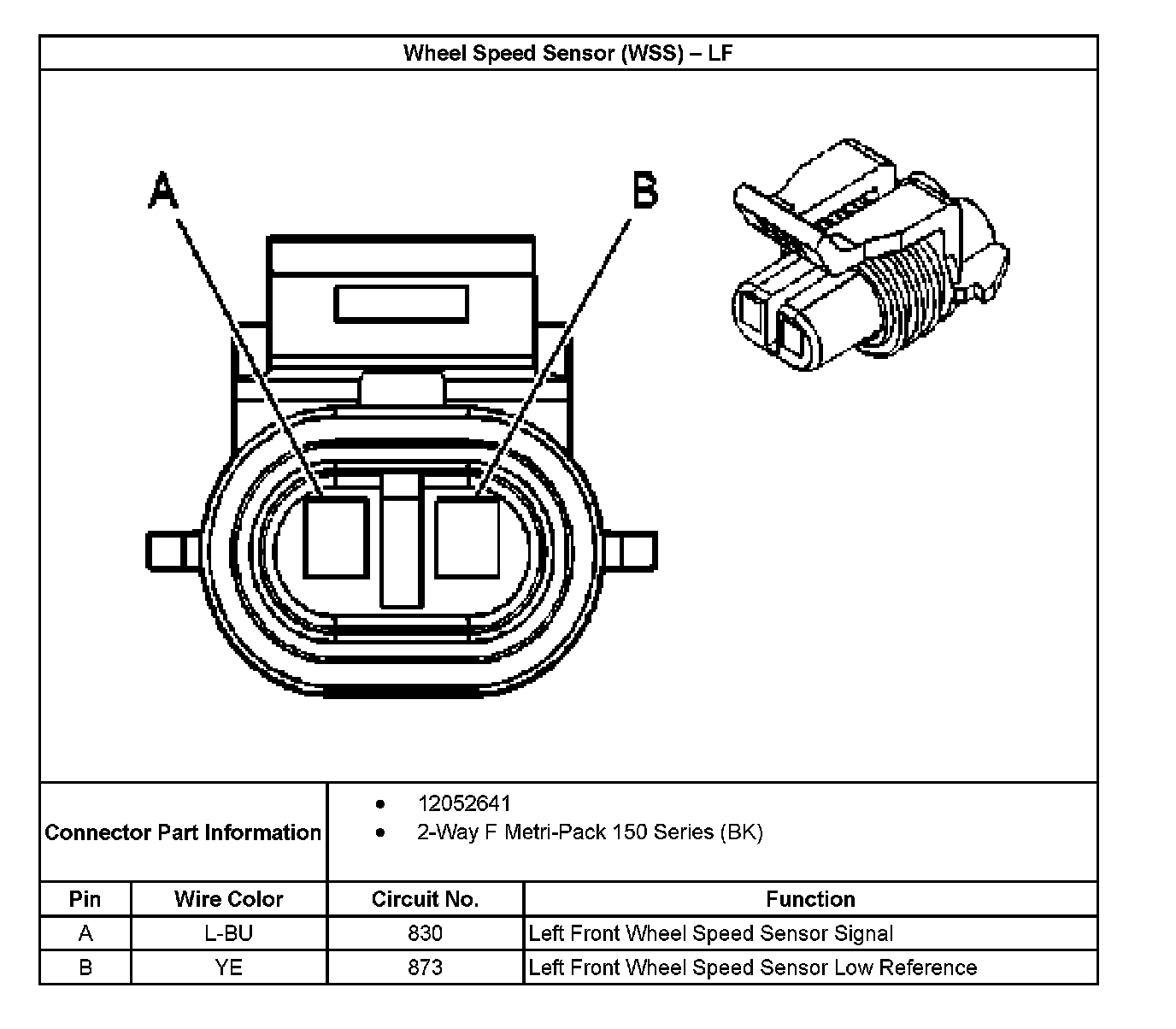

Wheel Speed Sensor - LF:

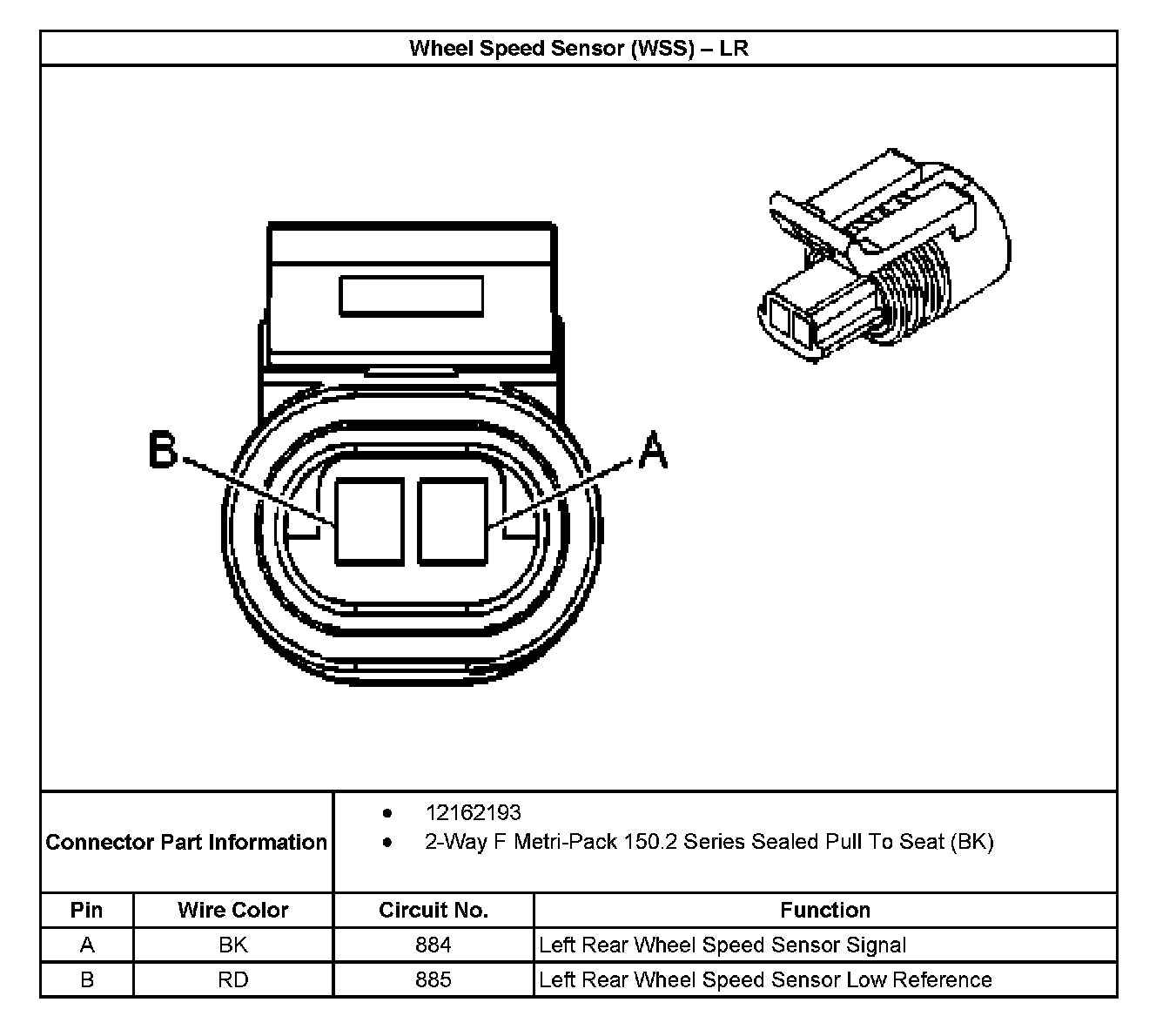

Wheel Speed Sensor - LR:

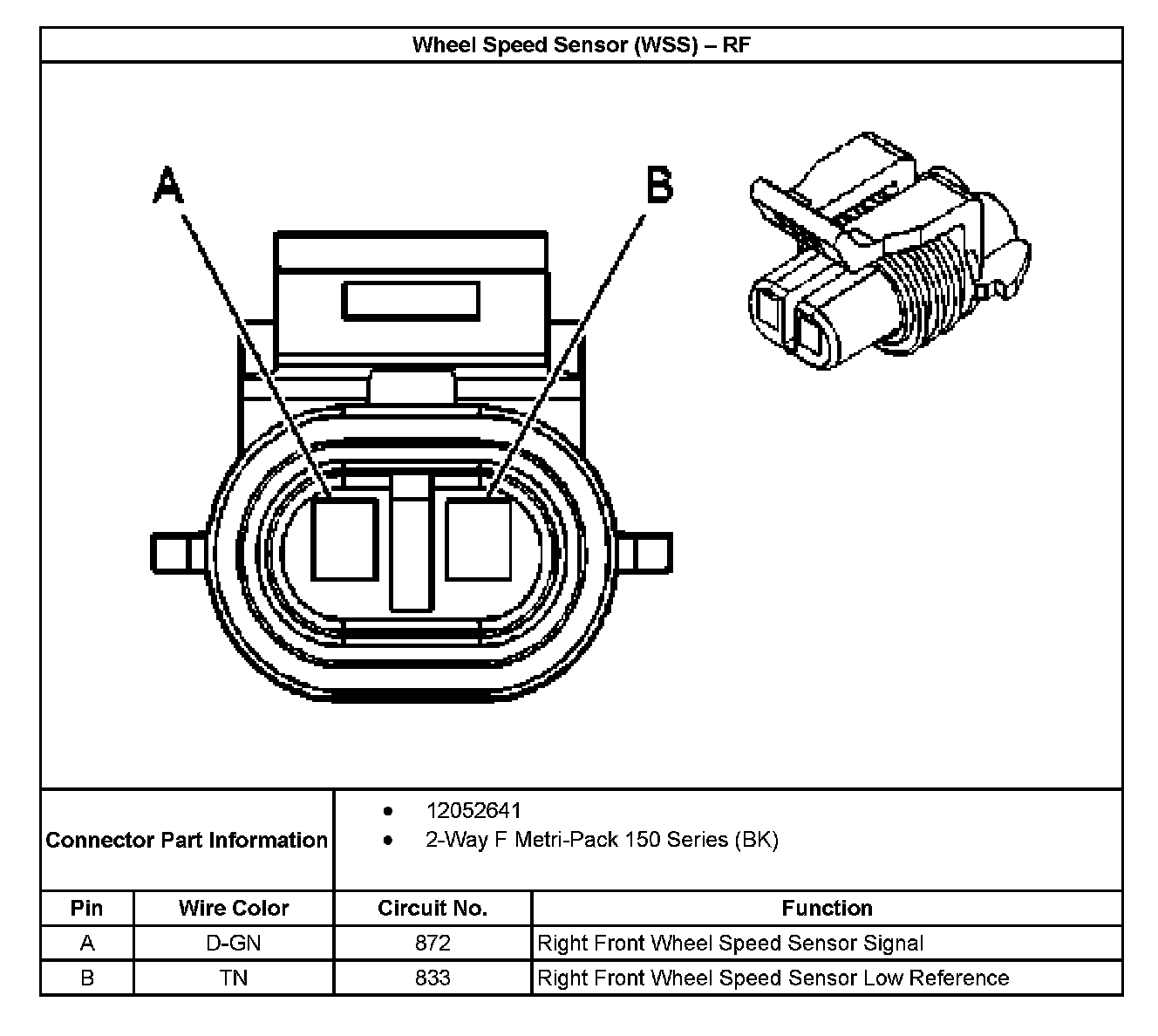

Wheel Speed Sensor - RF:

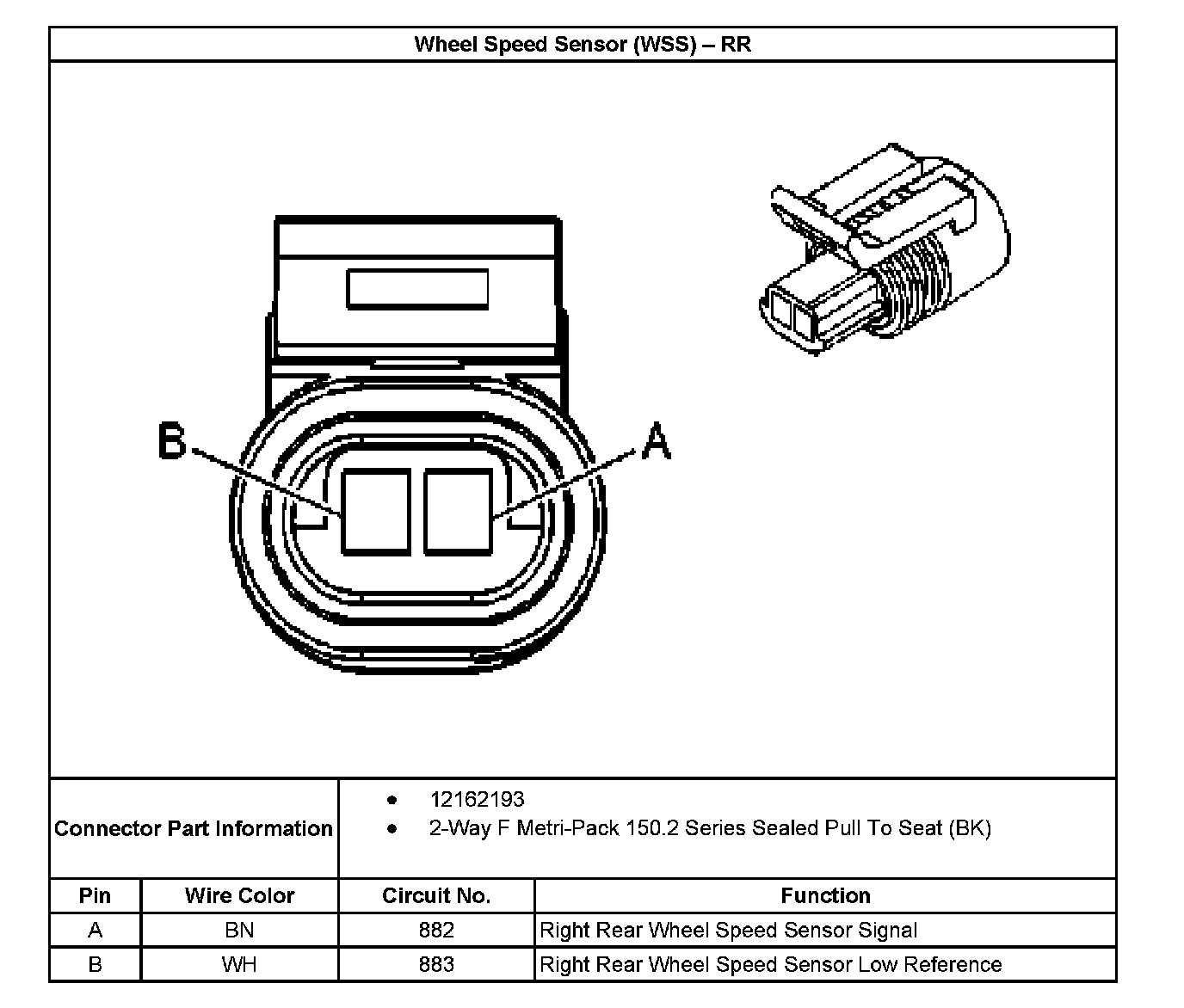

Wheel Speed Sensor - RR:
