Seat Temperature Control Module
Seat Temperature Control Module

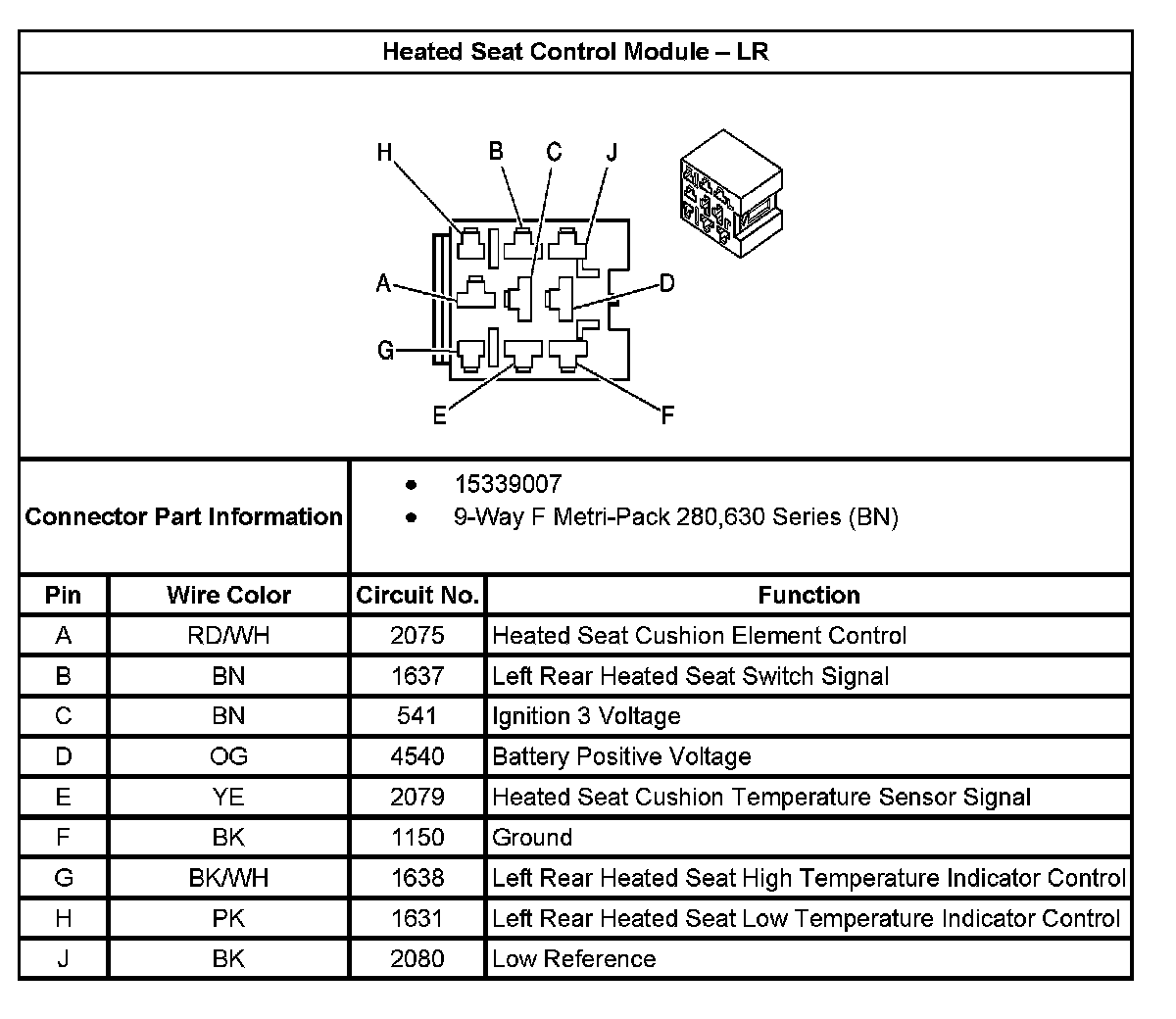

Heated Seat Control Module - LR:

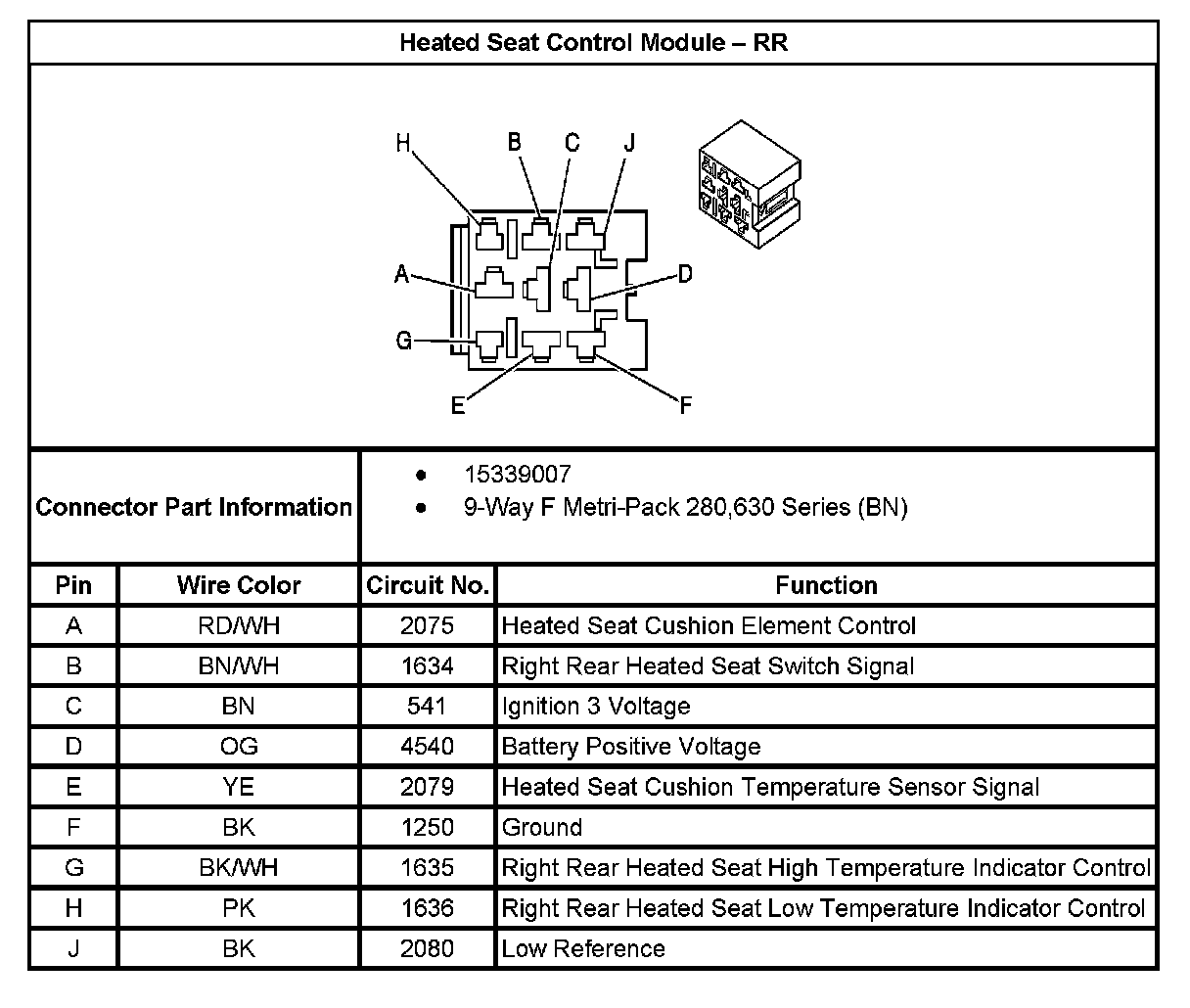

Heated Seat Control Module - RR:
