Map Light
Map Light

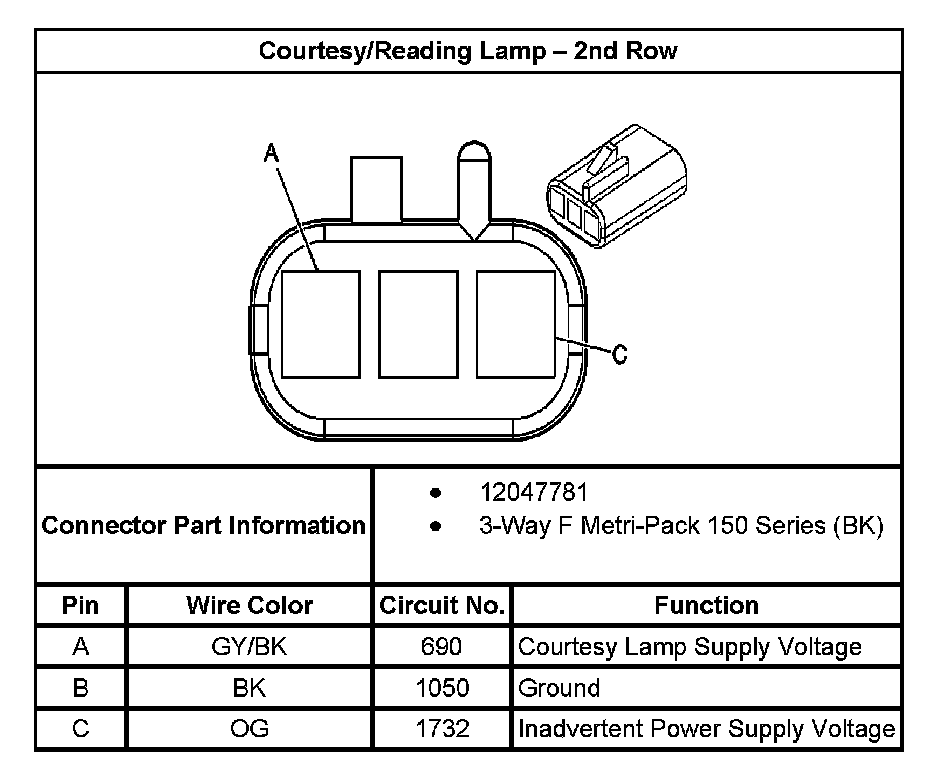

Courtesy/Reading Lamp - 2nd Row:

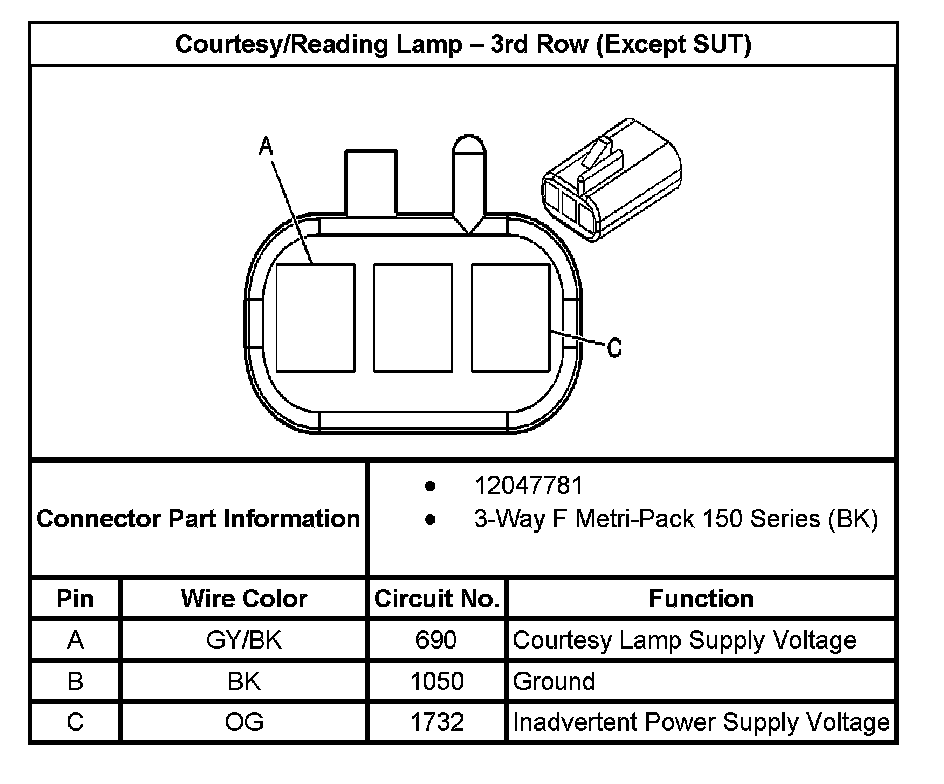

Courtesy/Reading Lamp - 3rd Row (Except SUT):

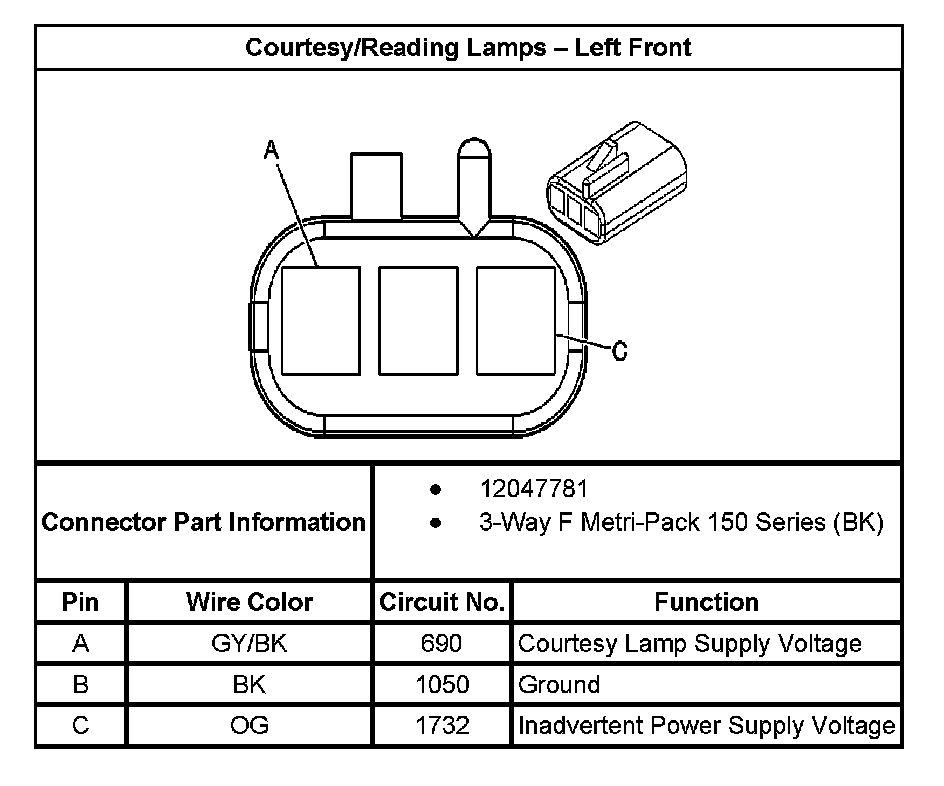

Courtesy/Reading Lamps - Left Front:

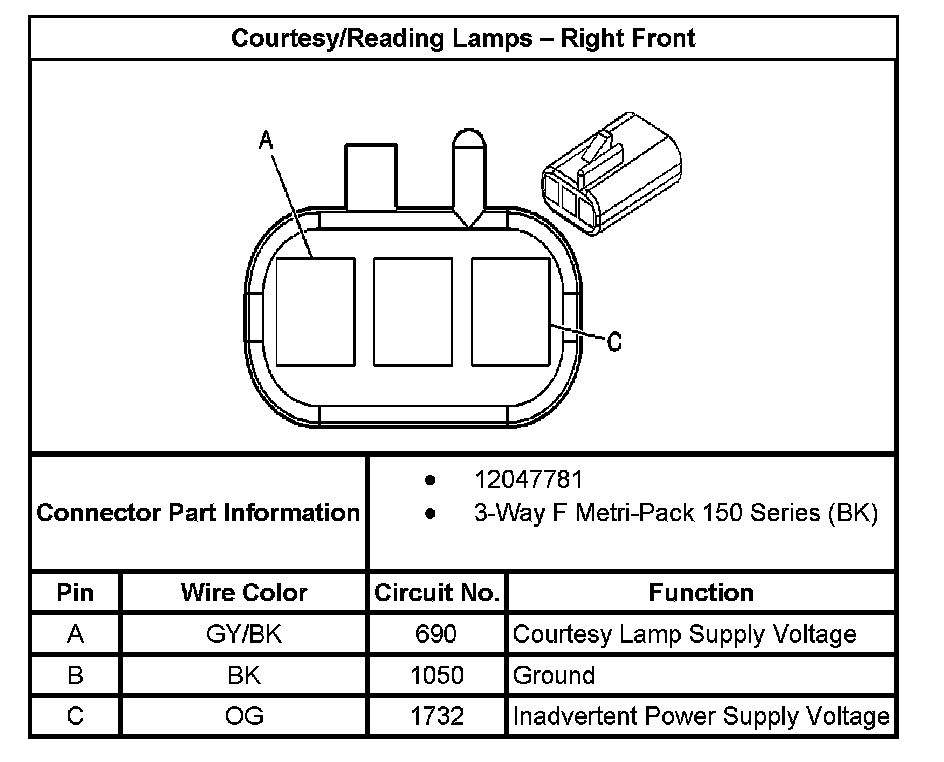

Courtesy/Reading Lamps - Right Front:
