Powertrain Control Module (PCM) - C1

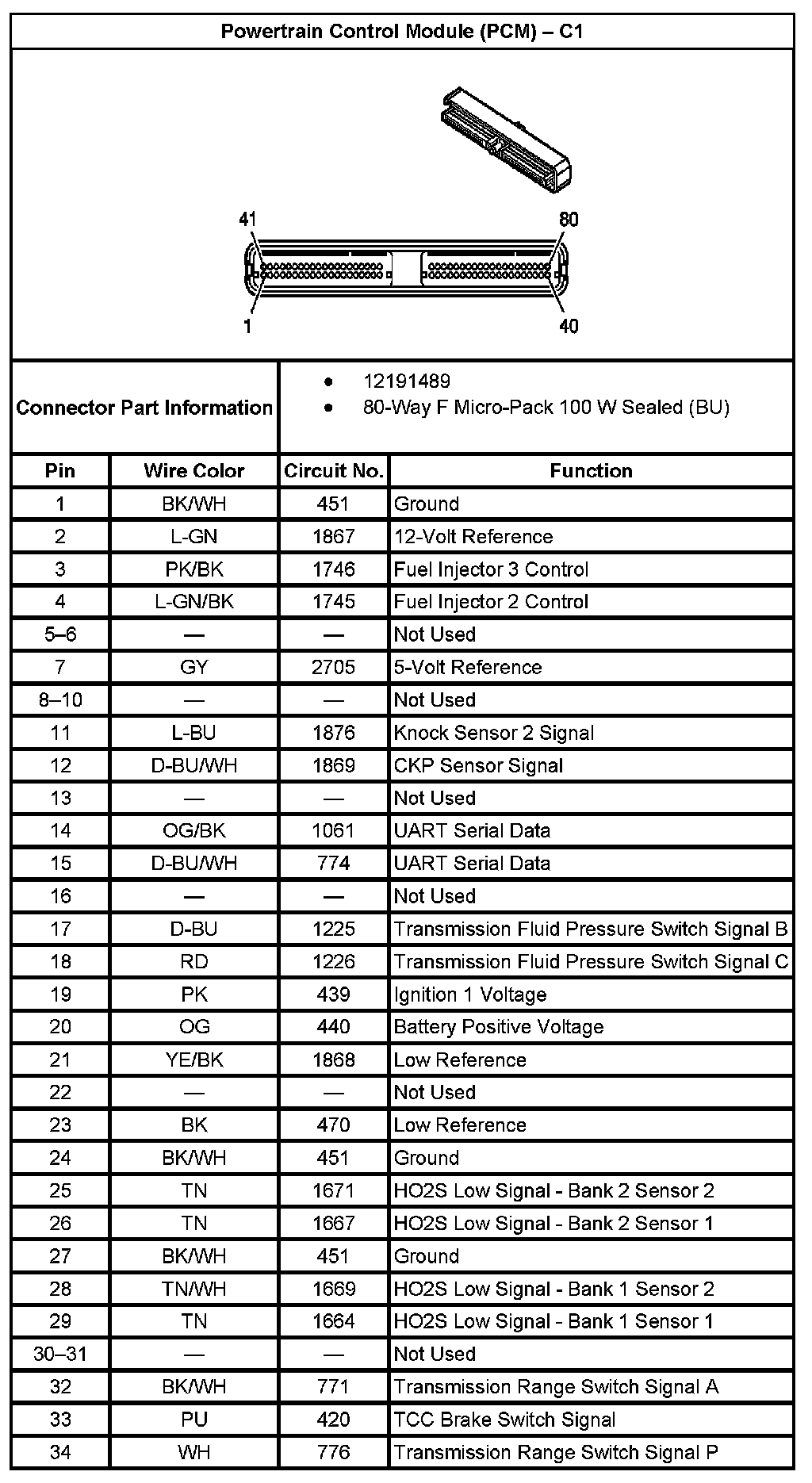

Powertrain Control Module (PCM) - C1 (Part 1):

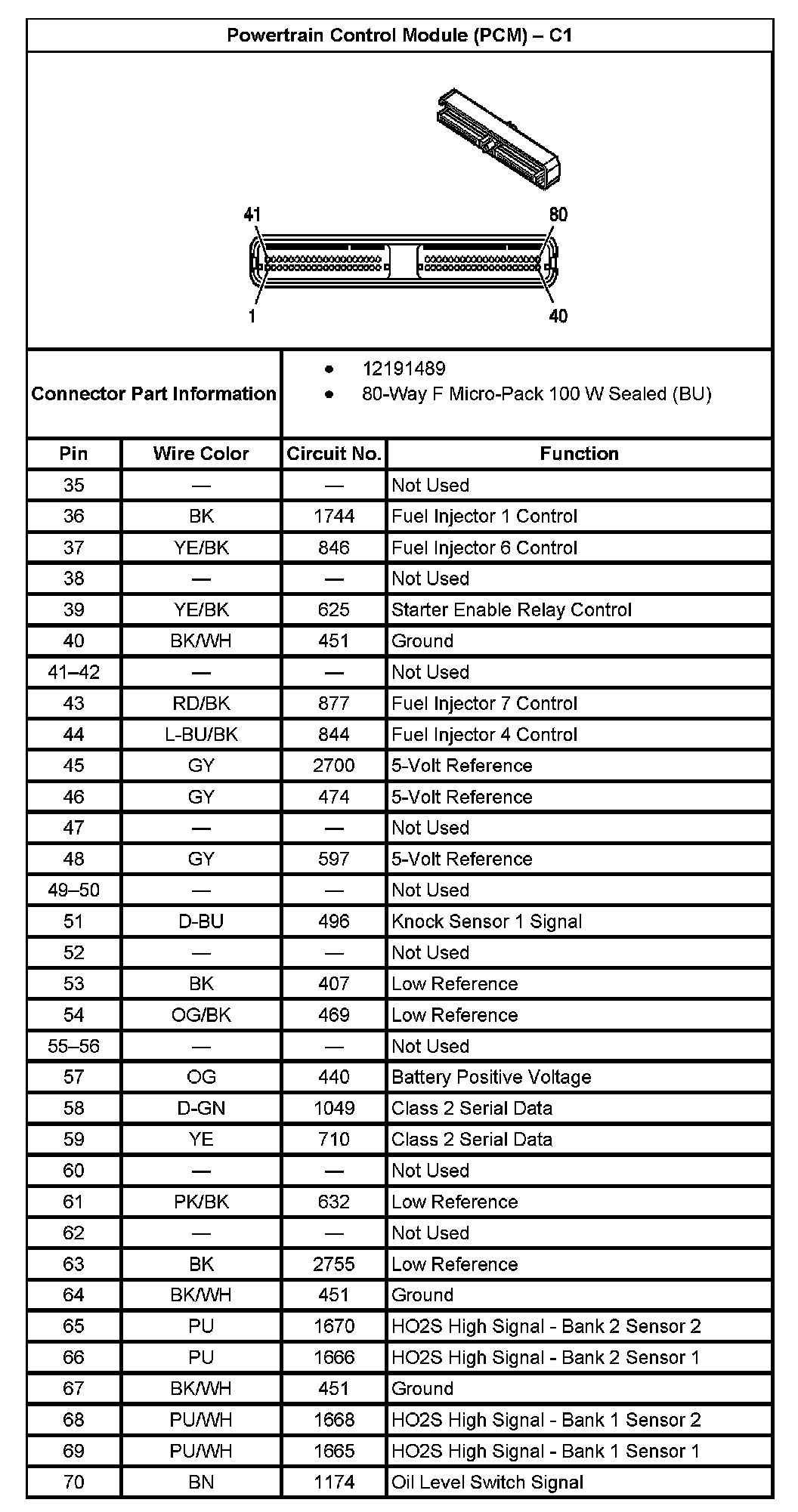

Powertrain Control Module (PCM) - C1 (Part 2):

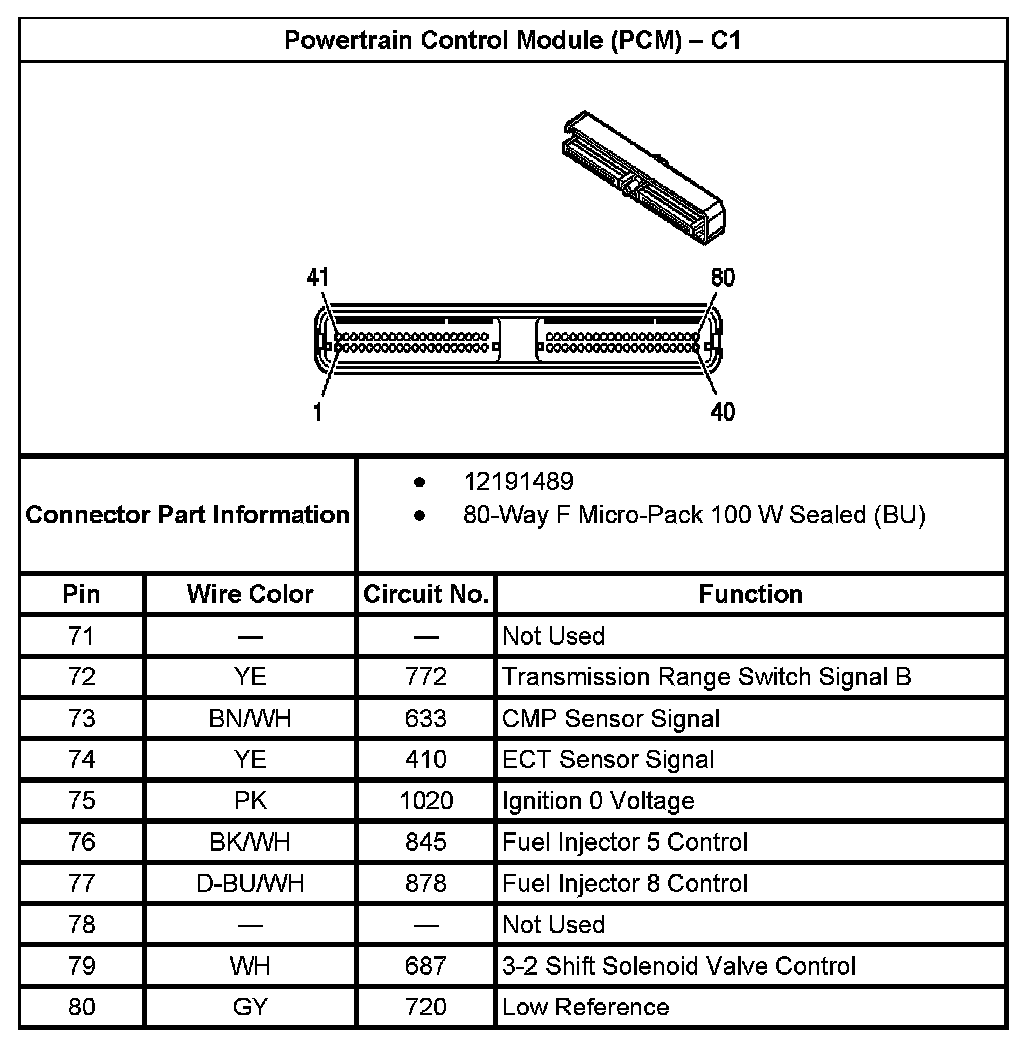

Powertrain Control Module (PCM) - C1 (Part 3):
