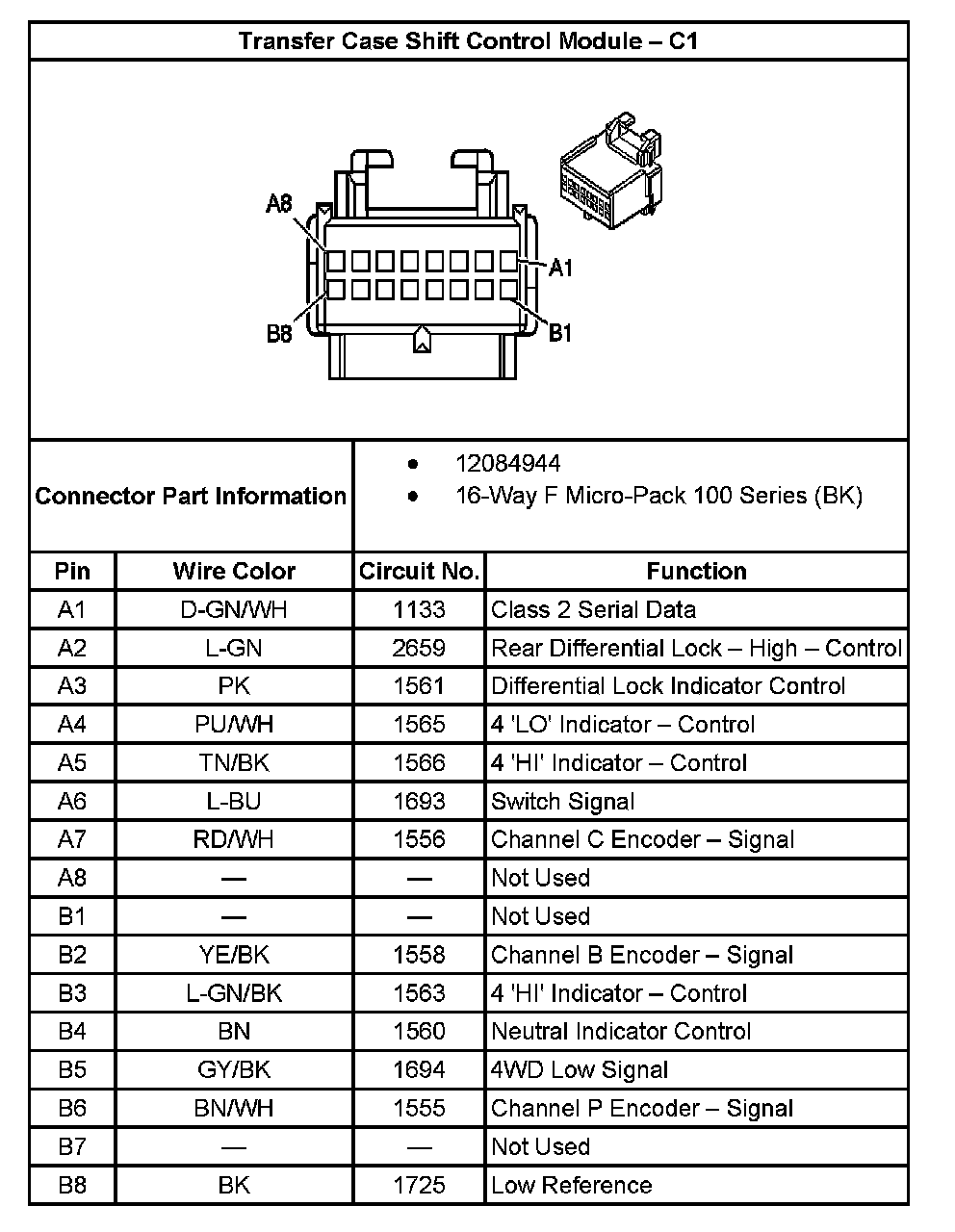

Transfer Case Shift Control Module - C1
Transfer Case Shift Control Module - C1
Transfer Case Shift Control Module - C1:
