Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp

Brake Lamp

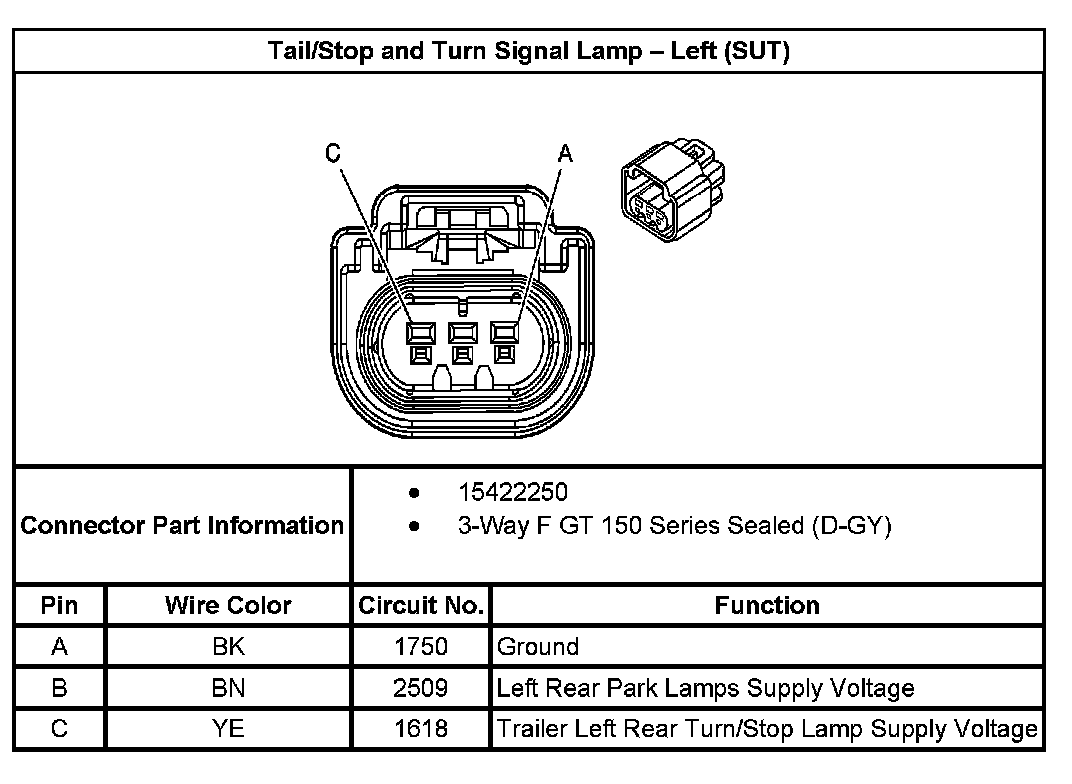

Tail/Stop And Turn Signal Lamp - Left (SUT):

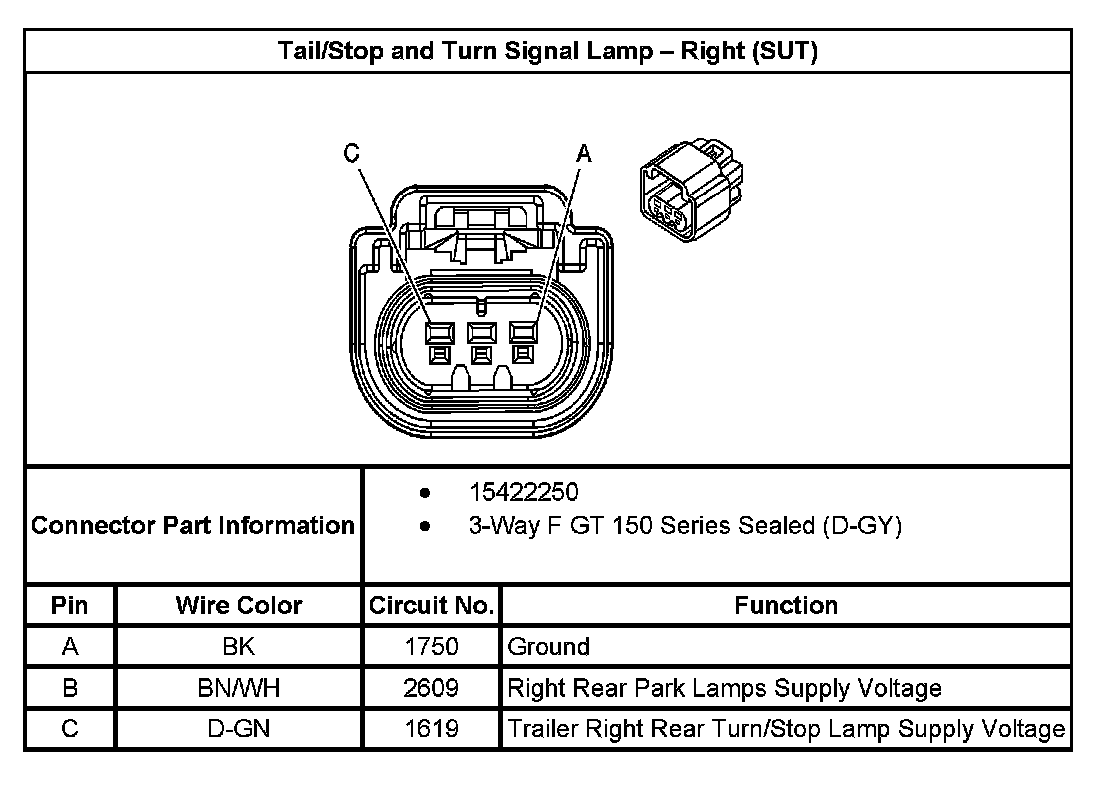

Tail/Stop And Turn Signal Lamp - Right (SUT):
