Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Components

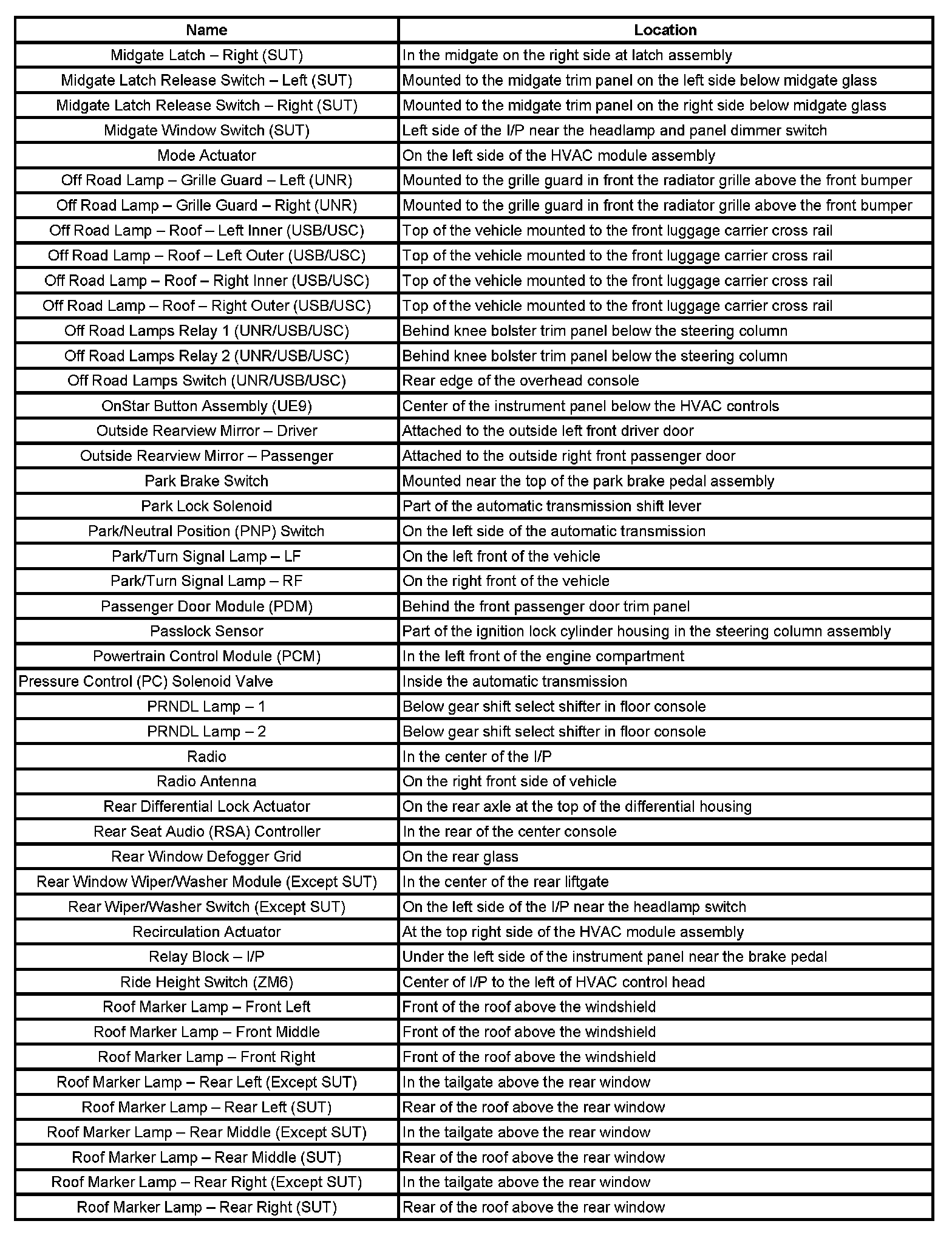

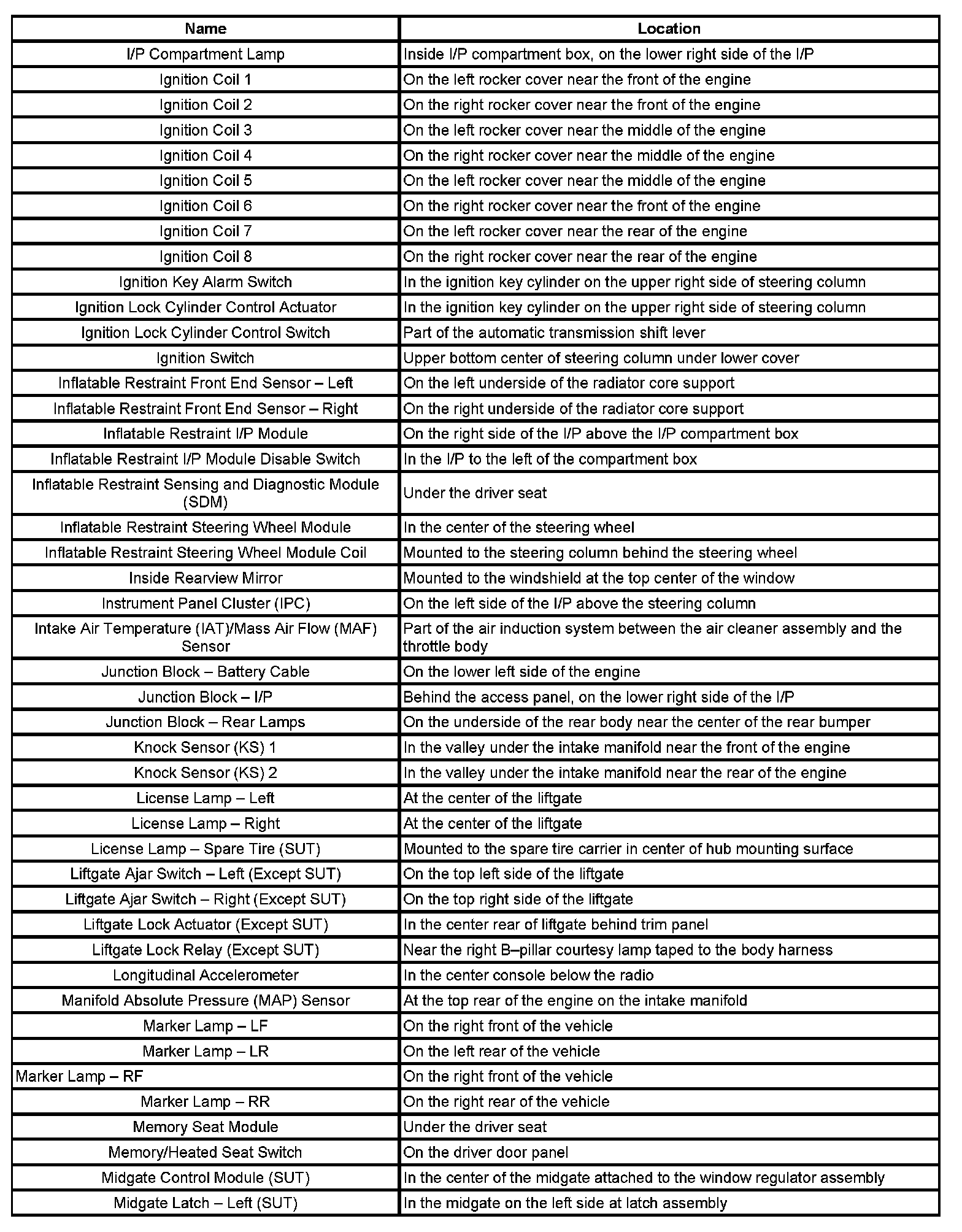

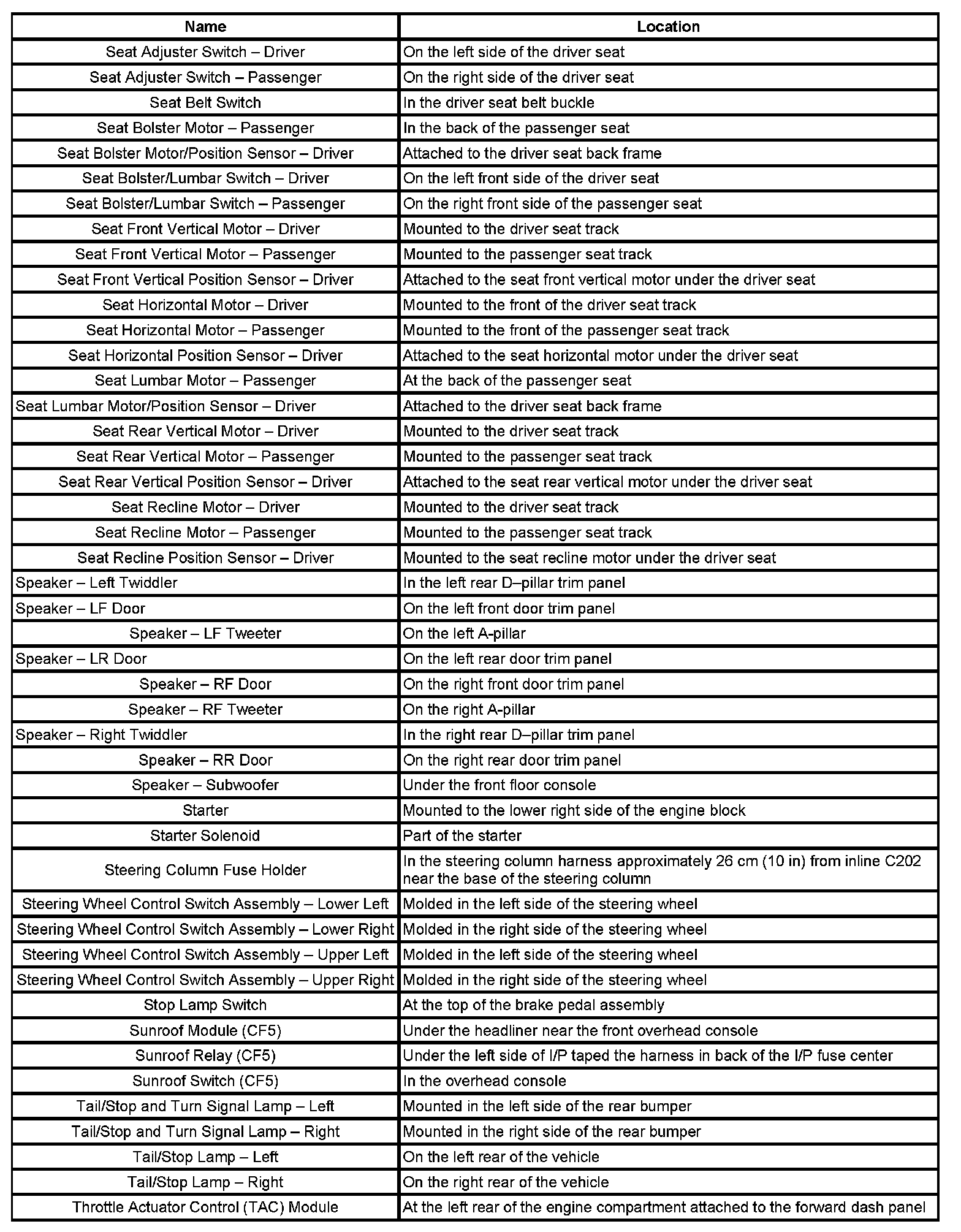

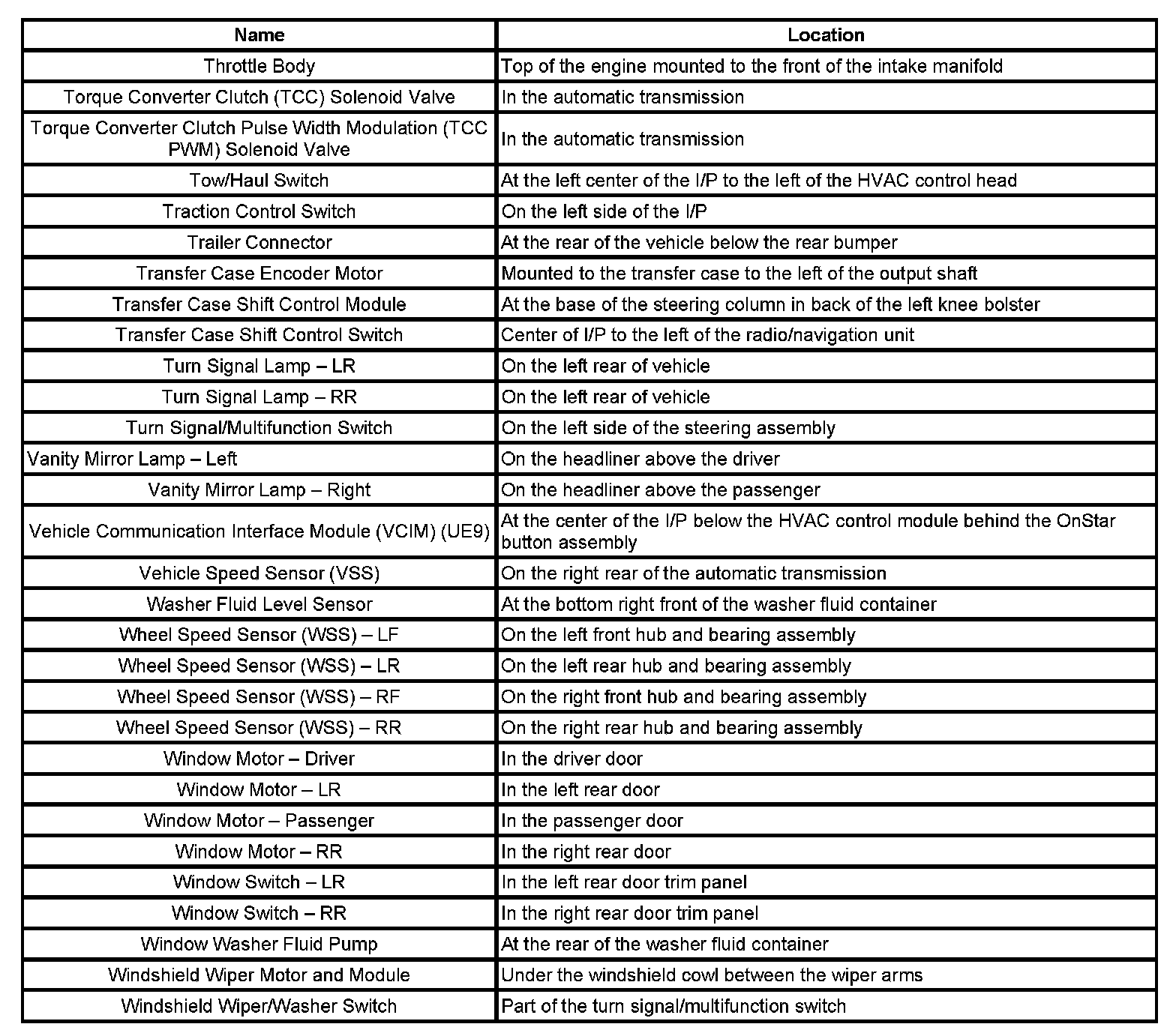

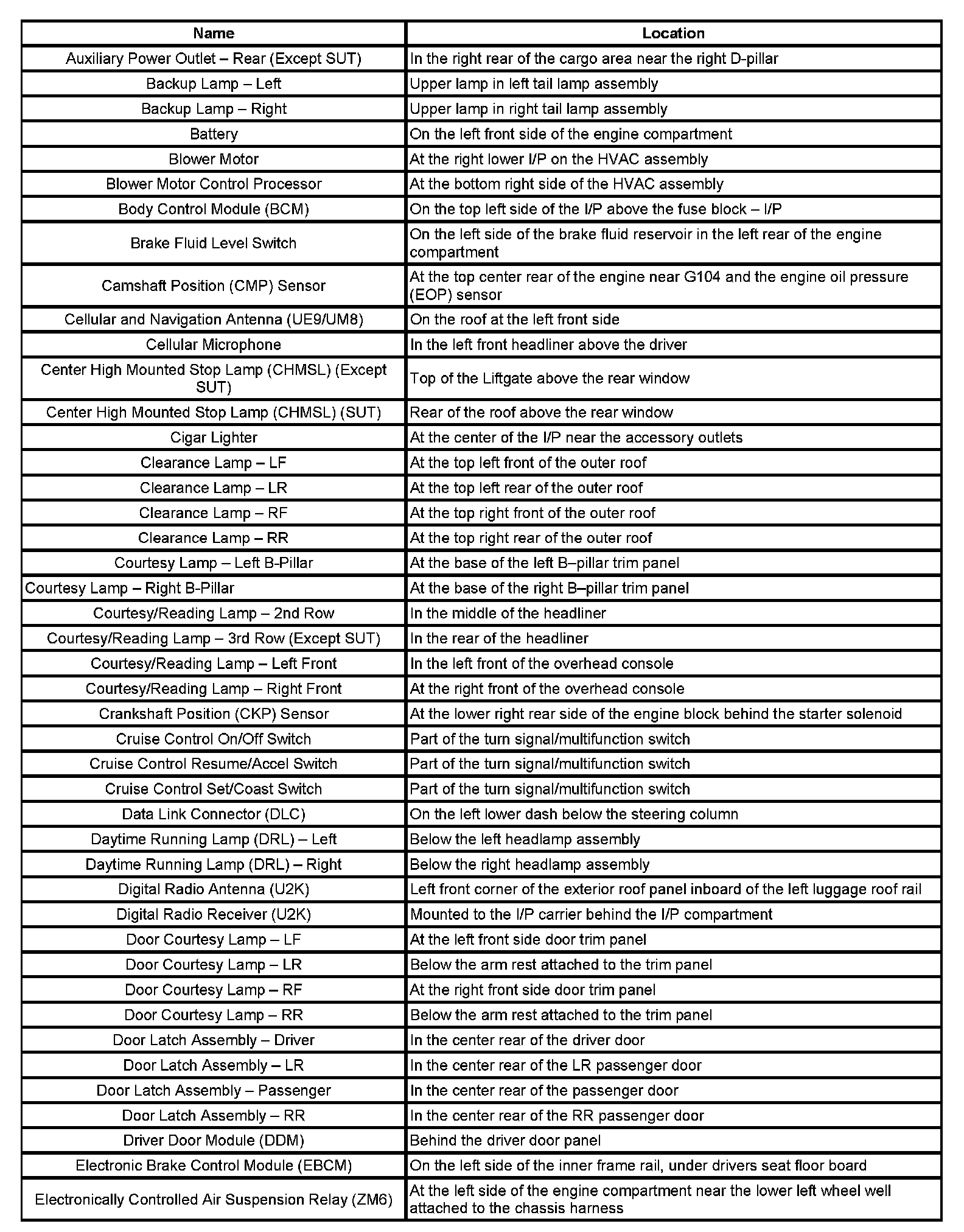

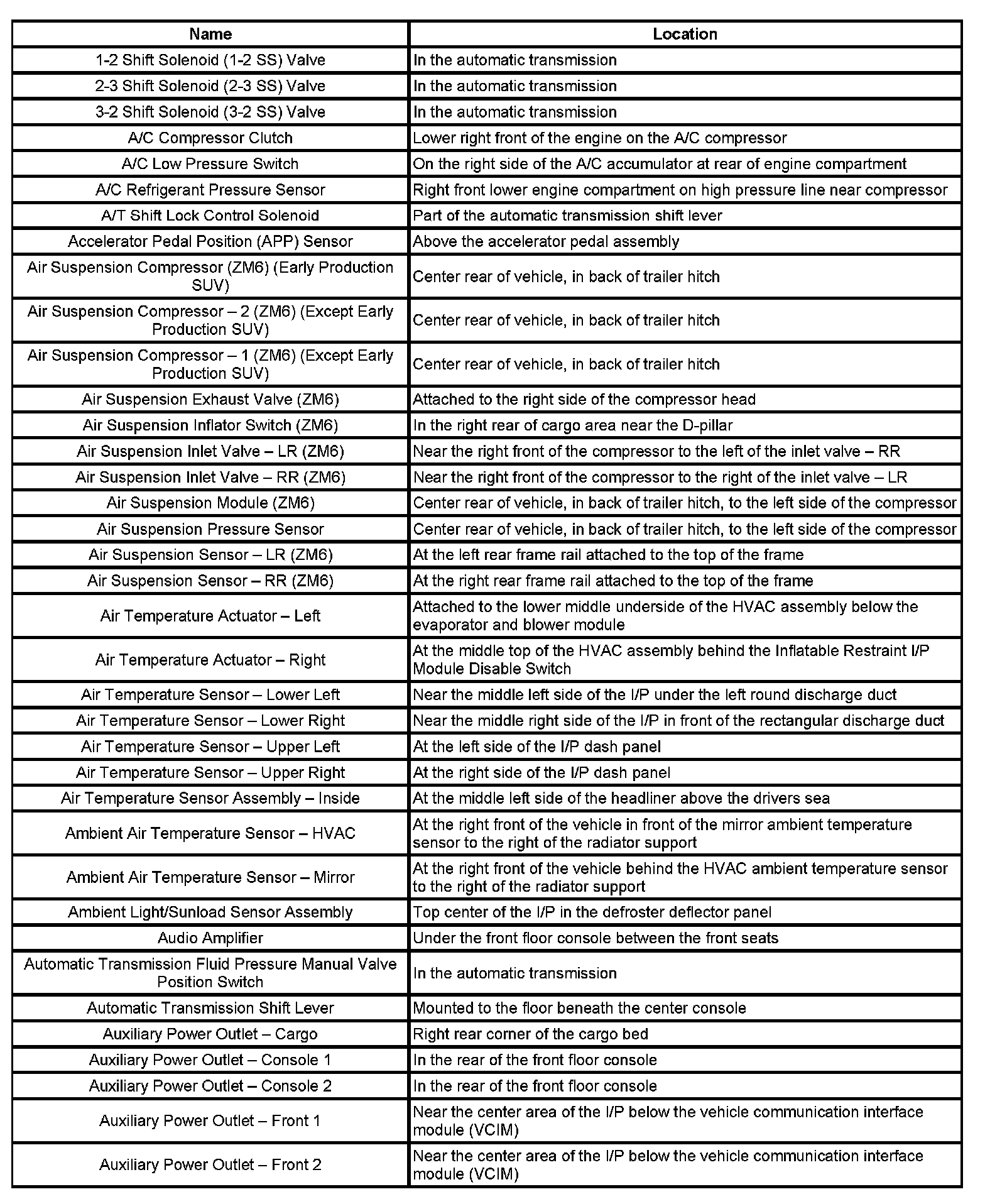

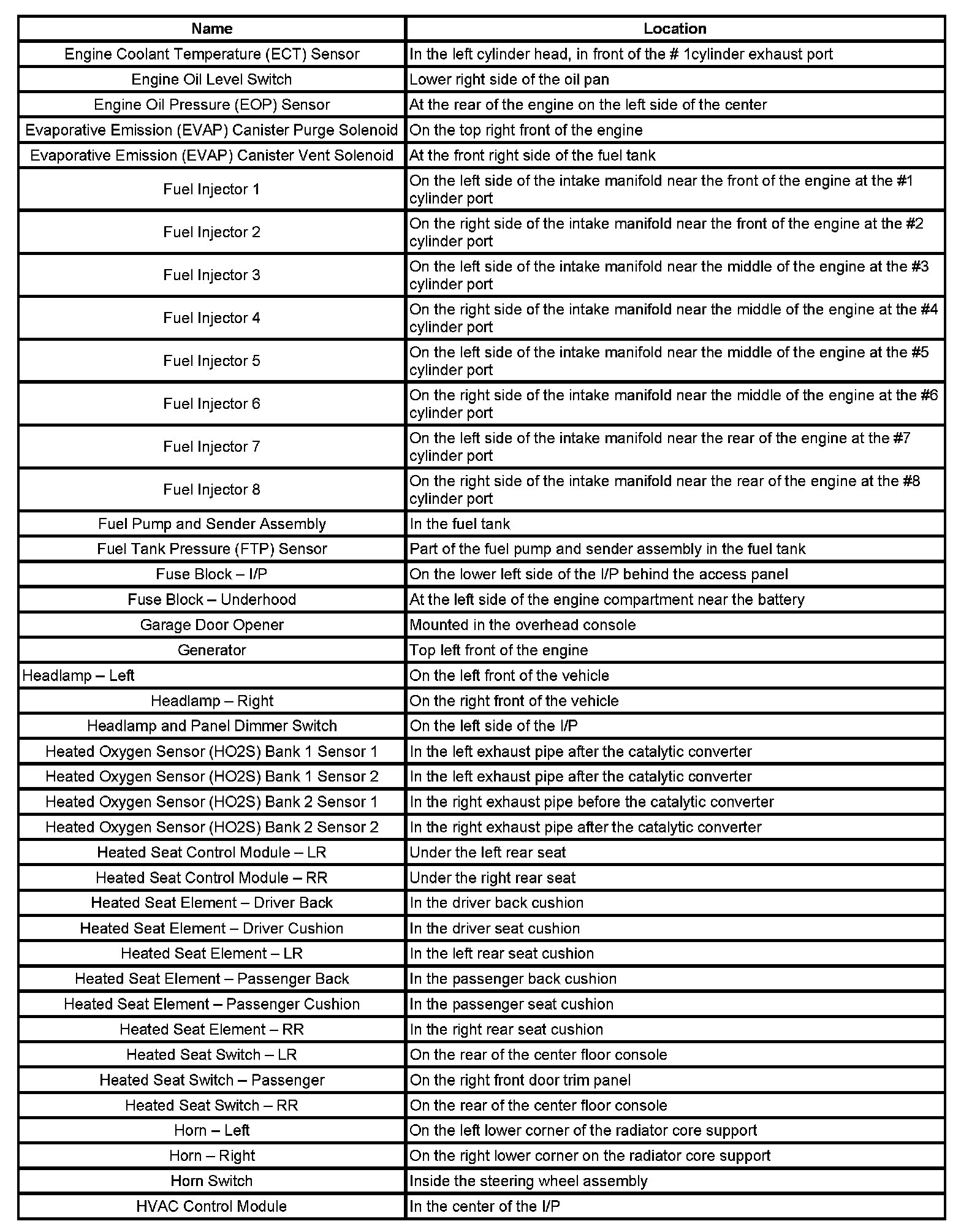

Components



1-2 Sh - Au:




Au - El:




En - HV:




I/P Co - Mi:




Mi - Ro:




Se - Th:




Th - Wi:
