Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Body Control Module (BCM) - C4

Body Control Module (BCM) - C4

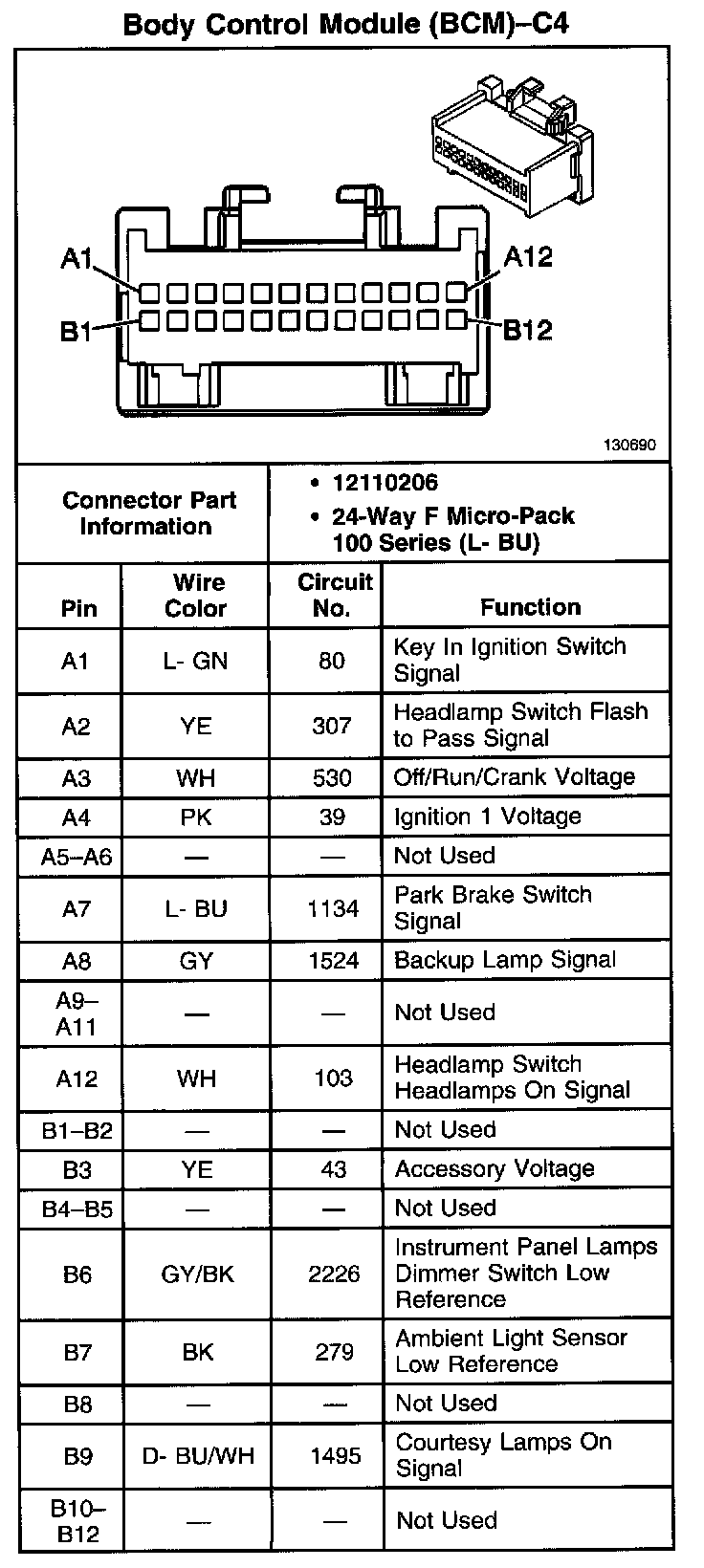

Body Control Module (BCM)-C4:
