Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Locations >> Splice Locations >> Master Splice List

Master Splice List

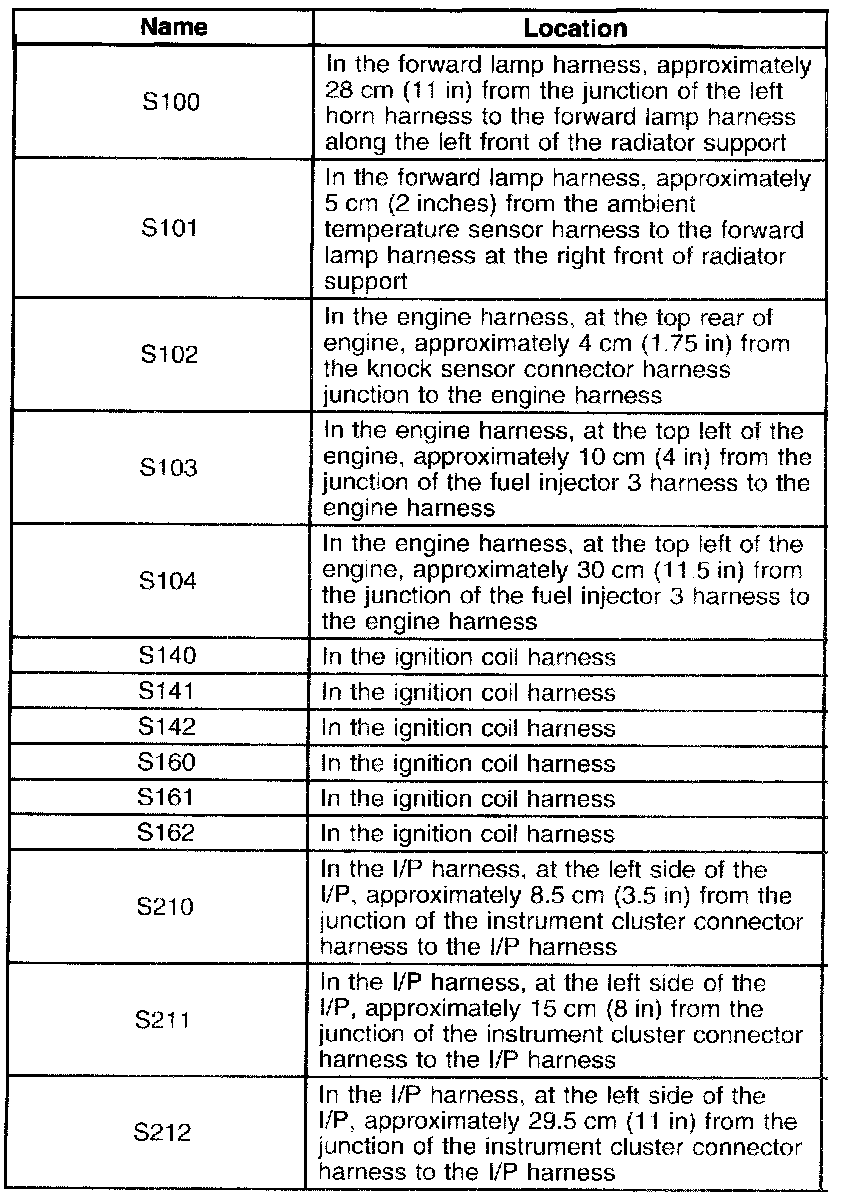

S100 - S212:

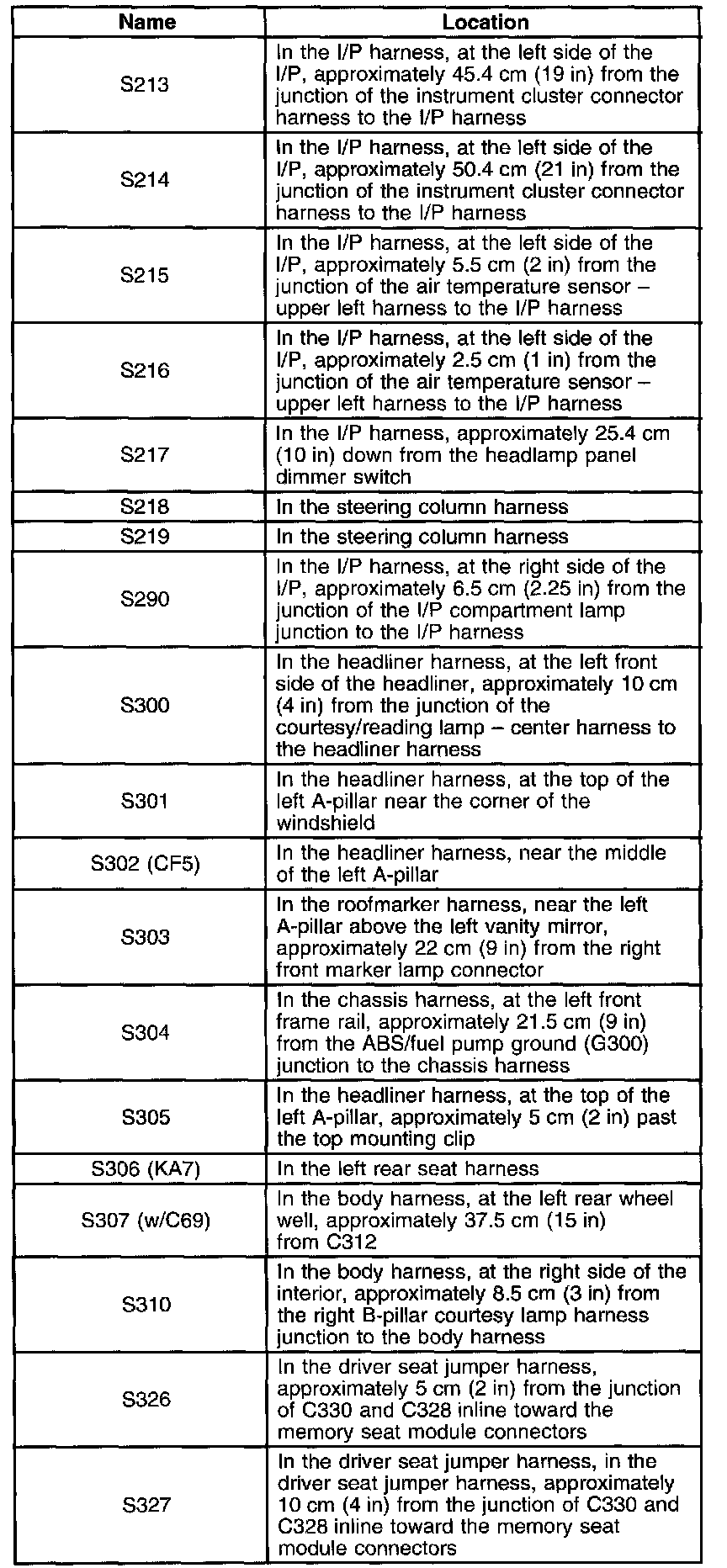

S213 - S327:

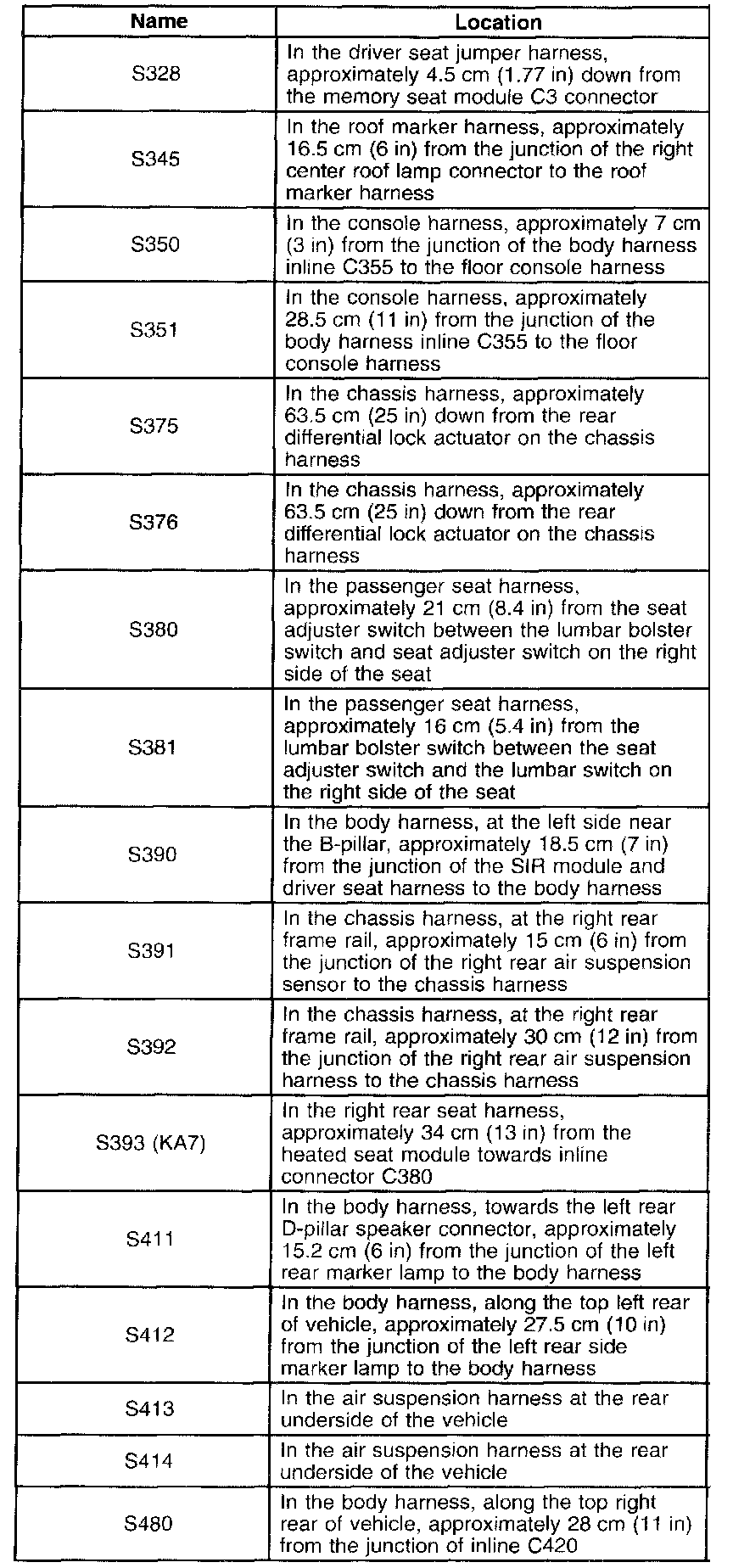

S328 - S480:

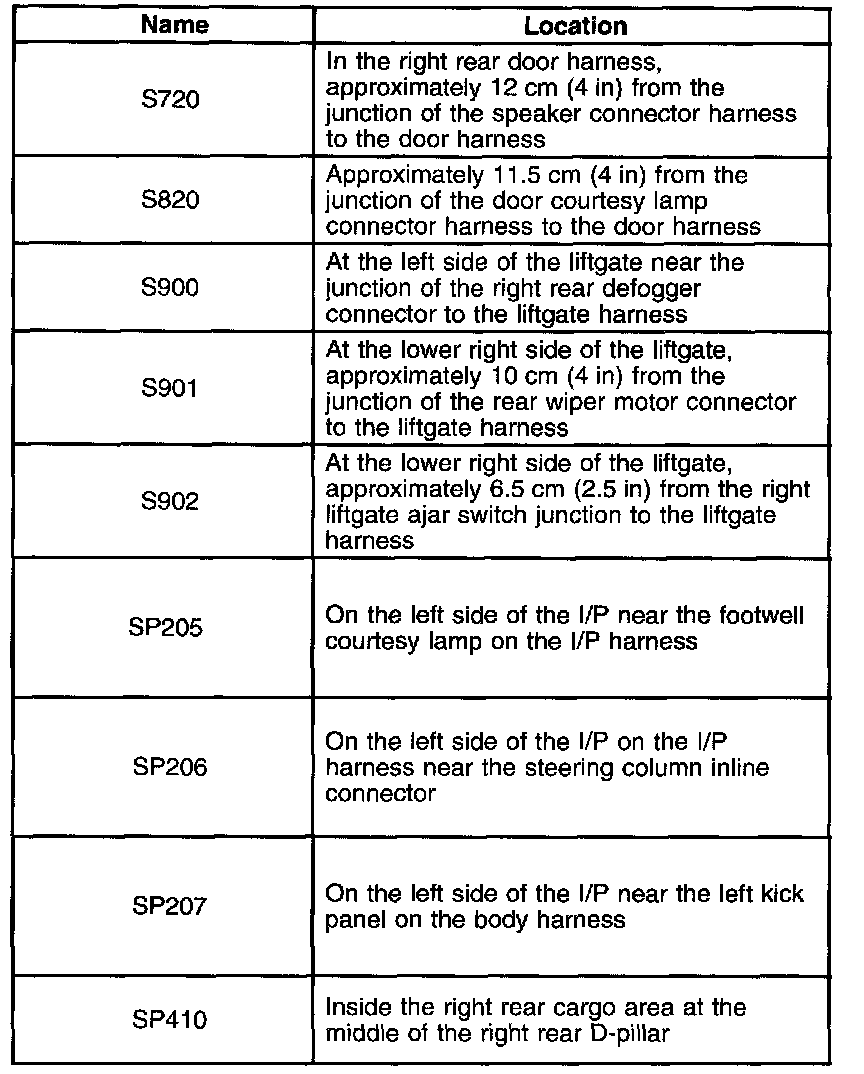

S720 - SP410:
