Hummer
>>
2004
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Instrument Panel Views
Instrument Panel Views

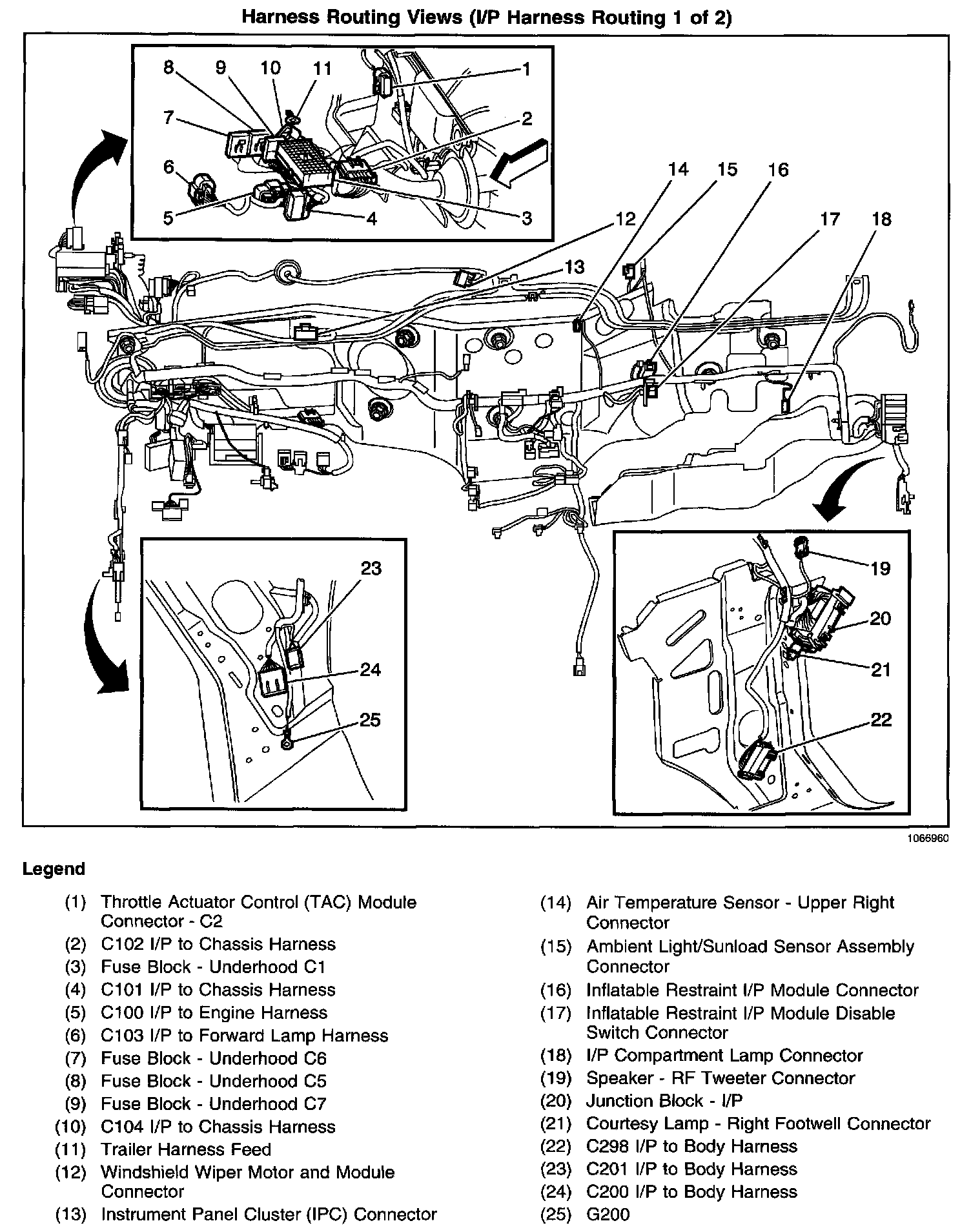

Harness Routing Views (I/P Harness Routing):

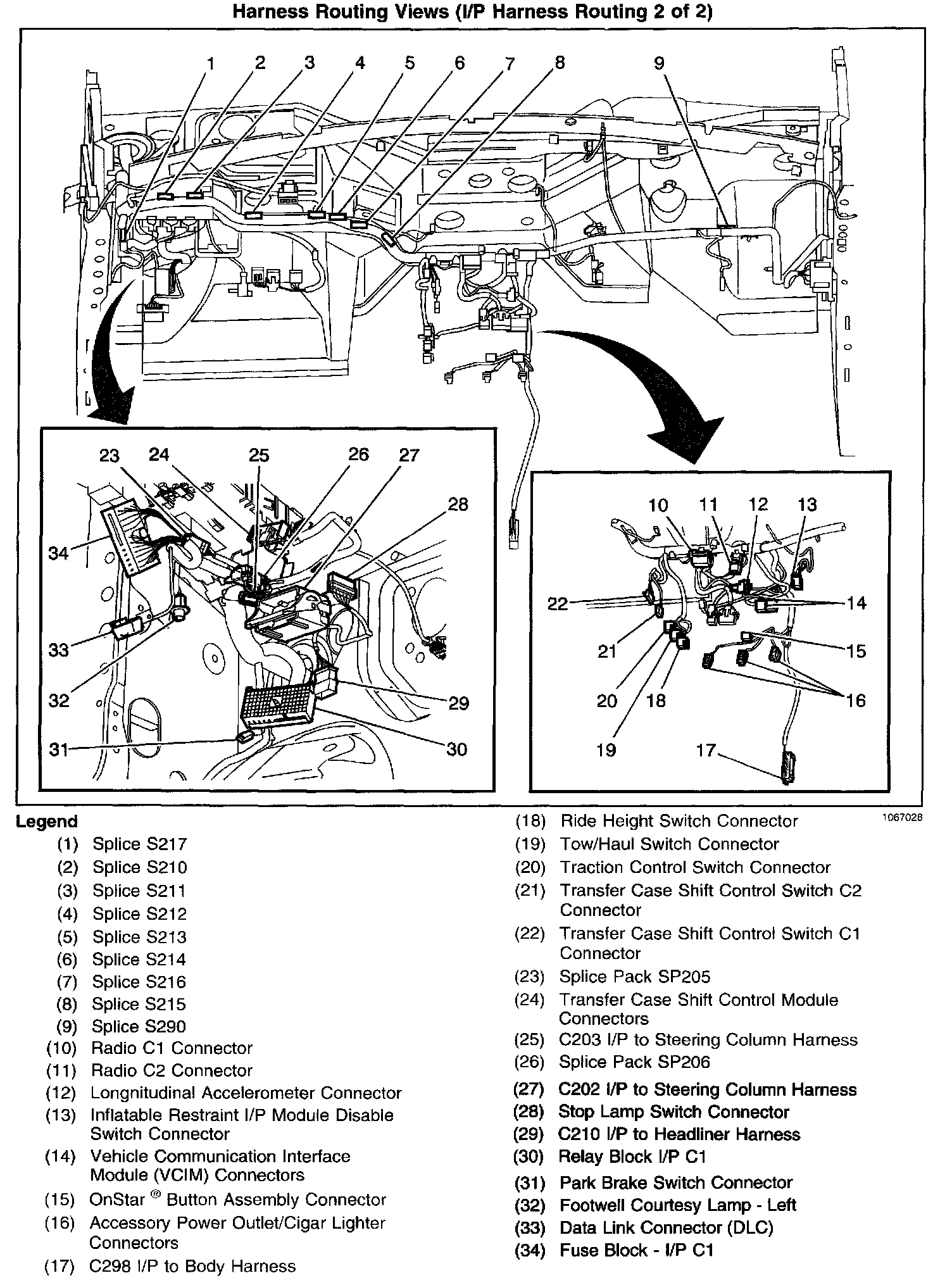

Harness Routing Views (I/P Harness Routing):
