Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> Master Connector List

Master Connector List

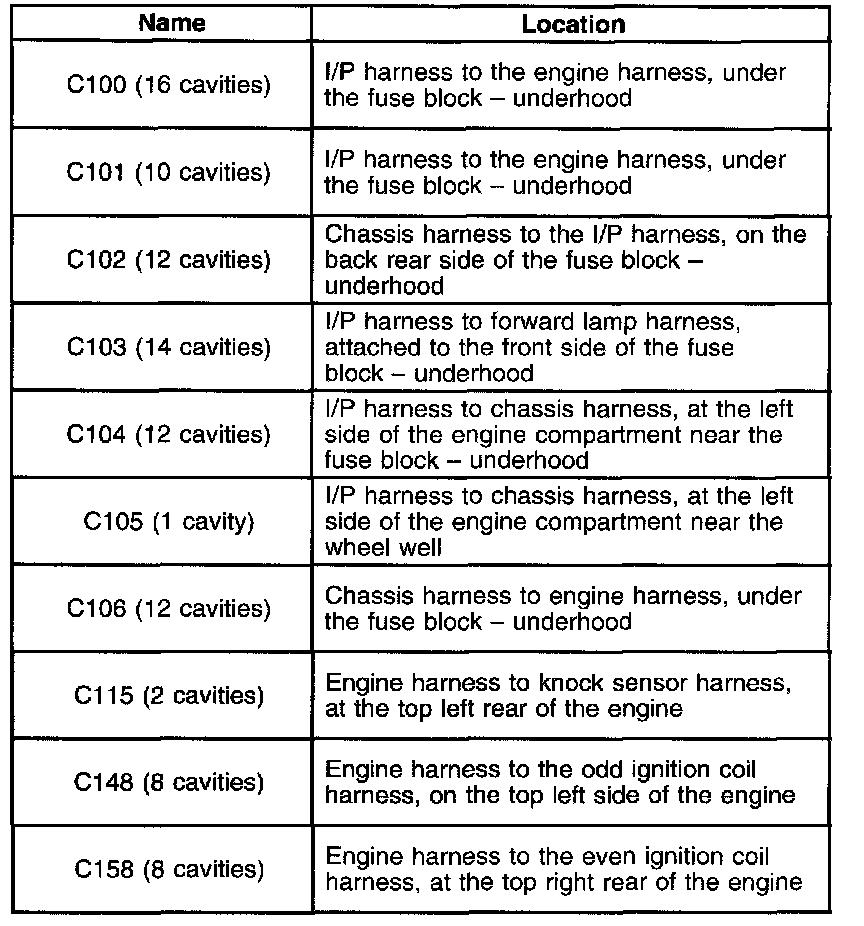

C100 - C158:

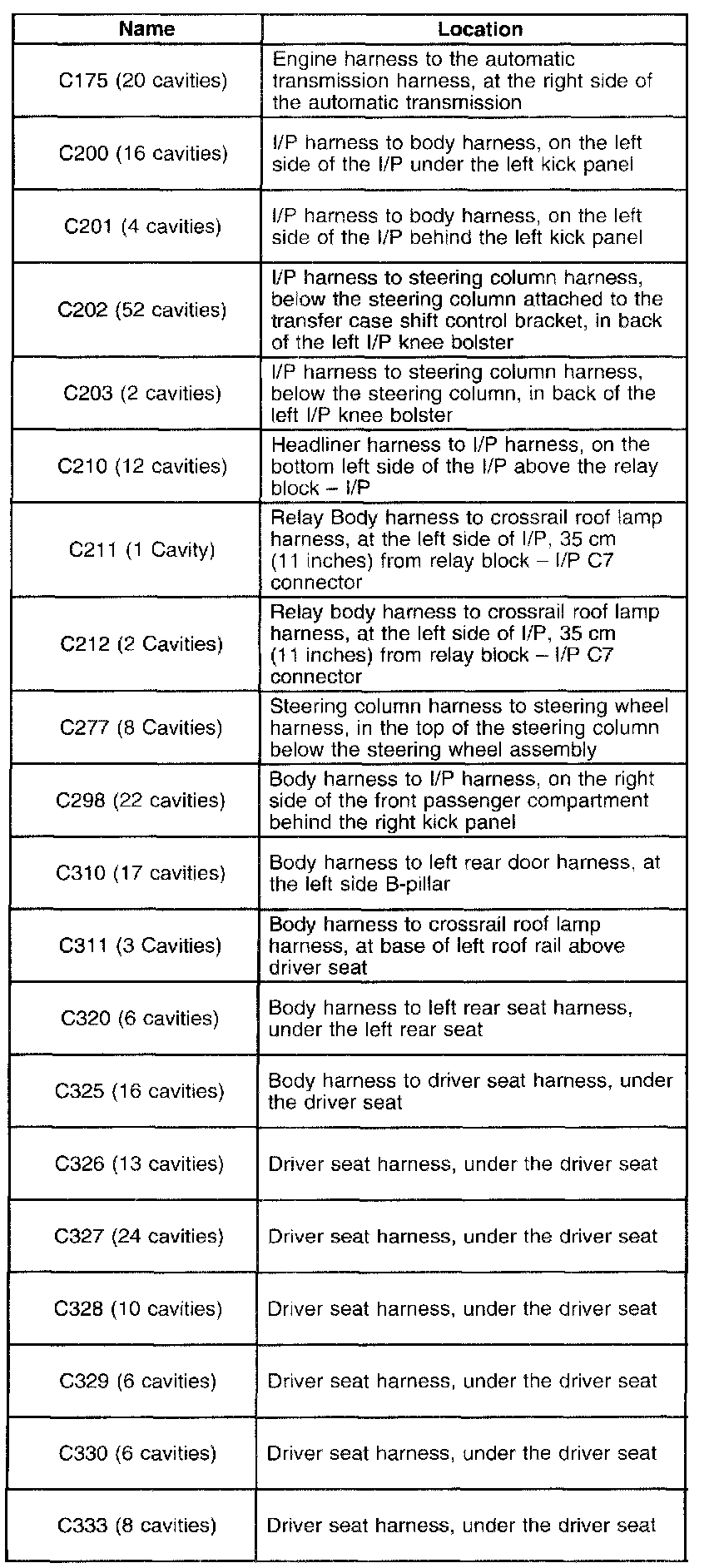

C175 - C333:

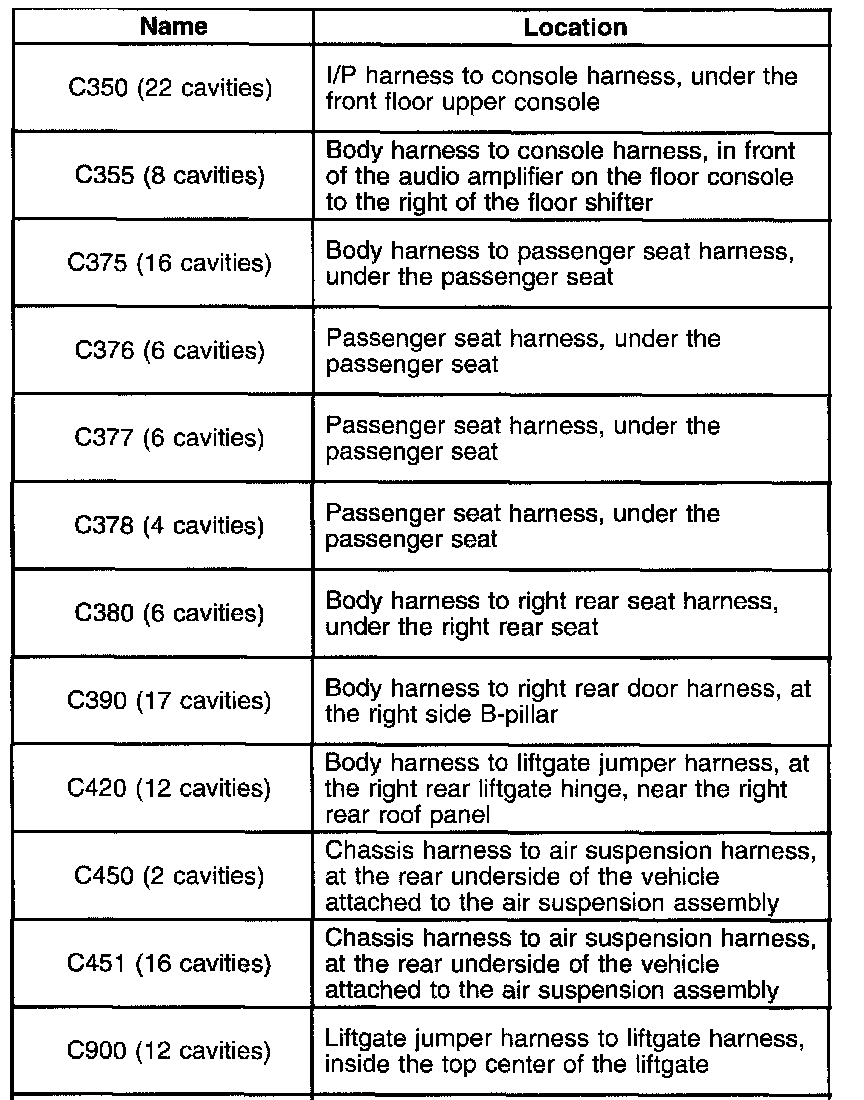

C350 - C900:
