Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold/Upper Engine

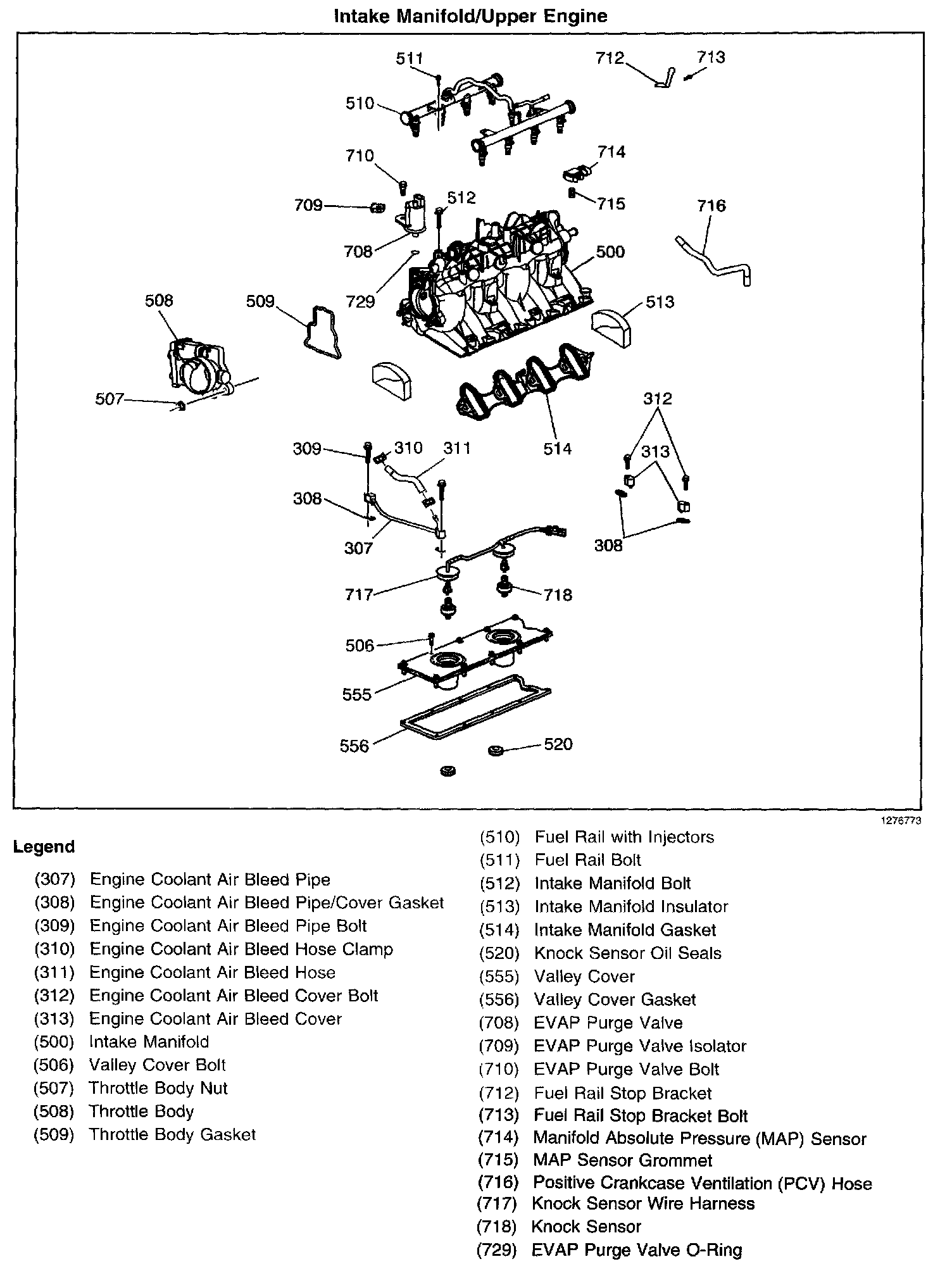

Intake Manifold/Upper Engine

Intake Manifold/Upper Engine:
