Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front Drive Axle

Front Drive Axle

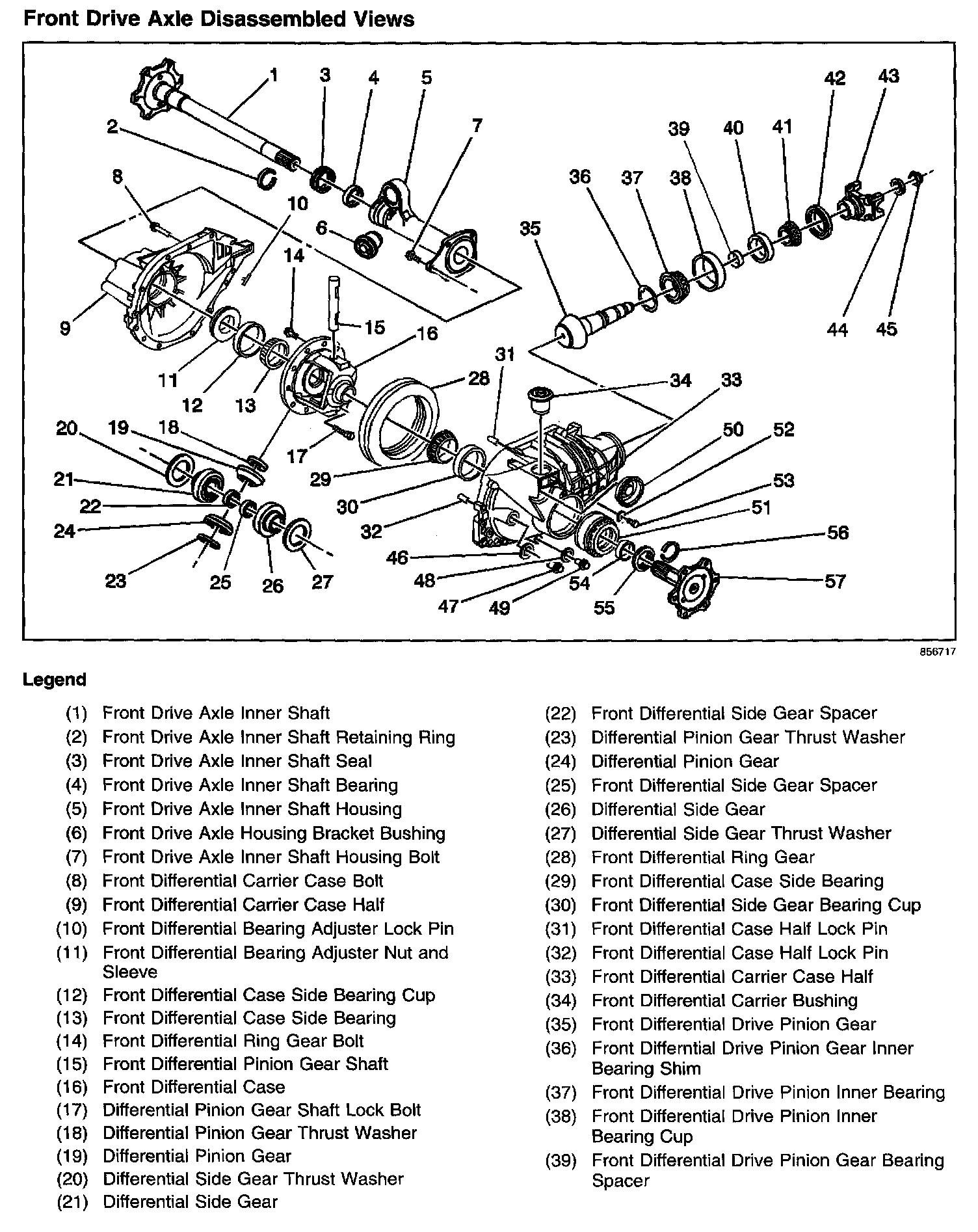

Front Drive Axle Disassembled Views Part 1:

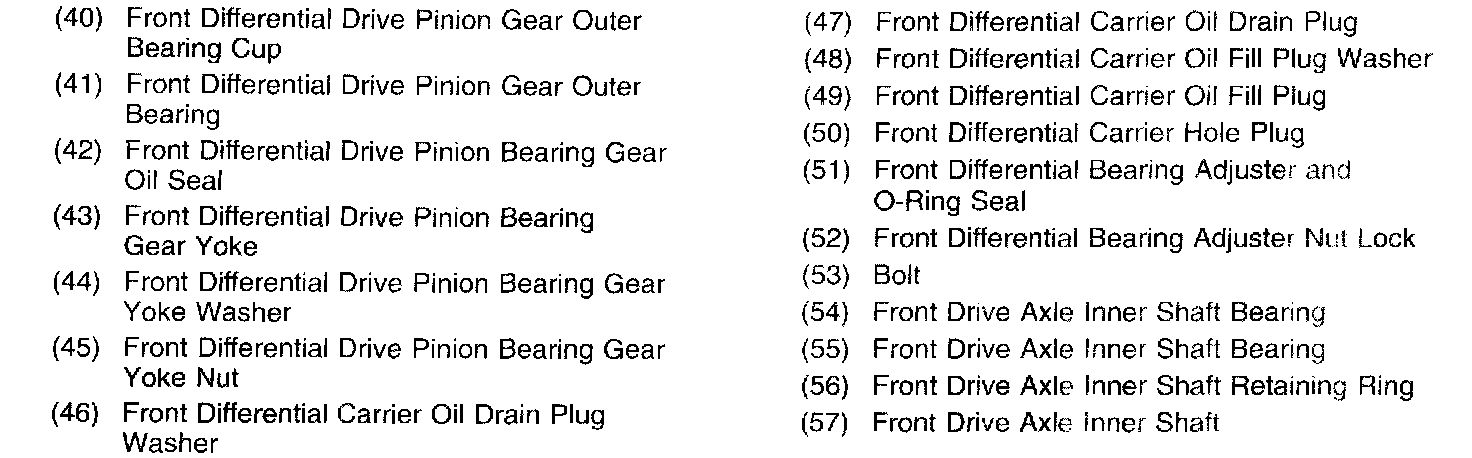

Front Drive Axle Disassembled Views Part 2:
