Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Parts

Internal Parts

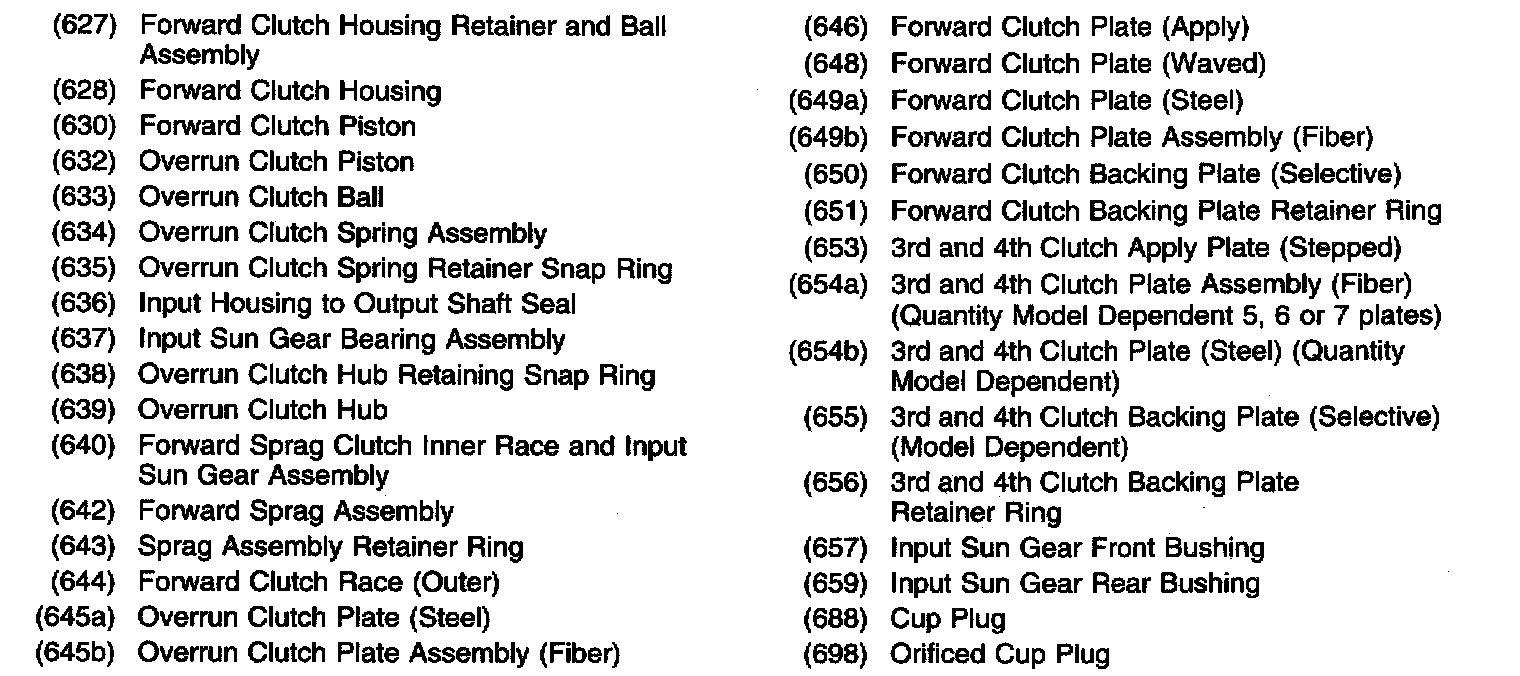

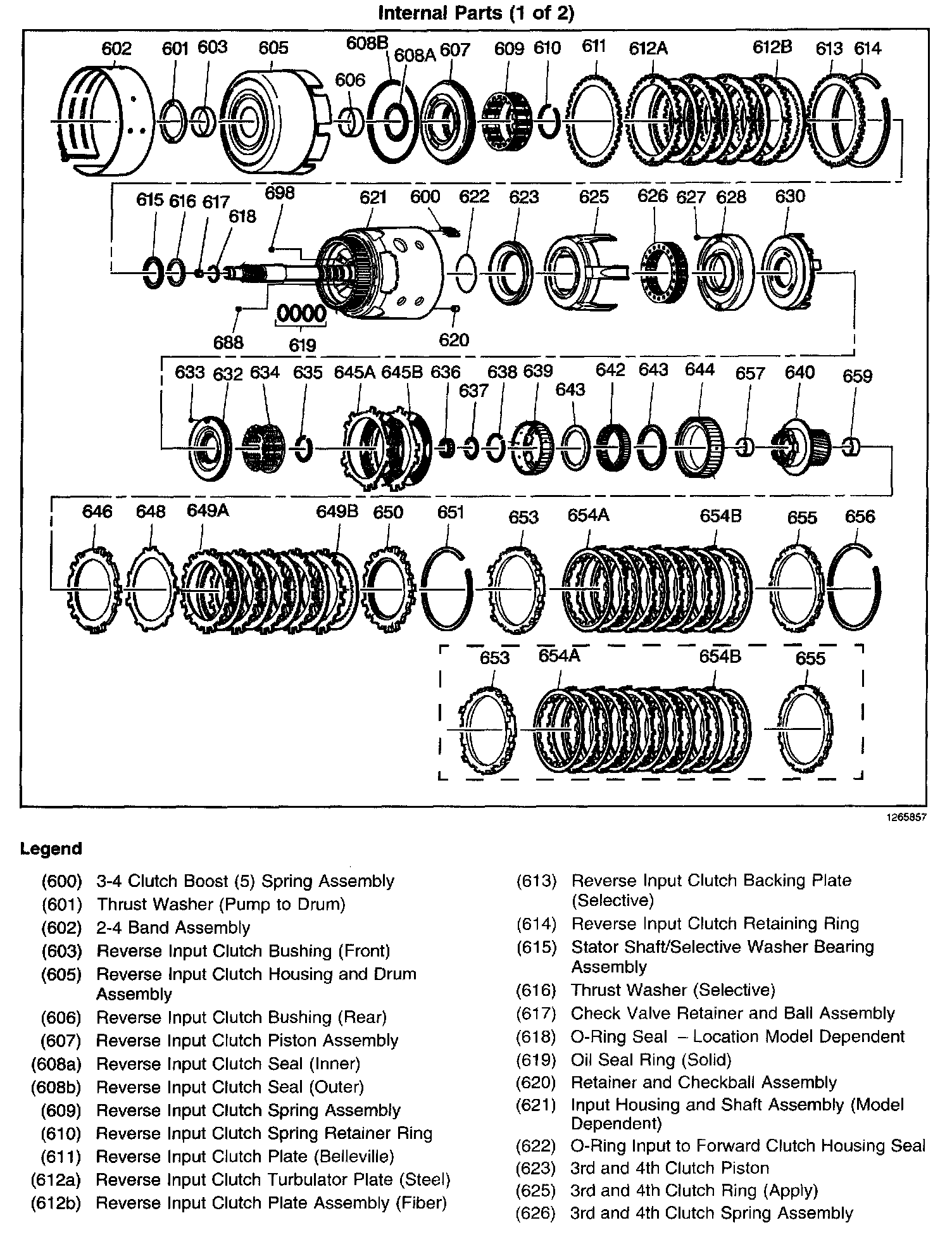

Internal Parts Part 1 (Part 1 Of 2):

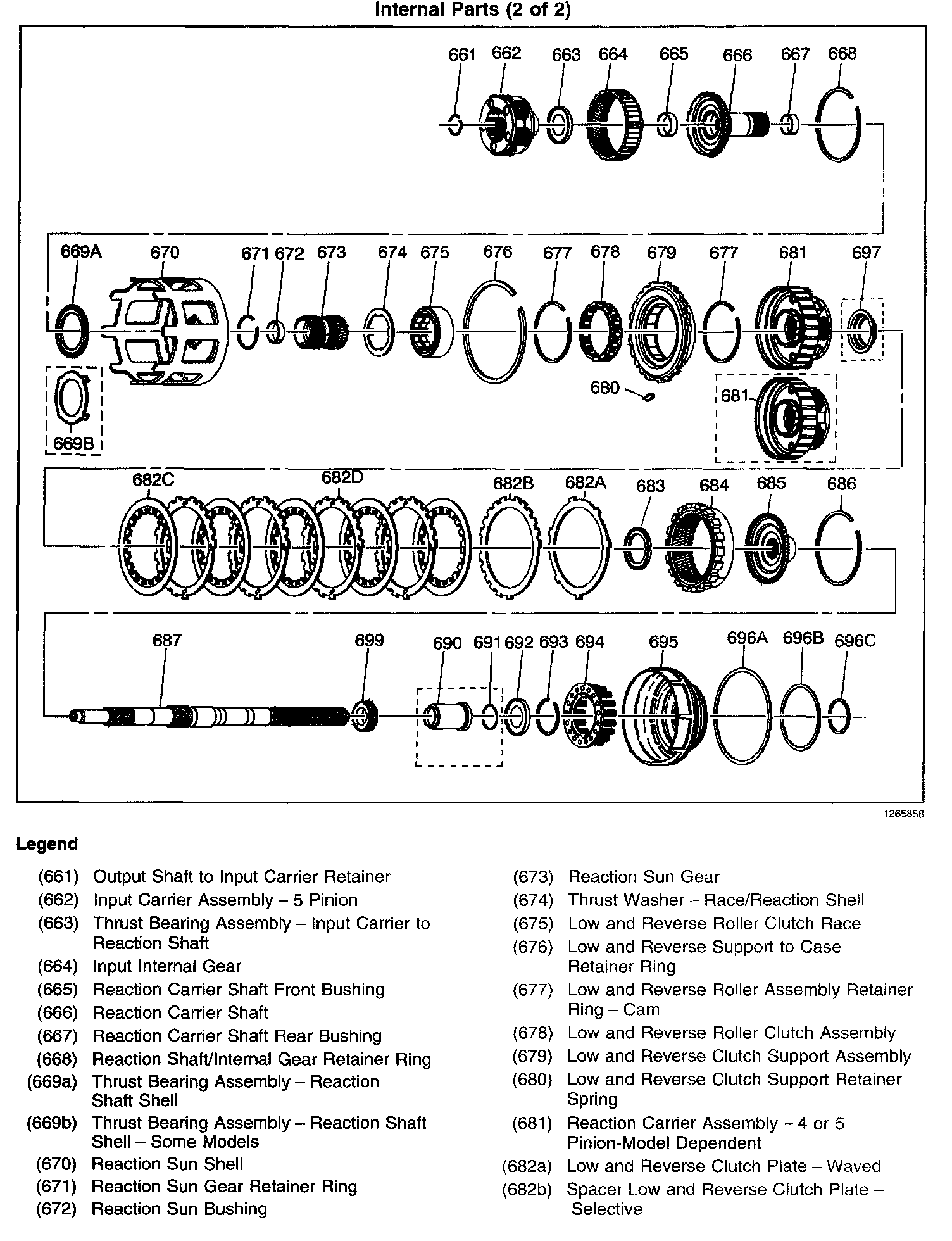

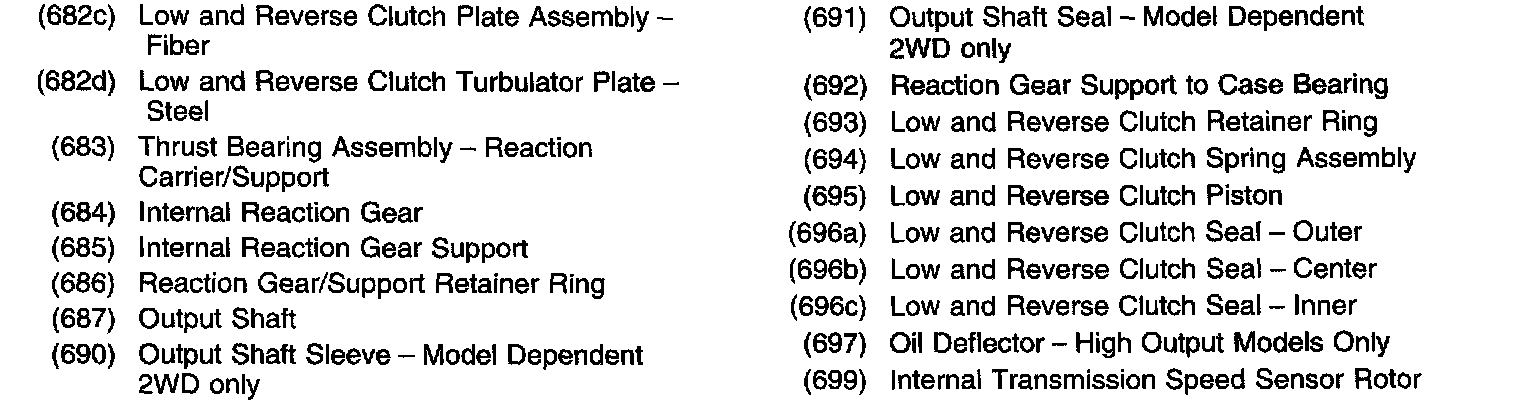

Internal Parts Part 1 (Part 2 Of 2):

Internal Parts Part 2 (Part 1 Of 2):

Internal Parts Part 2 (Part 2 Of 2):
