lemon-mirror
:
Home
>>
Hummer
>>
2004
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Control Valve Body Assembly
Control Valve Body Assembly

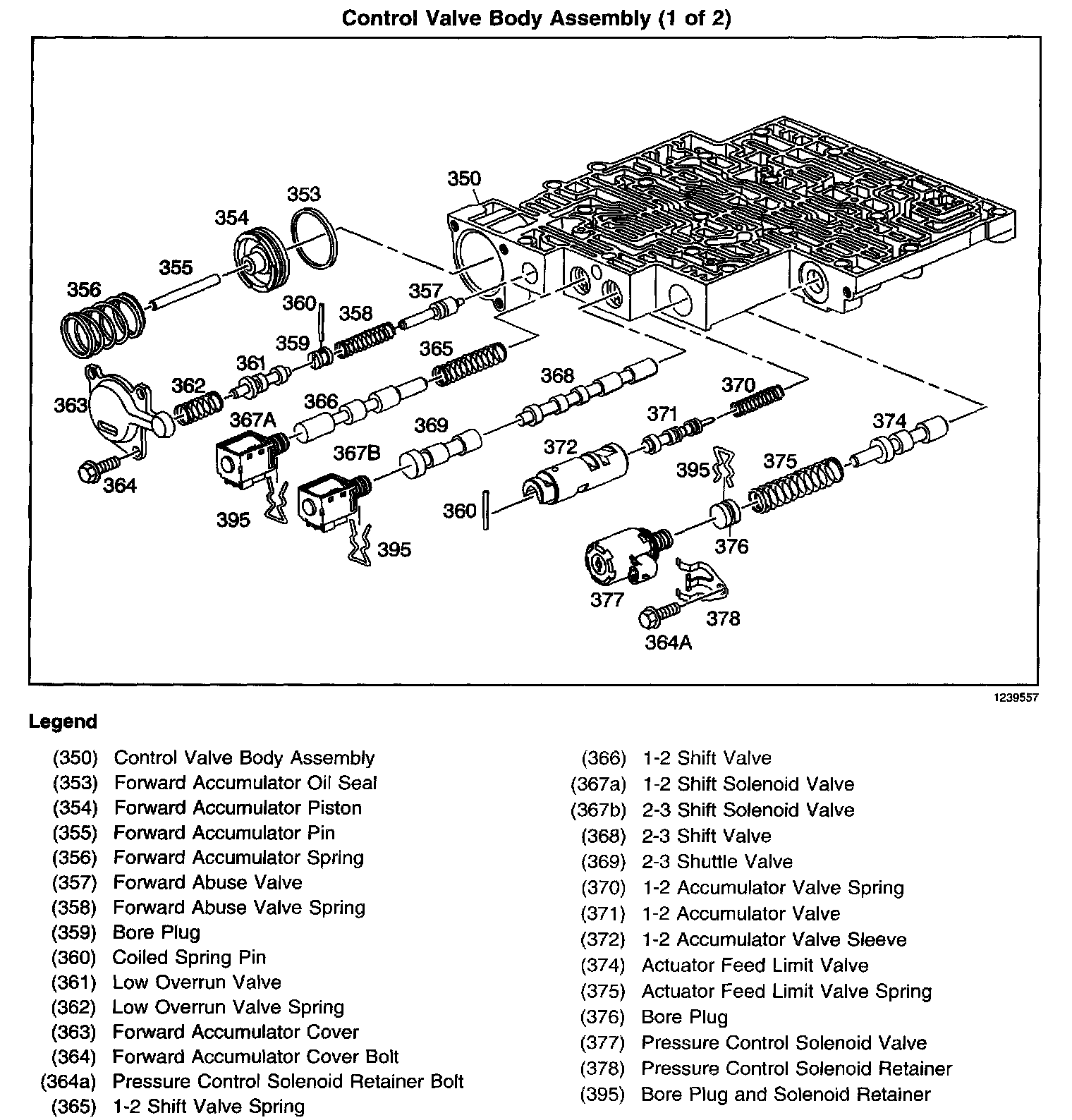

Control Valve Body Assembly Part 1:

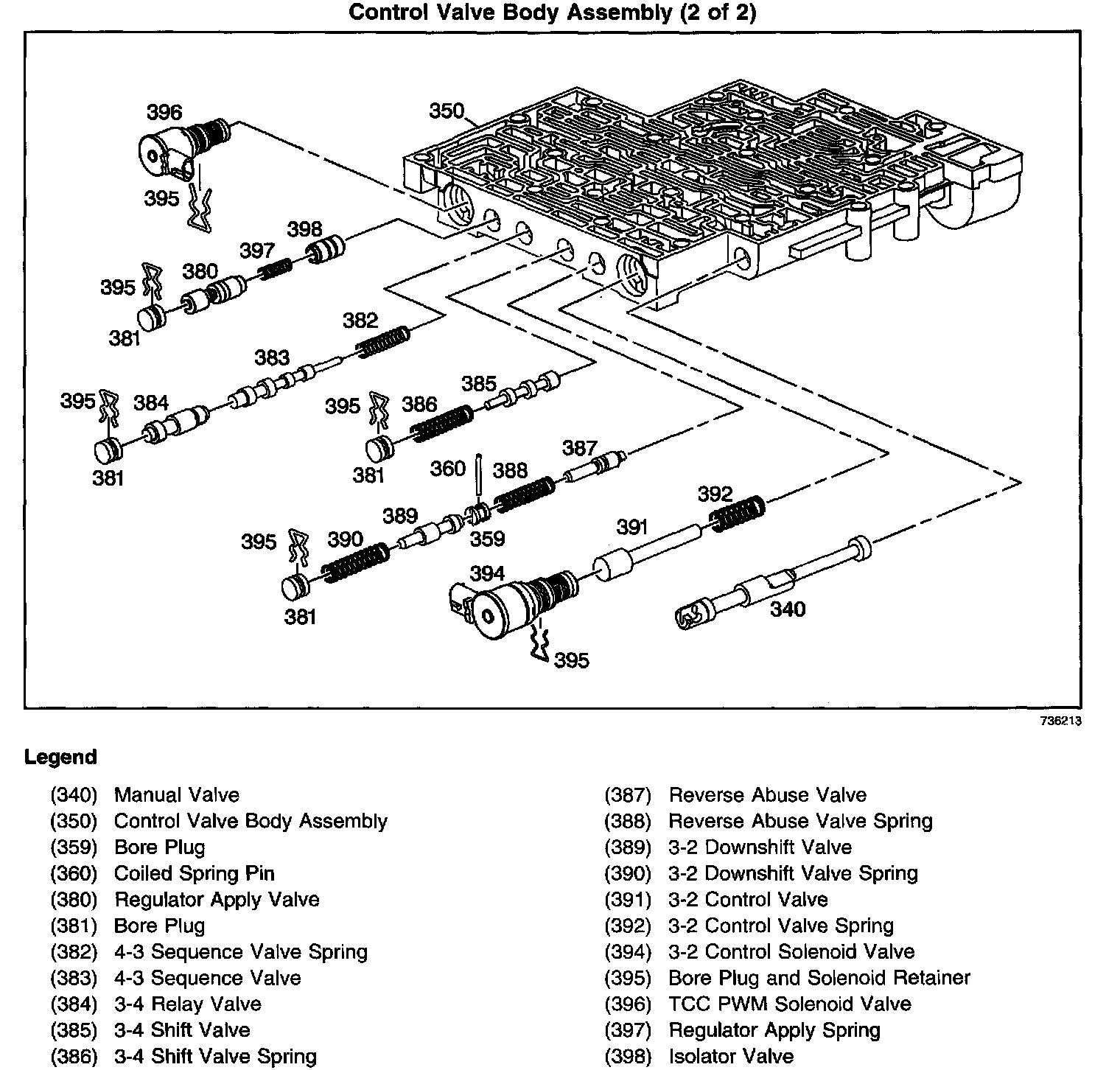

Control Valve Body Assembly Part 2:
