Body Control Systems

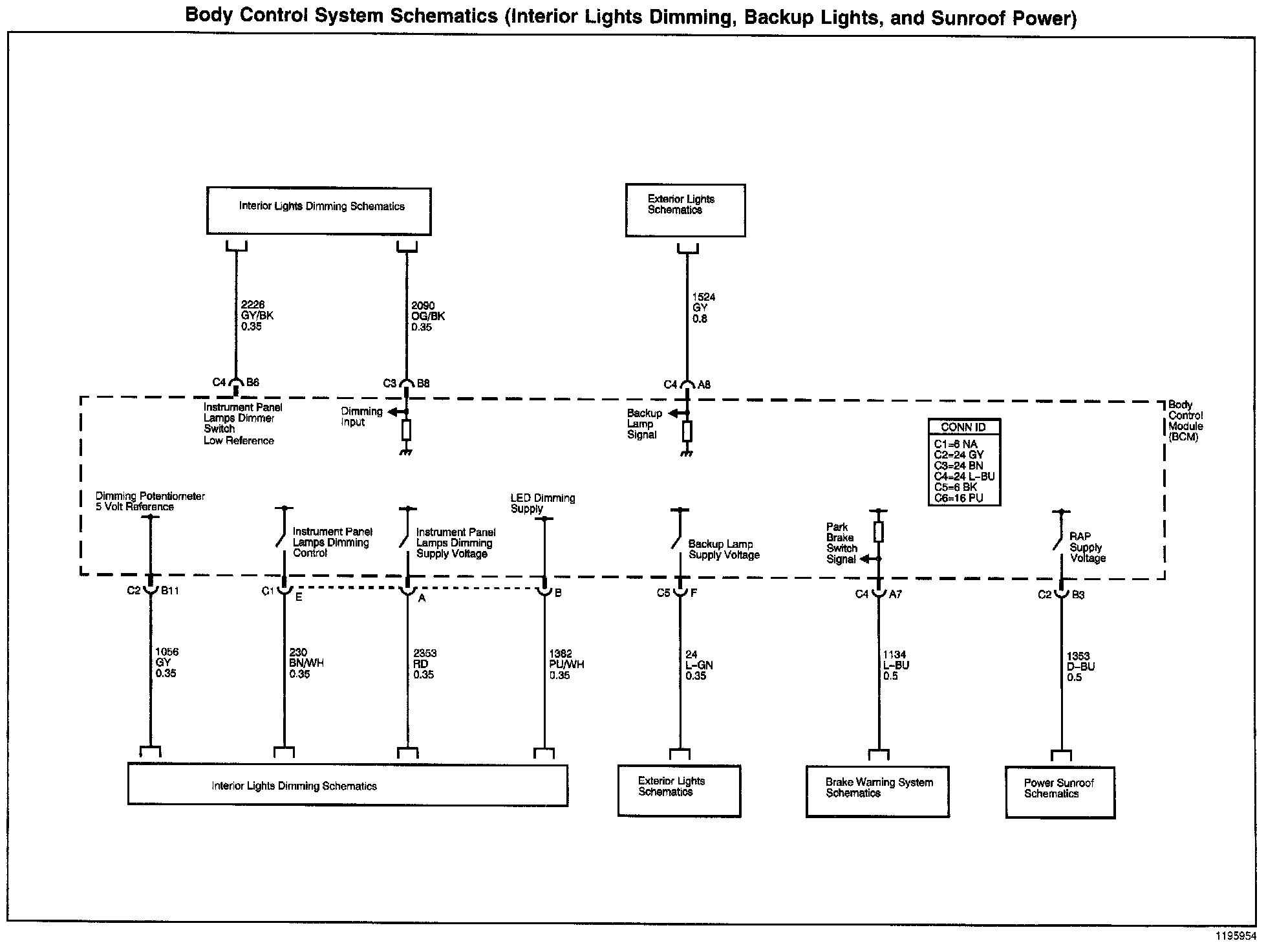

Body Control System Diagram 1:

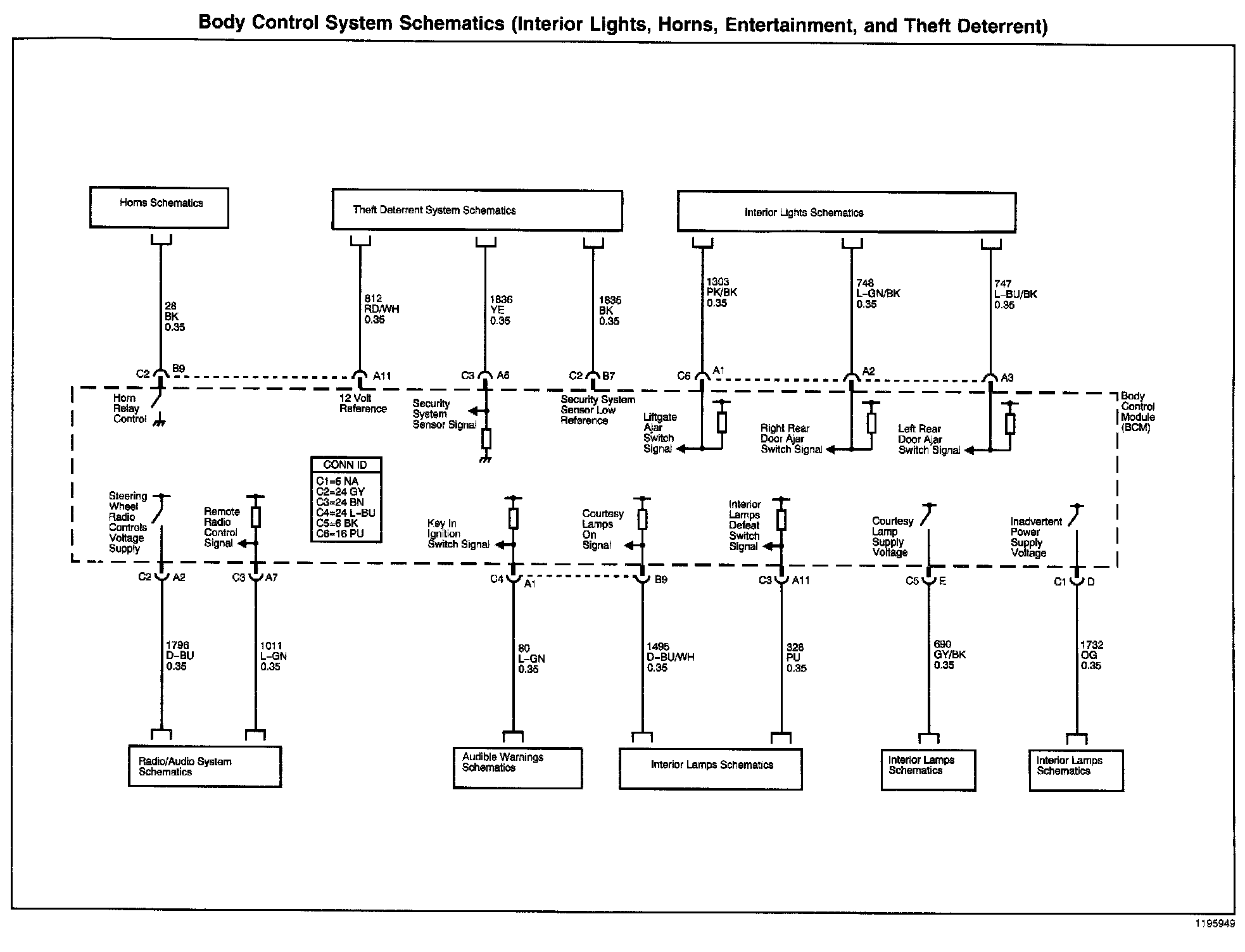

Body Control System Diagram 2:

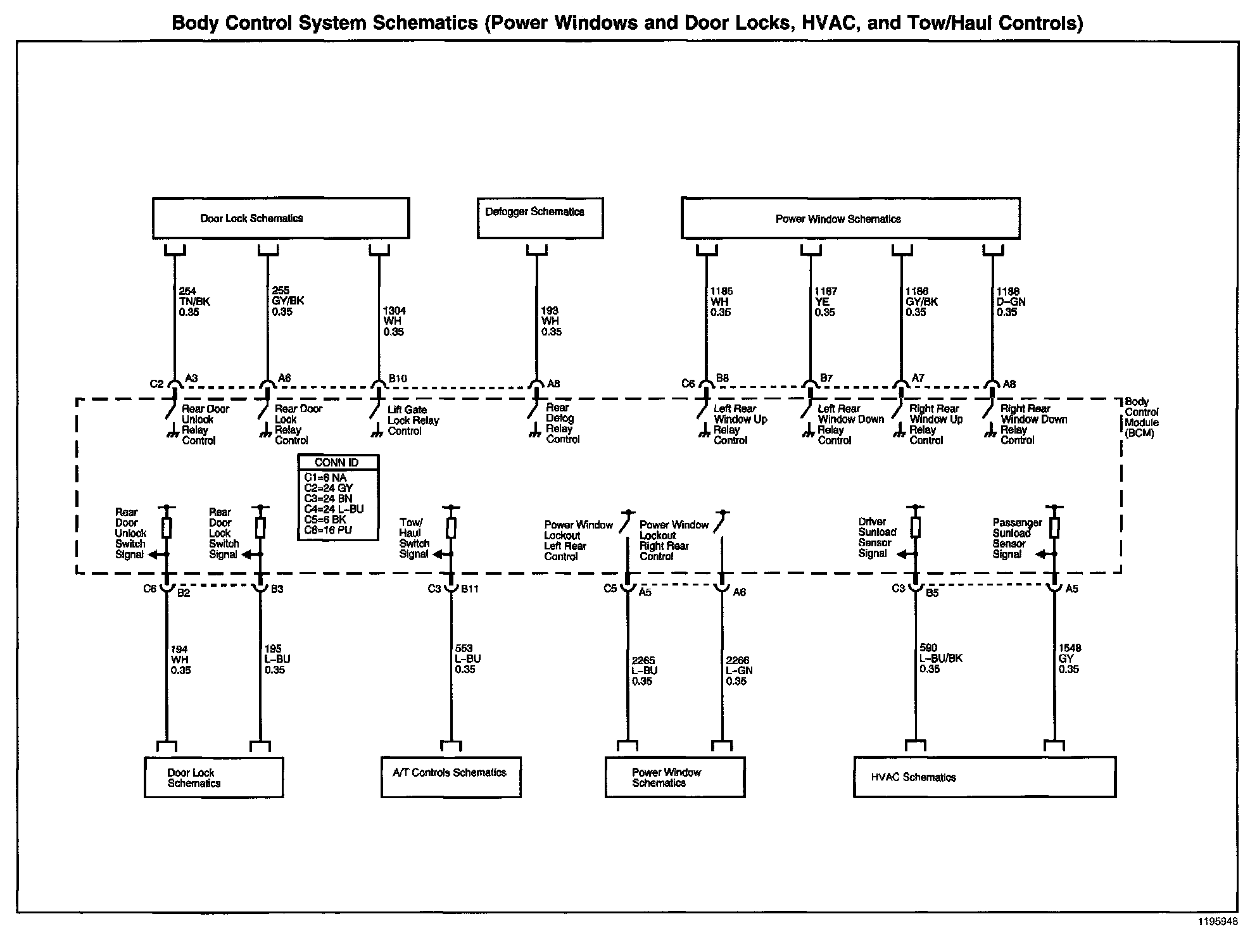

Body Control System Diagram 3:

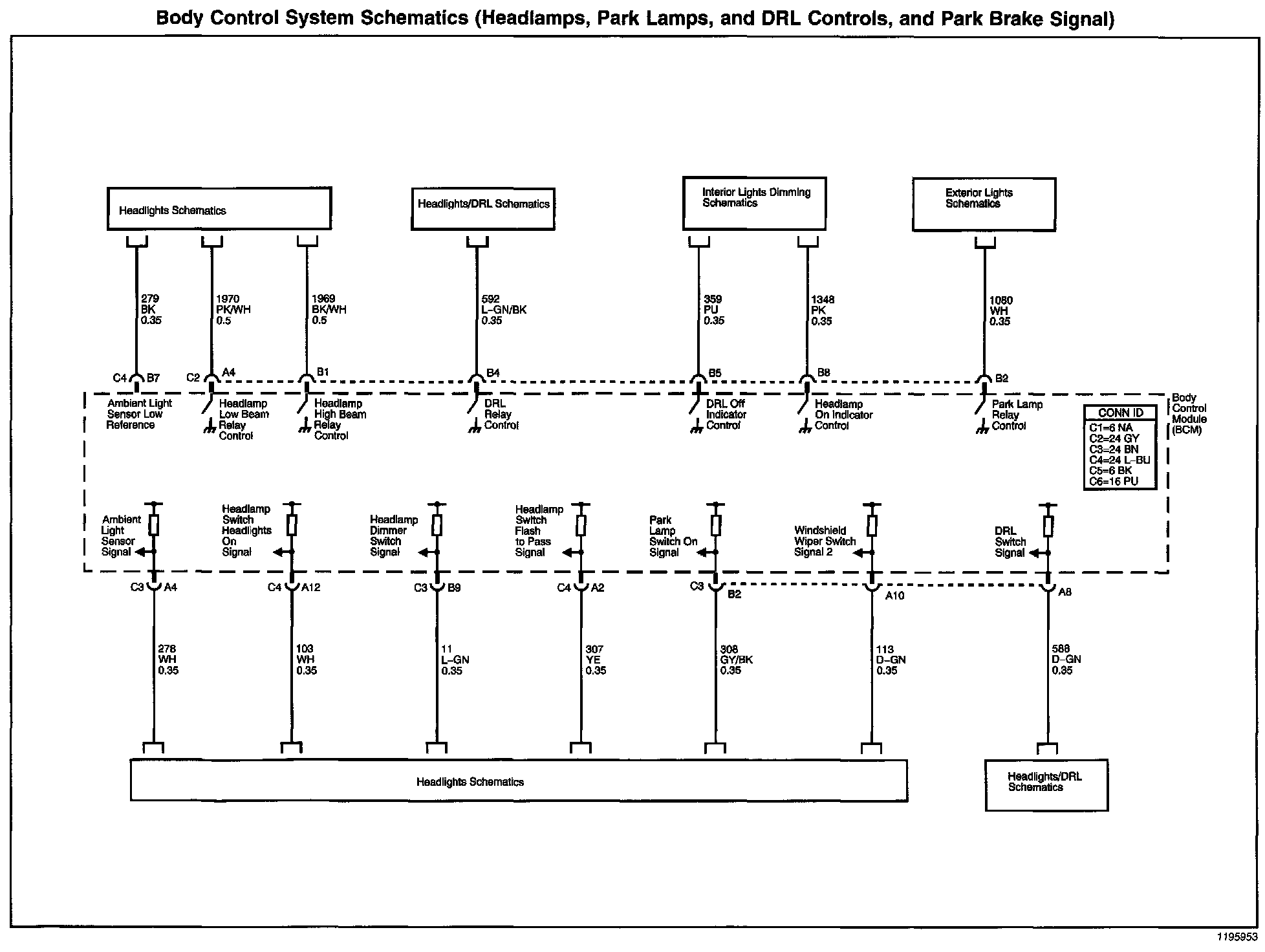

Body Control System Diagram 4:

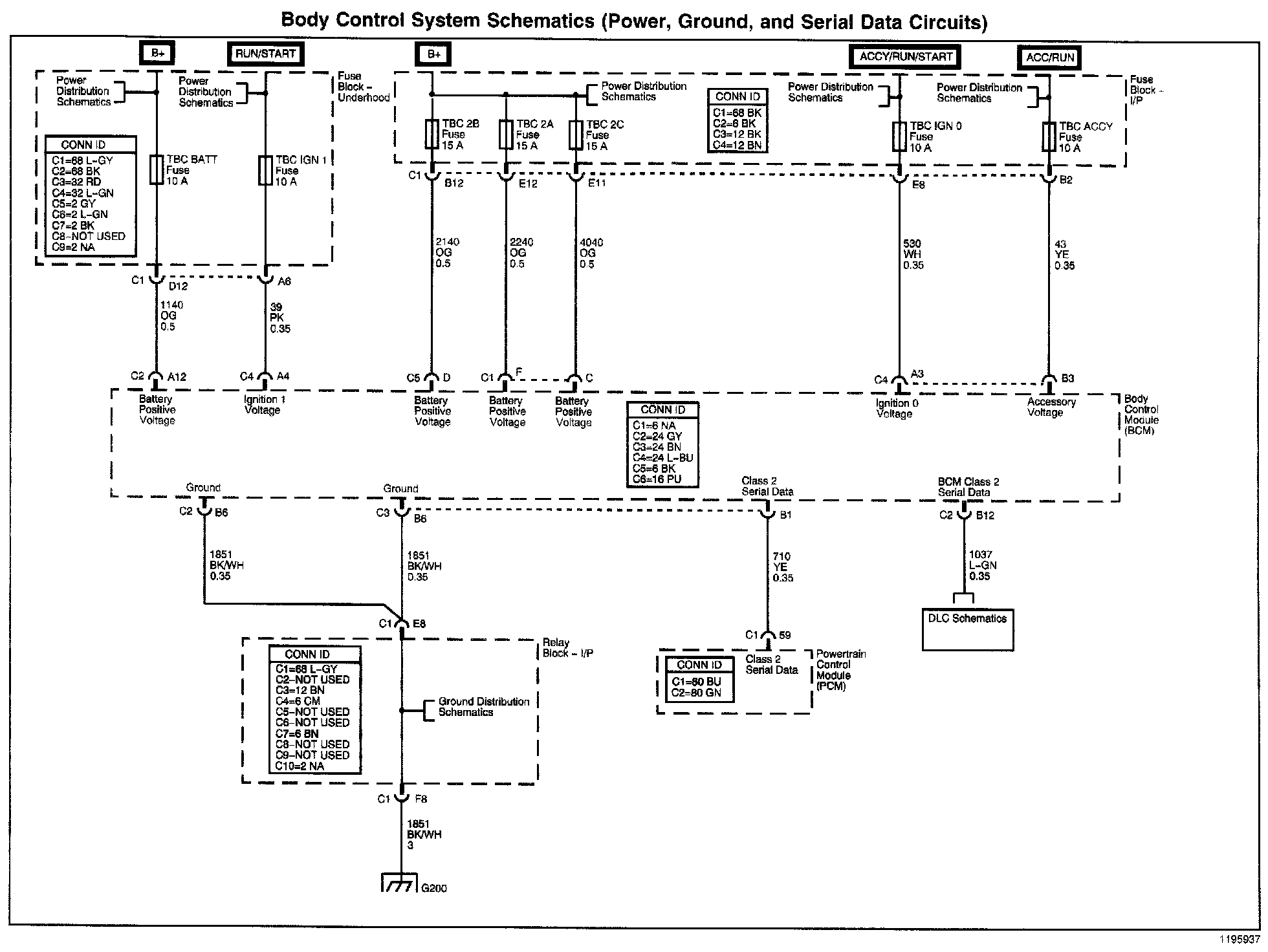

Body Control System Diagram 5:
