Hummer
>>
2004
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
Map Light

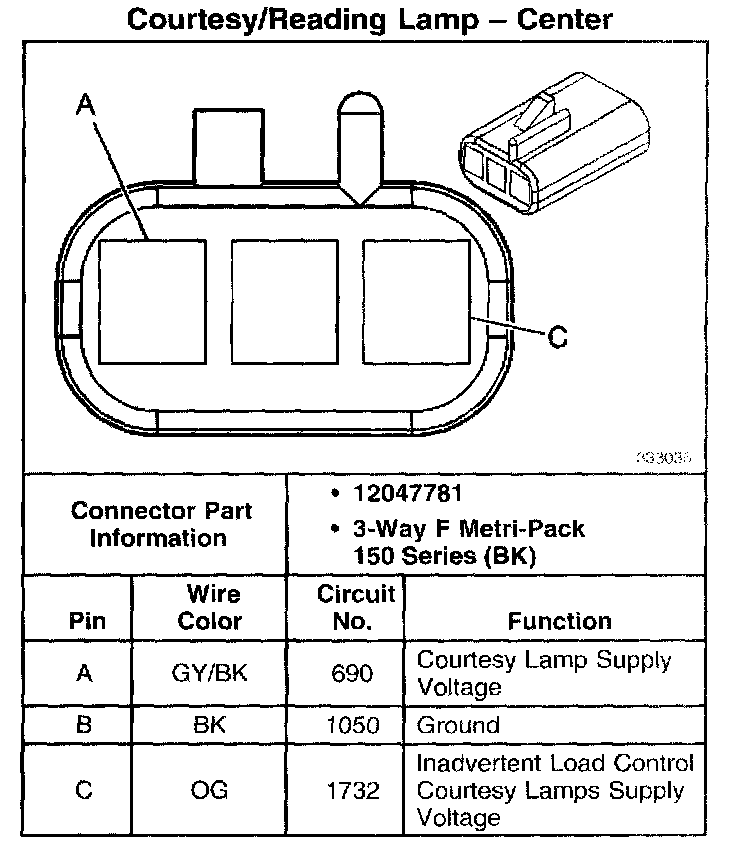

Courtesy/Reading Lamp - Center:

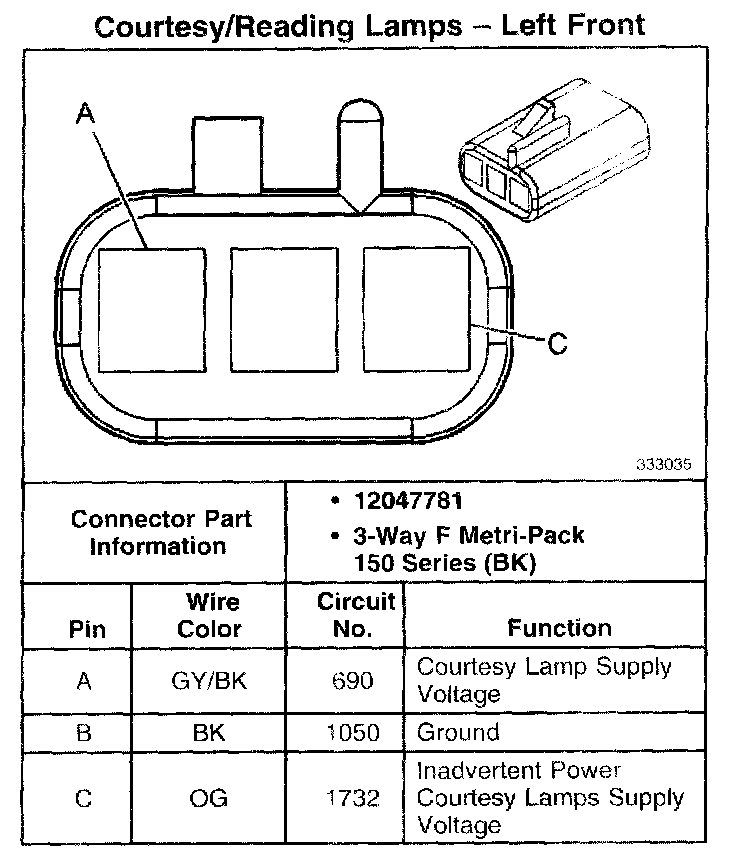

Courtesy/Reading Lamps - Left Front:

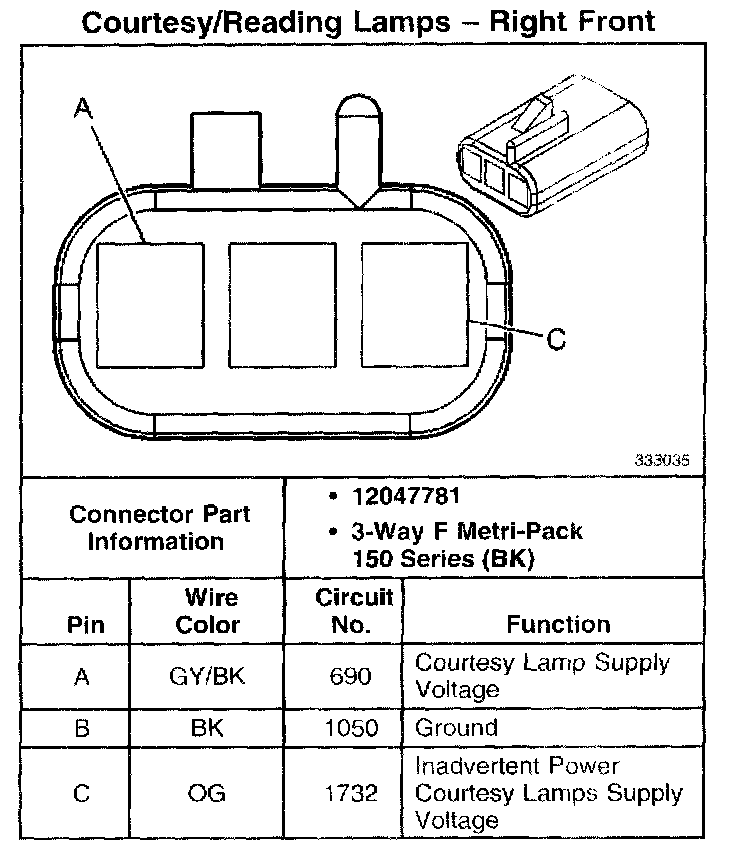

Courtesy/Reading Lamps - Right Front:

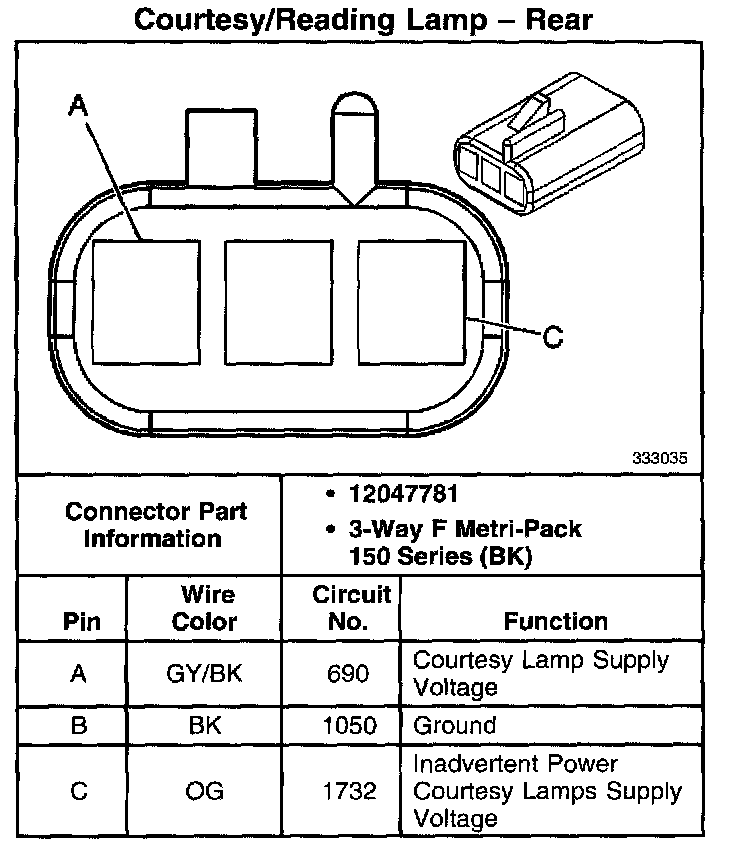

Courtesy/Reading Lamp - Rear:
