Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module (DDM) - C1

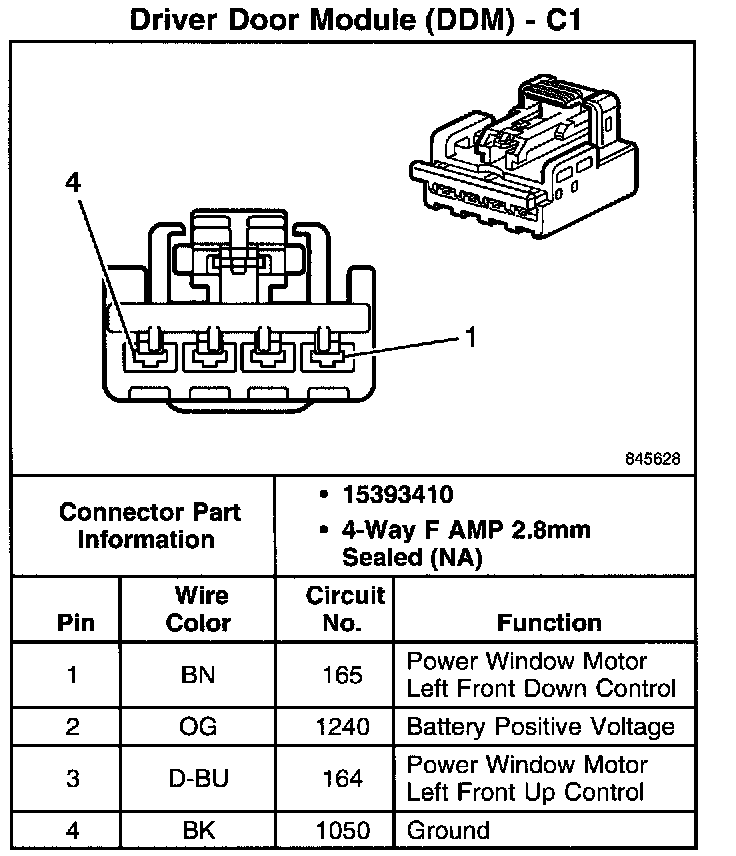

Driver Door Module (DDM) - C1

Driver Door Module (DDM) - C1:

Driver Door Module(DDM)-C1:
