Hummer
>>
2004
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
System Diagram
System Diagram

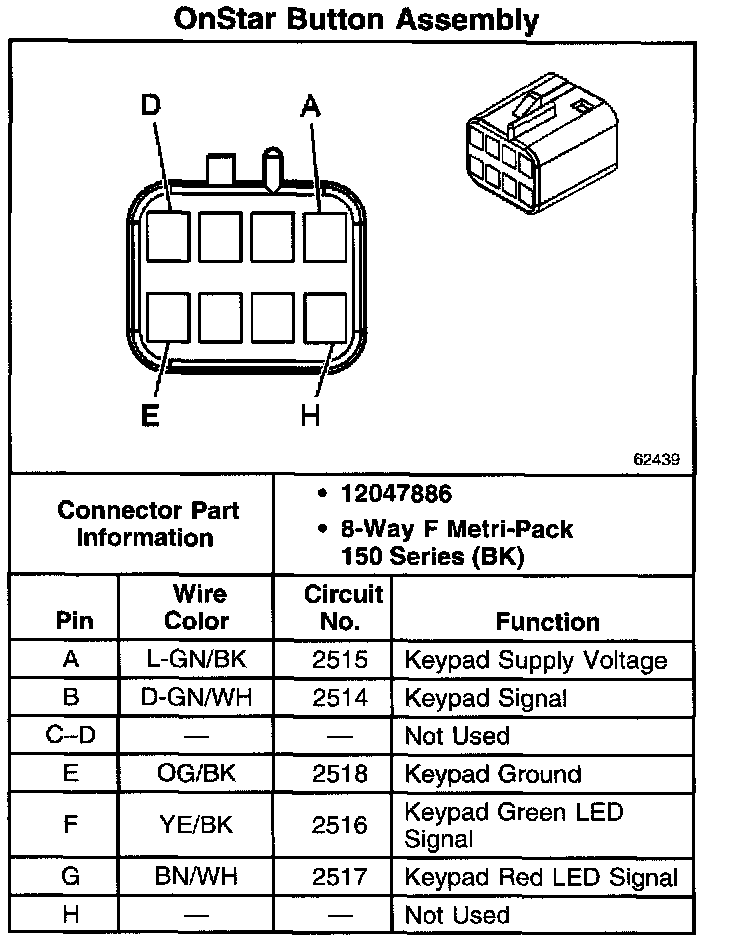

Onstar Button Assembly:

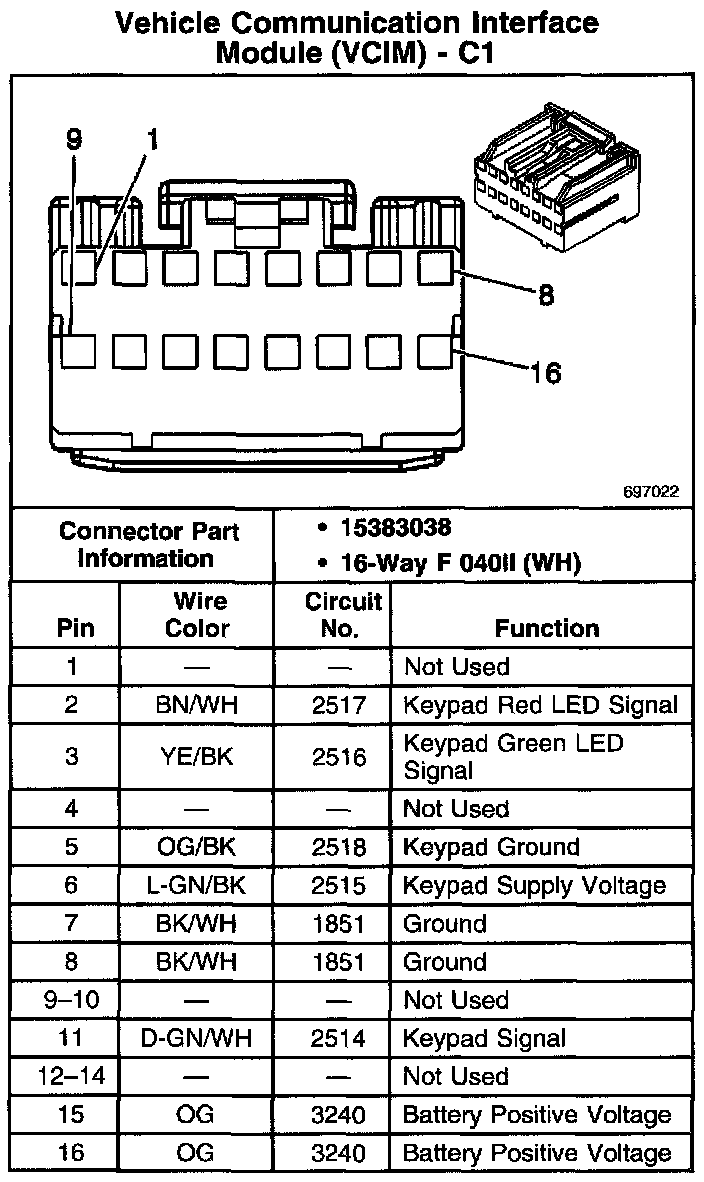

Vehicle Communication Interface Module (VCIM)-c1:

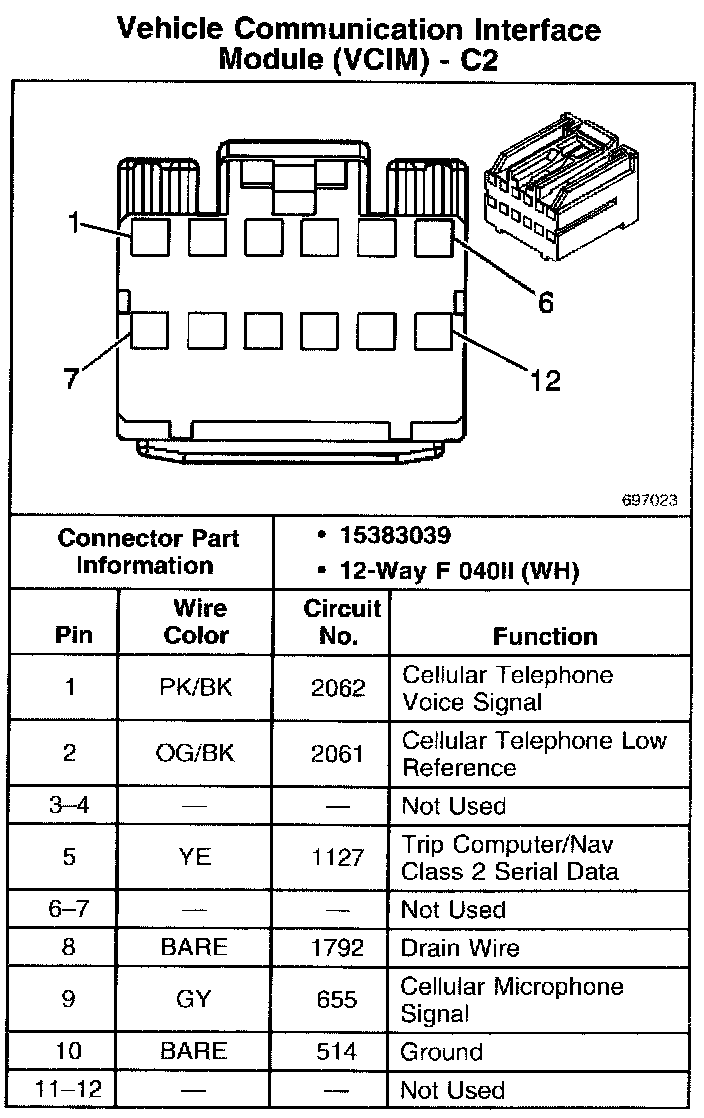

Vehicle Communication Interface Module (VCIM)-c2:
