Body Control Module
>>
Body Control Module (BCM) - C3
Body Control Module (BCM) - C3

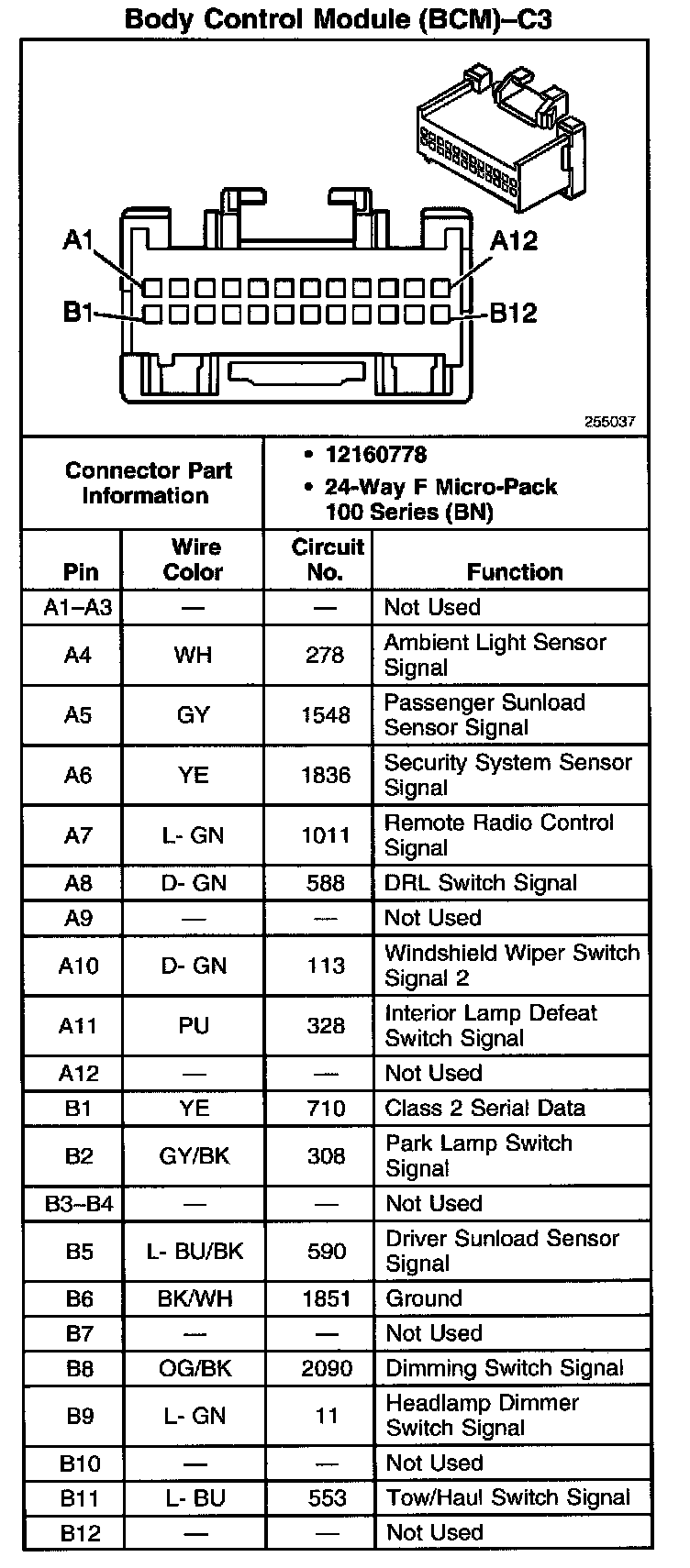

Body Control Module (BCM)-C3:
