Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp

Backup Lamp

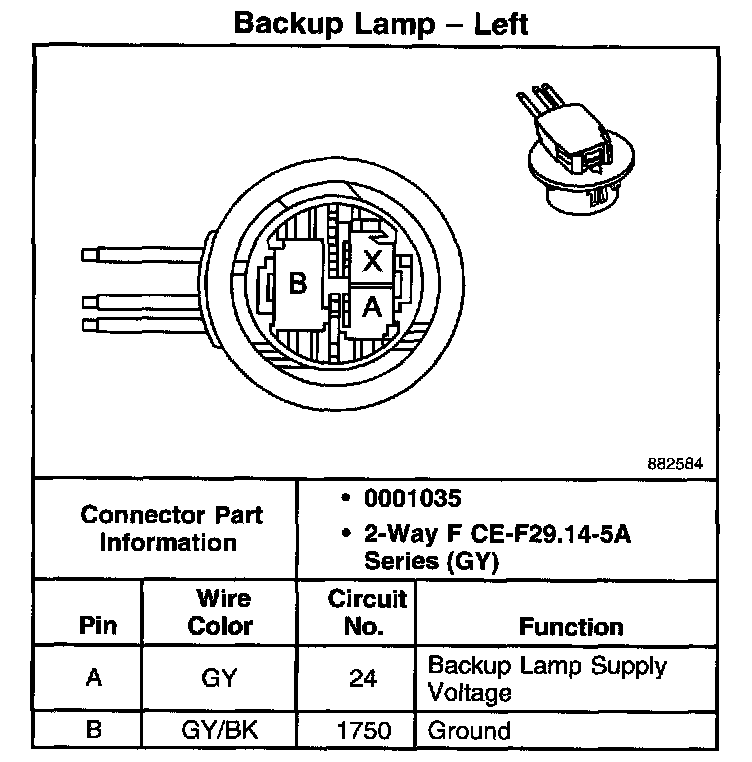

Backup Lamp - Left:

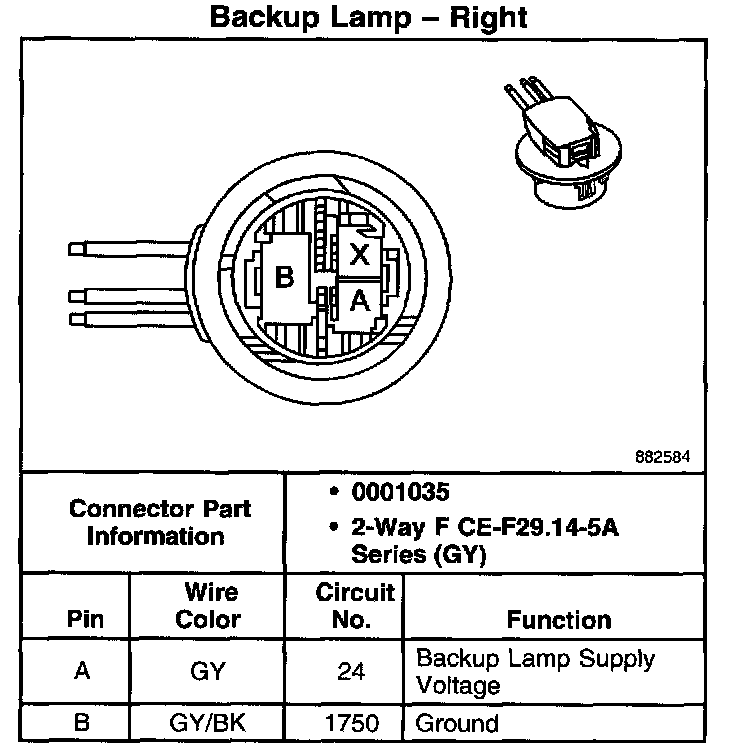

Backup Lamp - Right:
