Control Module: Diagrams

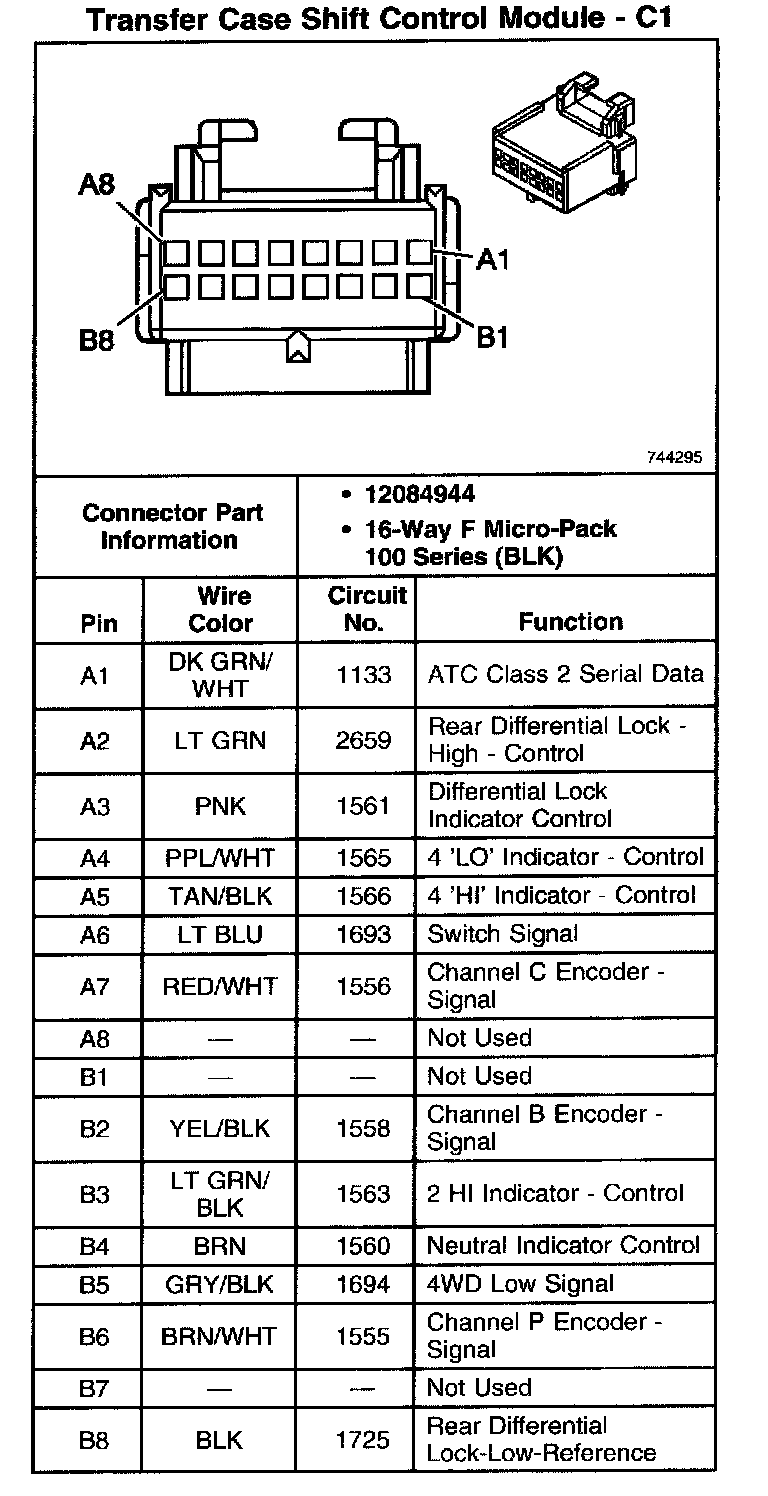

Transfer Case Shift Control Module - C1:

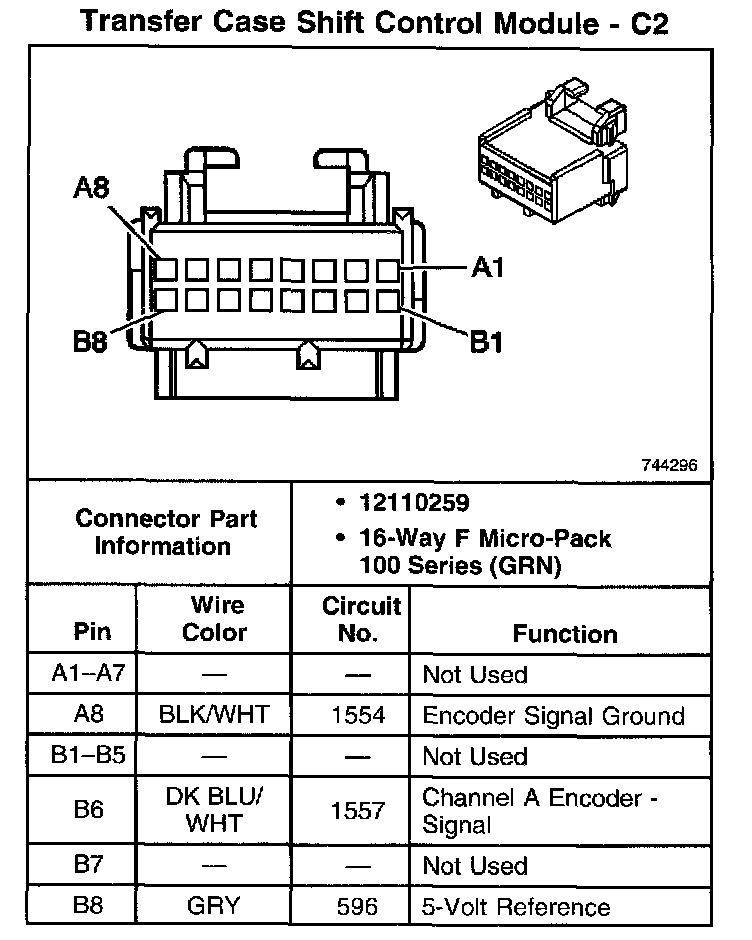

Transfer Case Shift Control Module - C2:

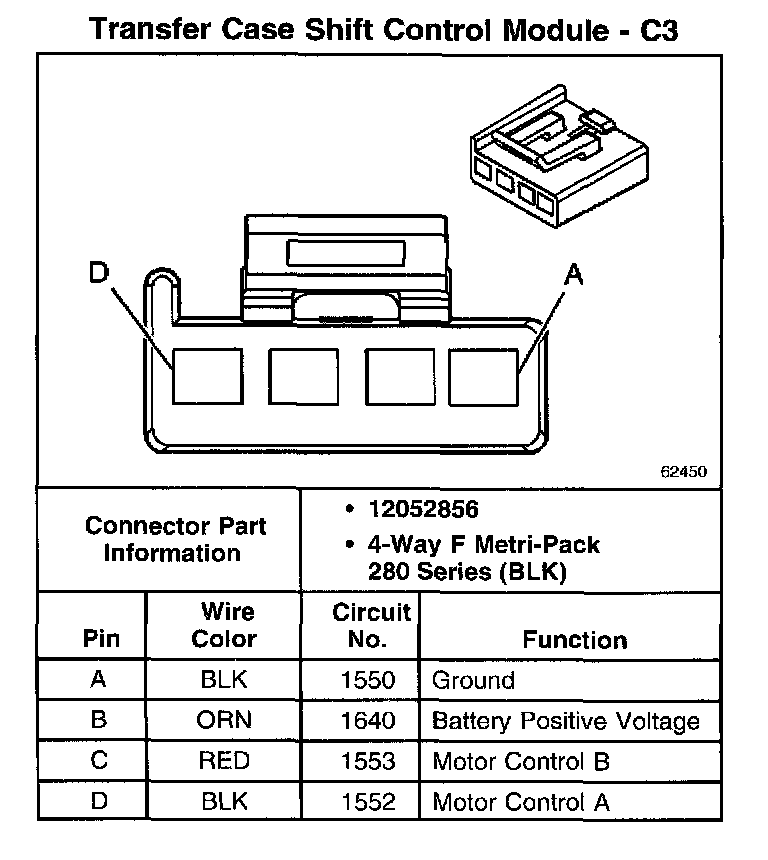

Transfer Case Shift Control Module - C3:
