Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications - Engine Block >> Engine Block - Top View

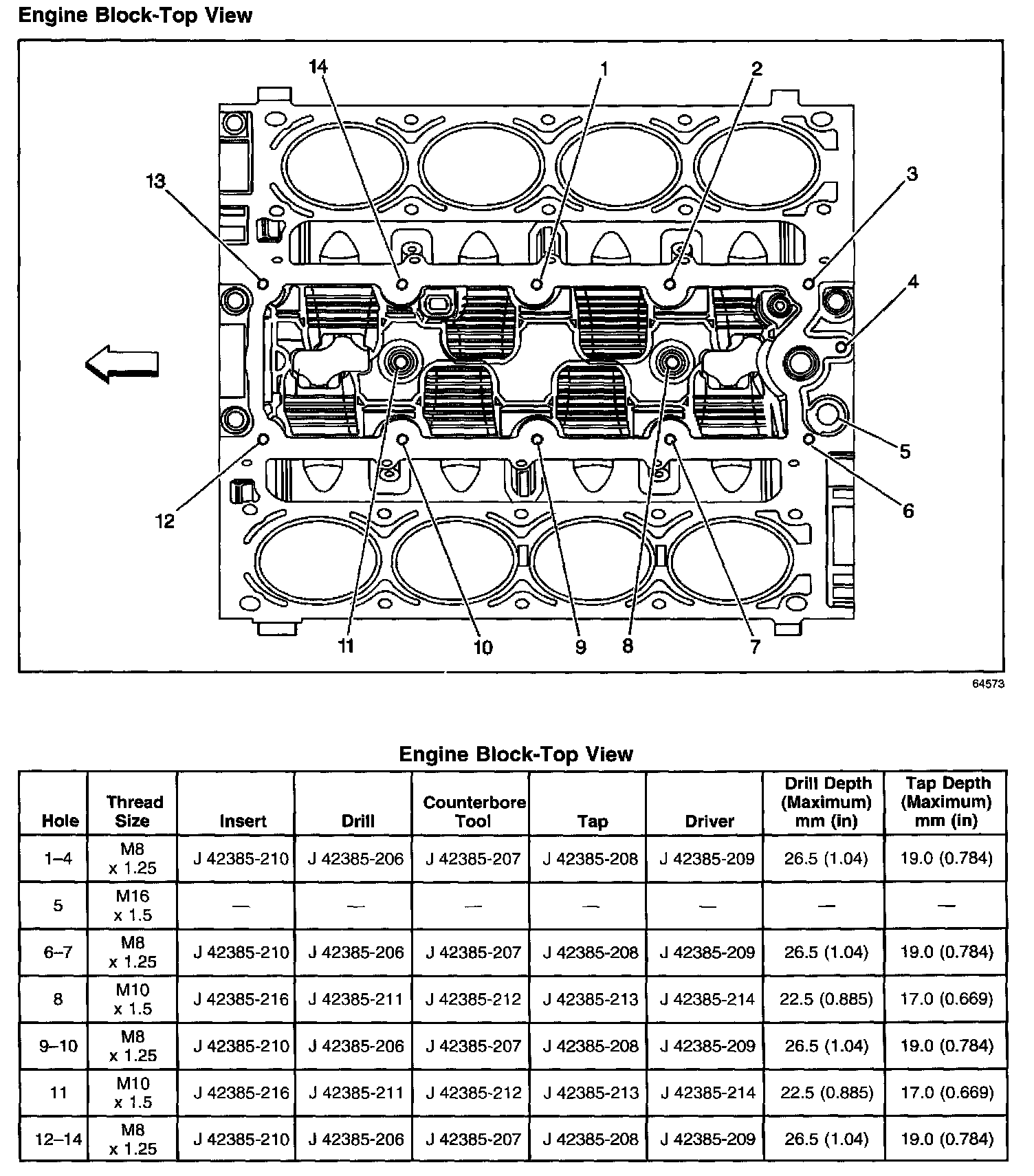

Engine Block - Top View

Engine Block - Top View:
