Engine Block - Left Side View

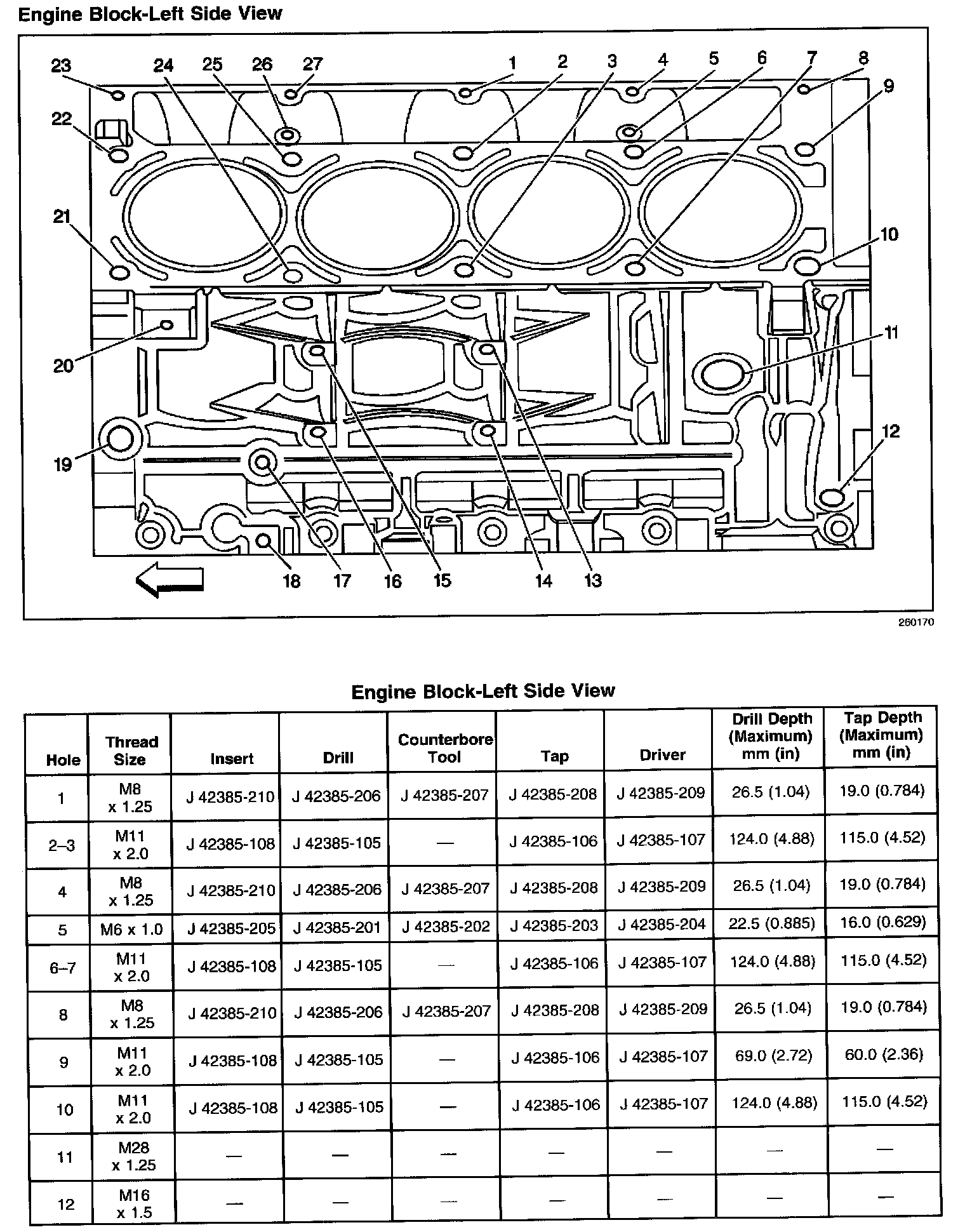

Engine Block - Left Side View Part 1:

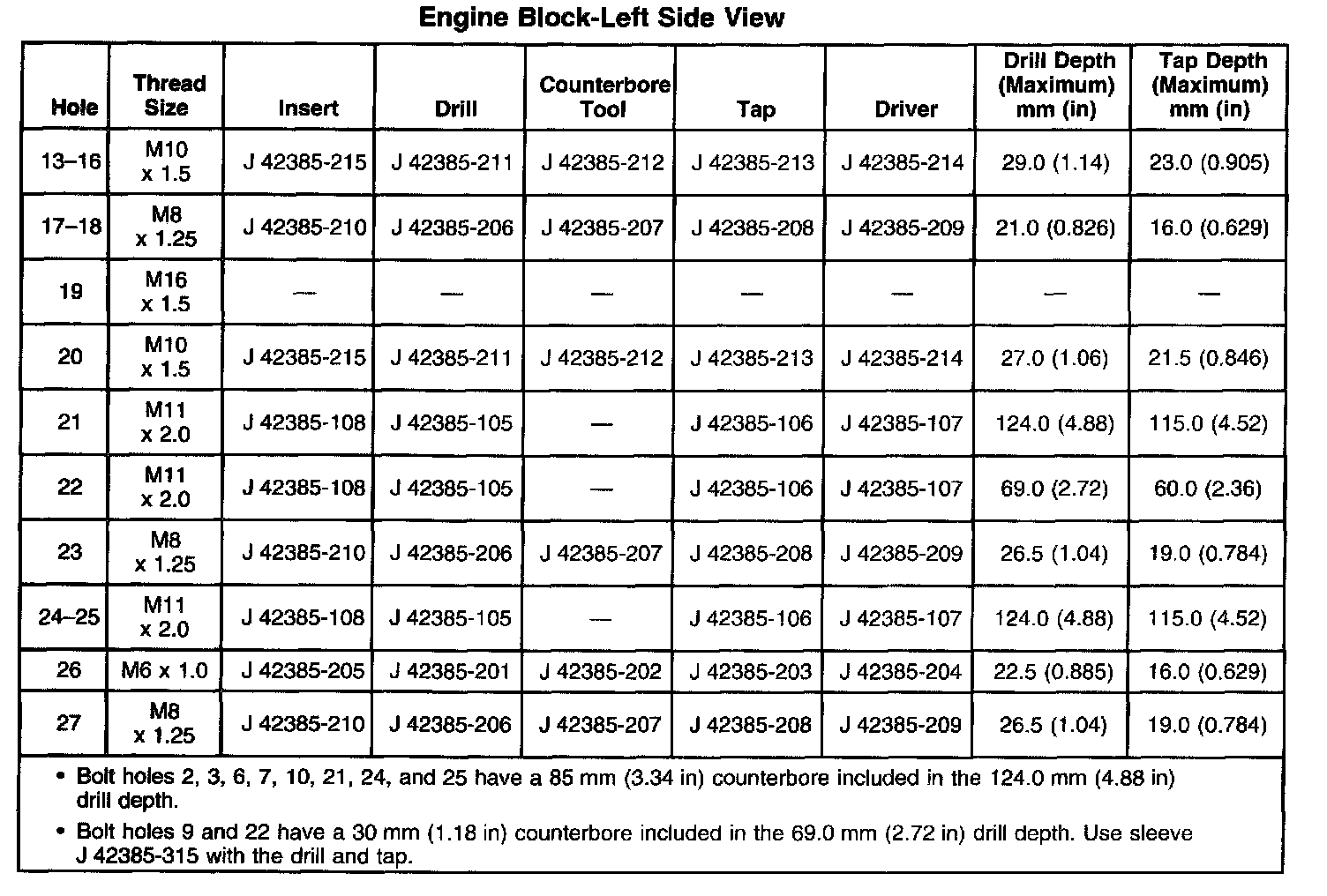

Engine Block - Left Side View Part 2:
