Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Locations >> Splice Locations >> Master Splice List

Master Splice List

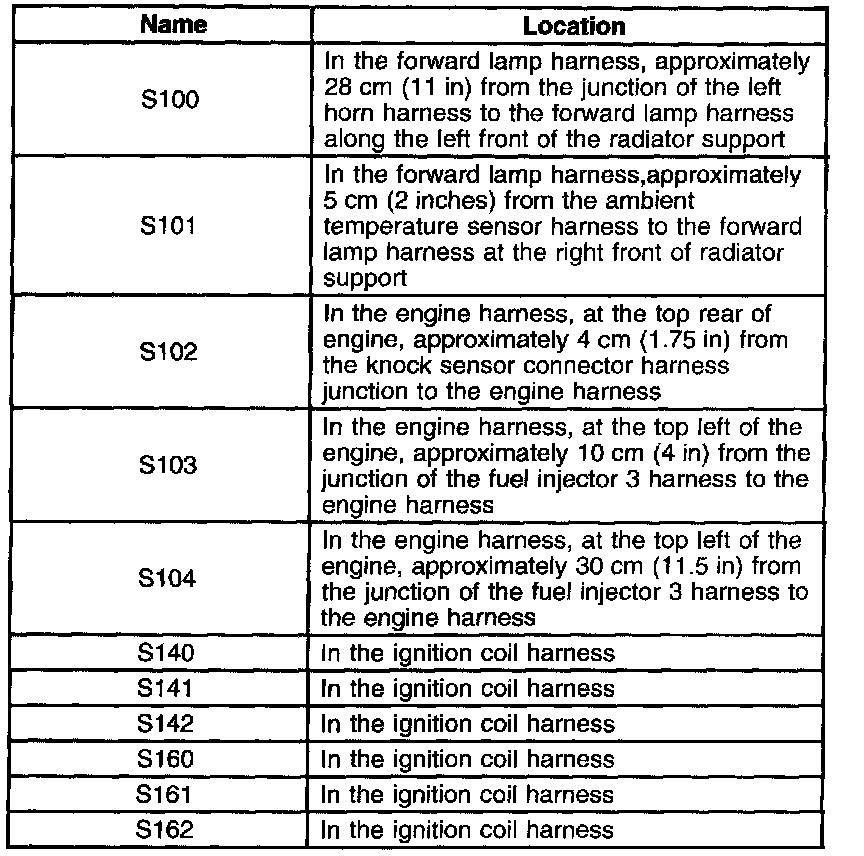

S100 - S162:

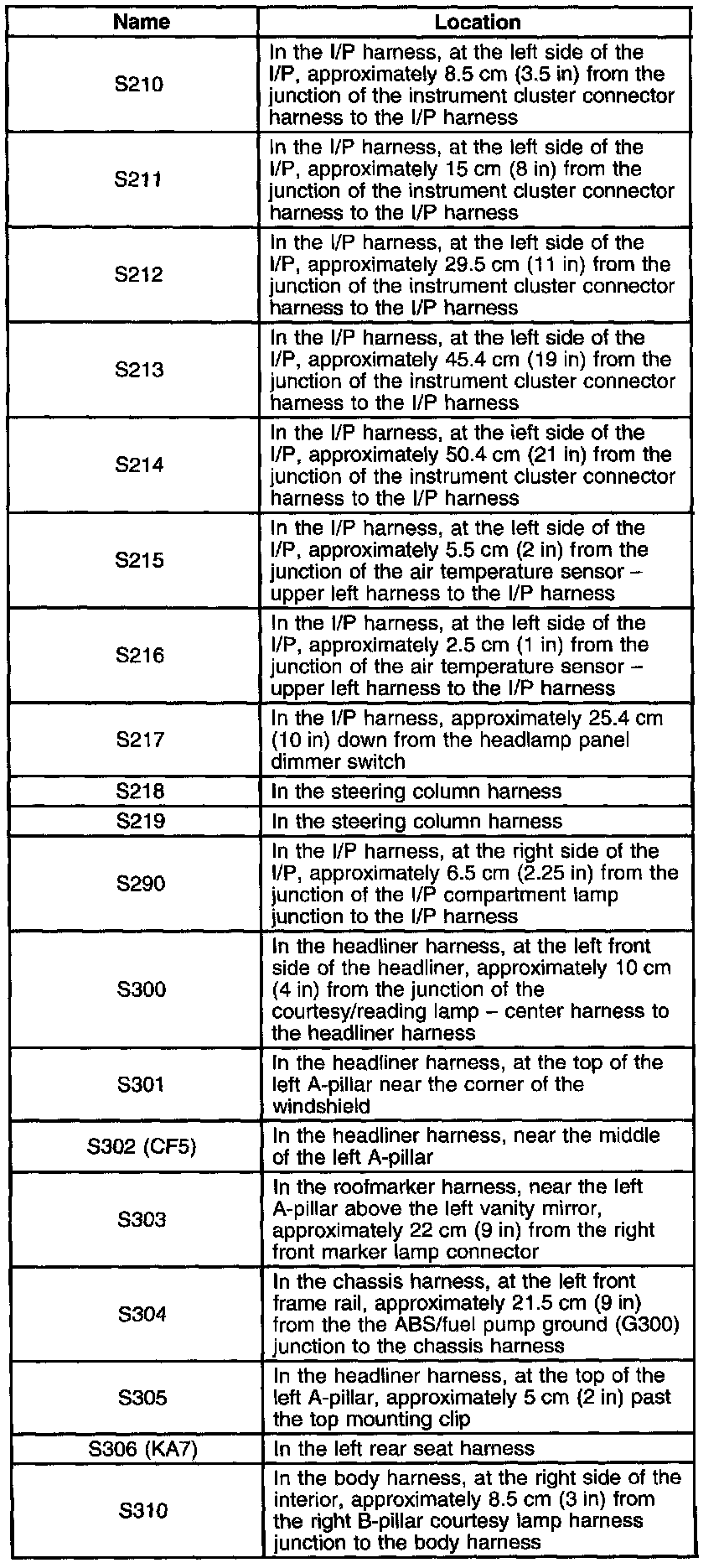

S210 - S310:

S326 - S412:

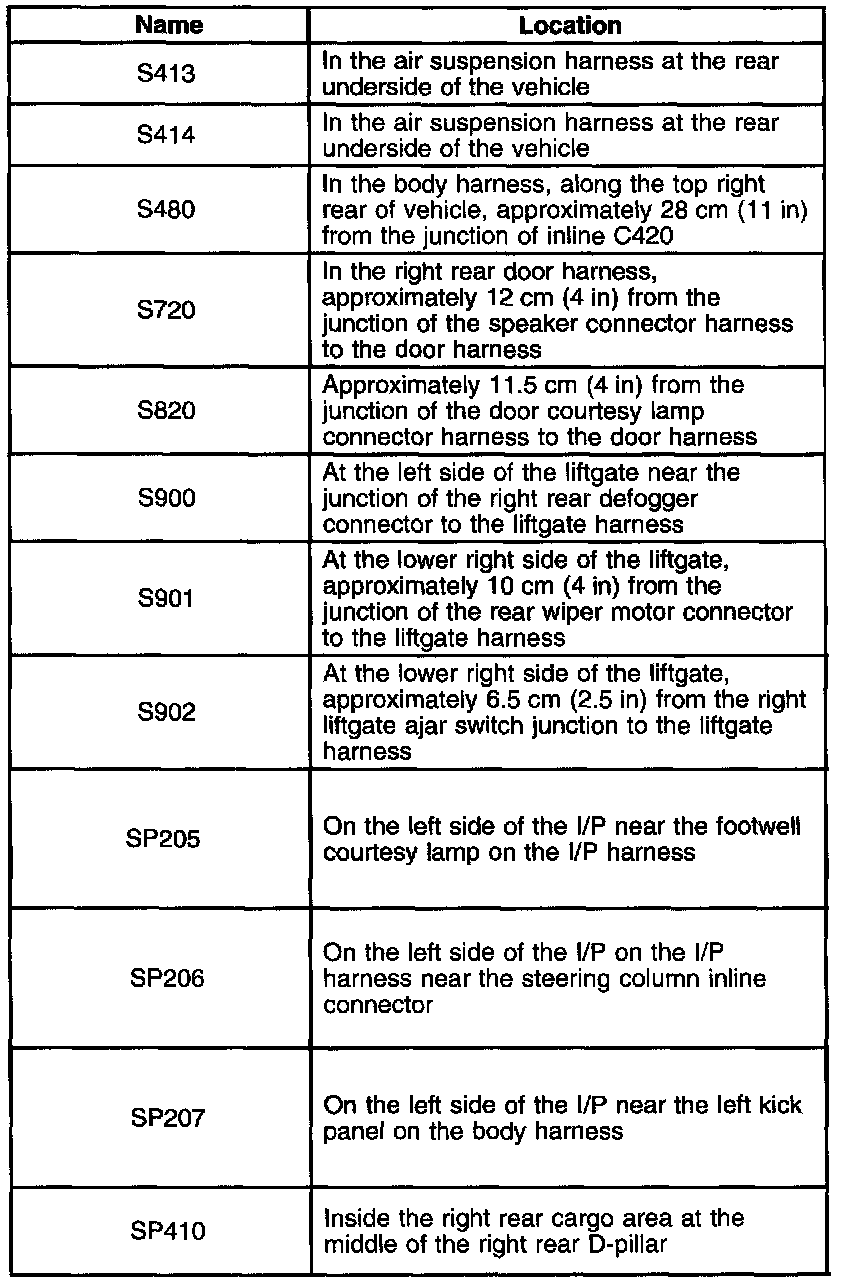

S413 - SP410:
