Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Relay Block Views

Relay Block Views

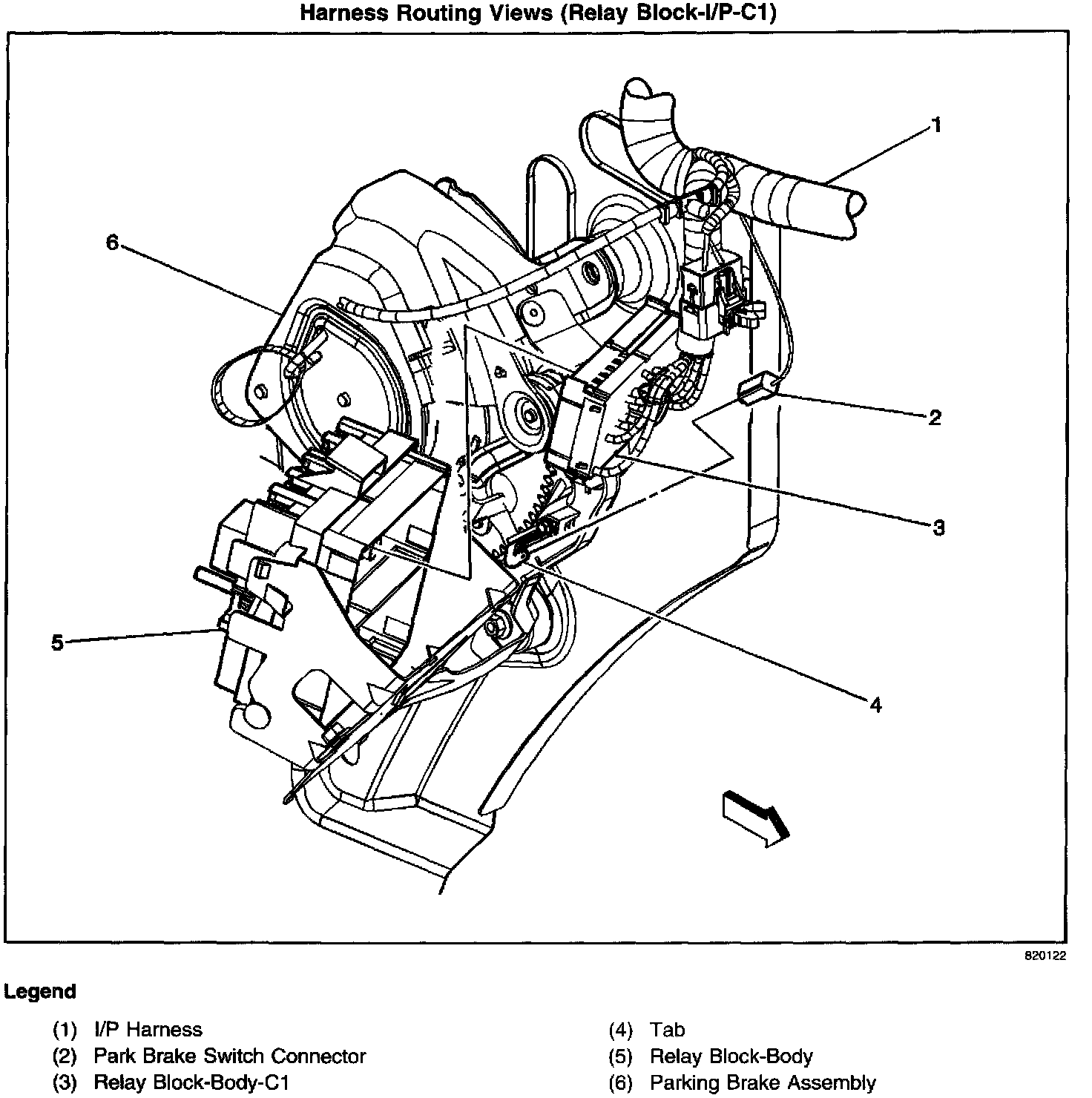

Harness Routing Views (Relay Block - I/P - C1):
