Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Liftgate Views
Liftgate Views

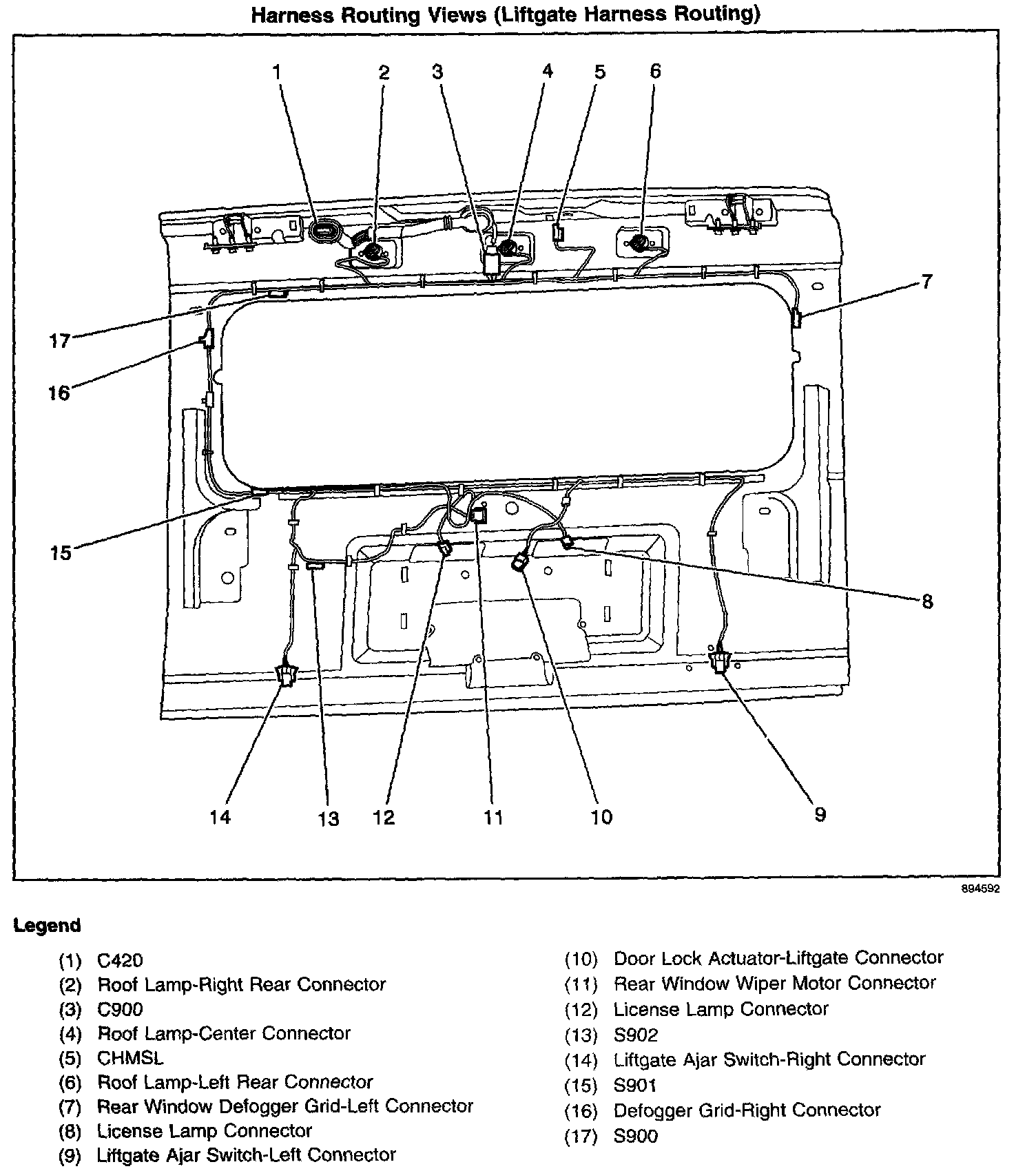

Harness Routing Views (Liftgate Harness Routing):

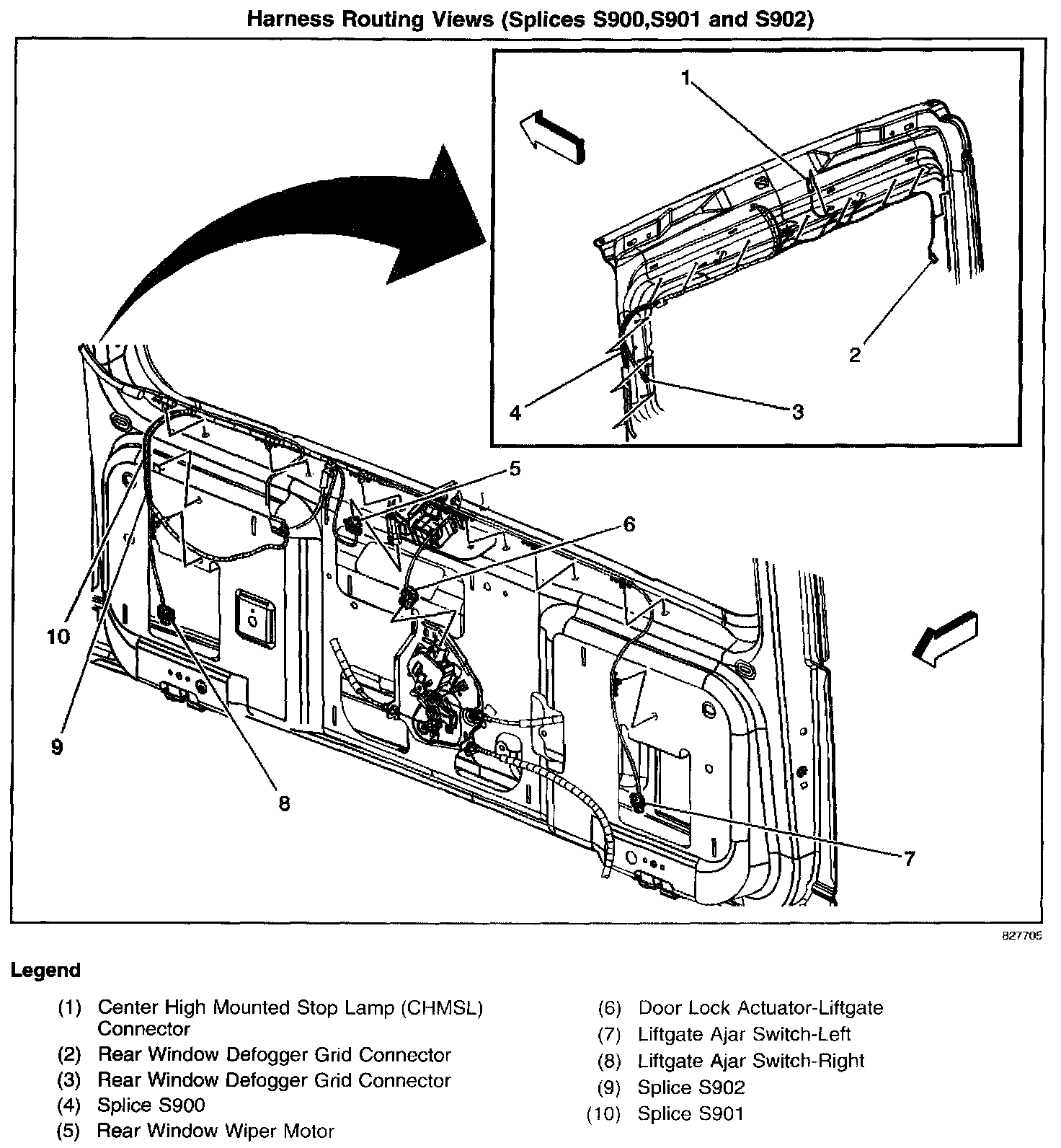

Harness Routing Views (Splices S900, S901 And S902):
