Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Internal Components

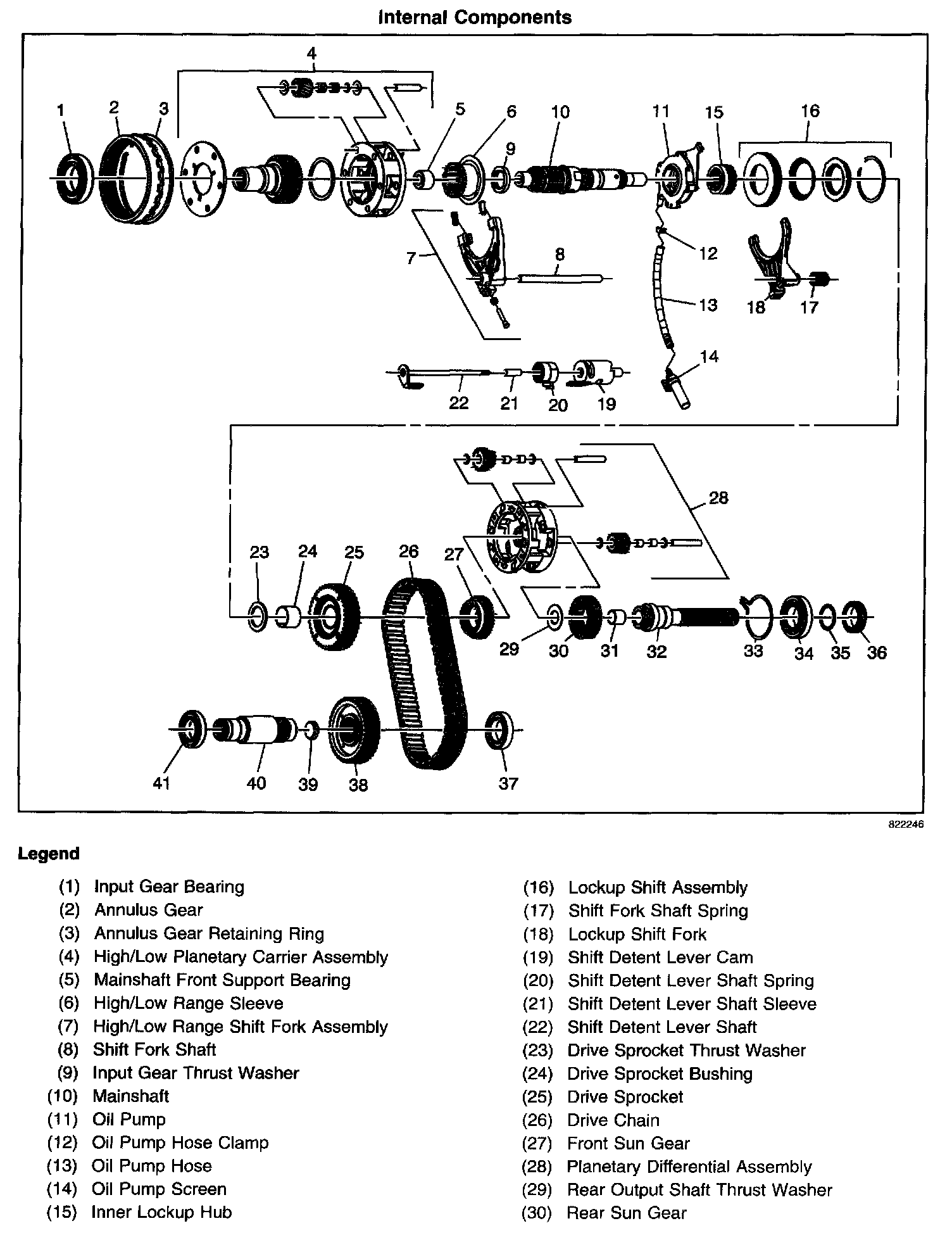

Internal Components

Internal Components Part 1:

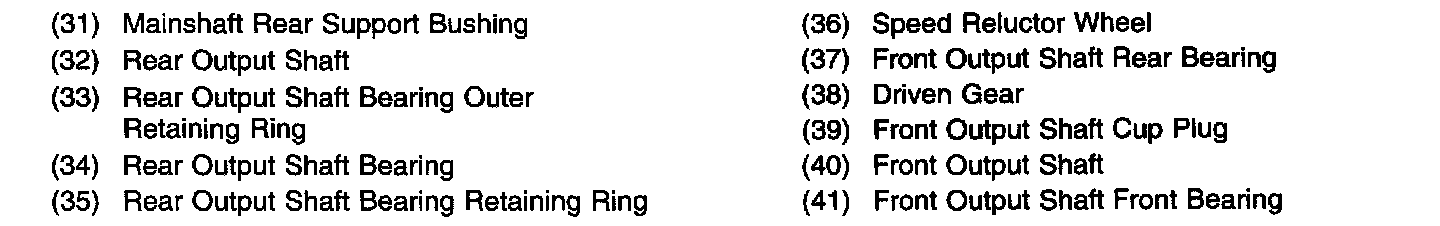

Internal Components Part 2:
